Load-bearing crossbar T5050D-6S

SKU: 2836770

EAN: 7070695004280 Weight: 106.5kg Unit: PSC

Load-bearing crossbar. 2-pole.
Pole distance 5m, phase distanse 5m.
Twin pole clamp. Oblong hole distance 280mm.

Product Added to Quote Successfully. - View Quote ›

Download documents:

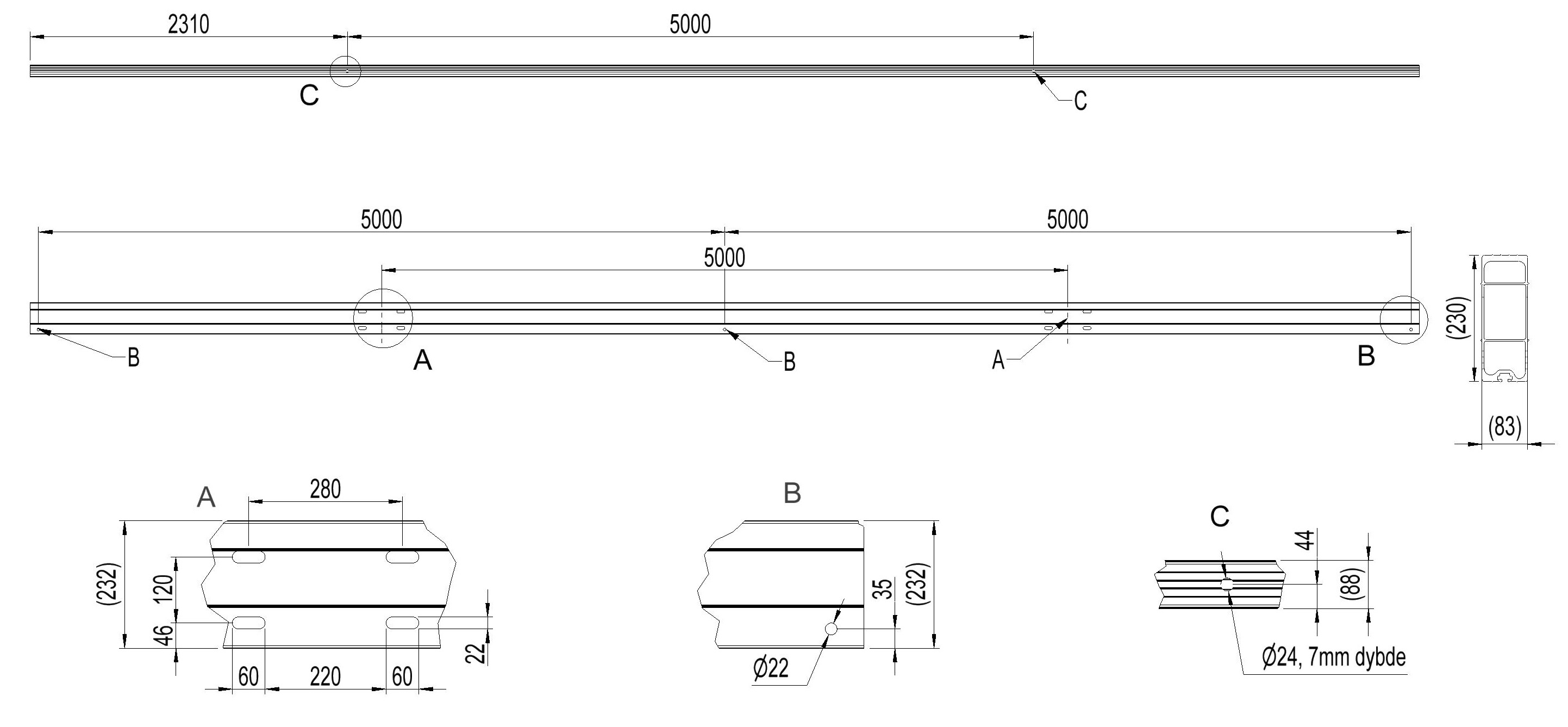

Dimensions FDV / Data sheet Brochure EPD Equipment listA

Additional information

Material	Aluminium, anodised-brown
Crossarm type	H/A-pole
Pole distance	5m
Phase distance	5m
Pole fastening	280mm-double pole clamp
Crossbar profile	P6 (83×230)

Earthing clamp J10
2836836Earthing clamp M10. Fits all crossbars with M10 profile tracks. For all crossbars except cable cross bars.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Washer SA1S
2836894Washer length 80mm. Hole 1xØ22mm. Important: always to be used to the crossbar together with pole clamp.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Washer SA196D
2836478Washer length 196mm. Hole 2xØ22mm. Important: always to be used to the crossbar together with pole clamp.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Phase bracket FH83
2836741Phase bracket . For crossbar P6, width 83. Unit set of 3.
