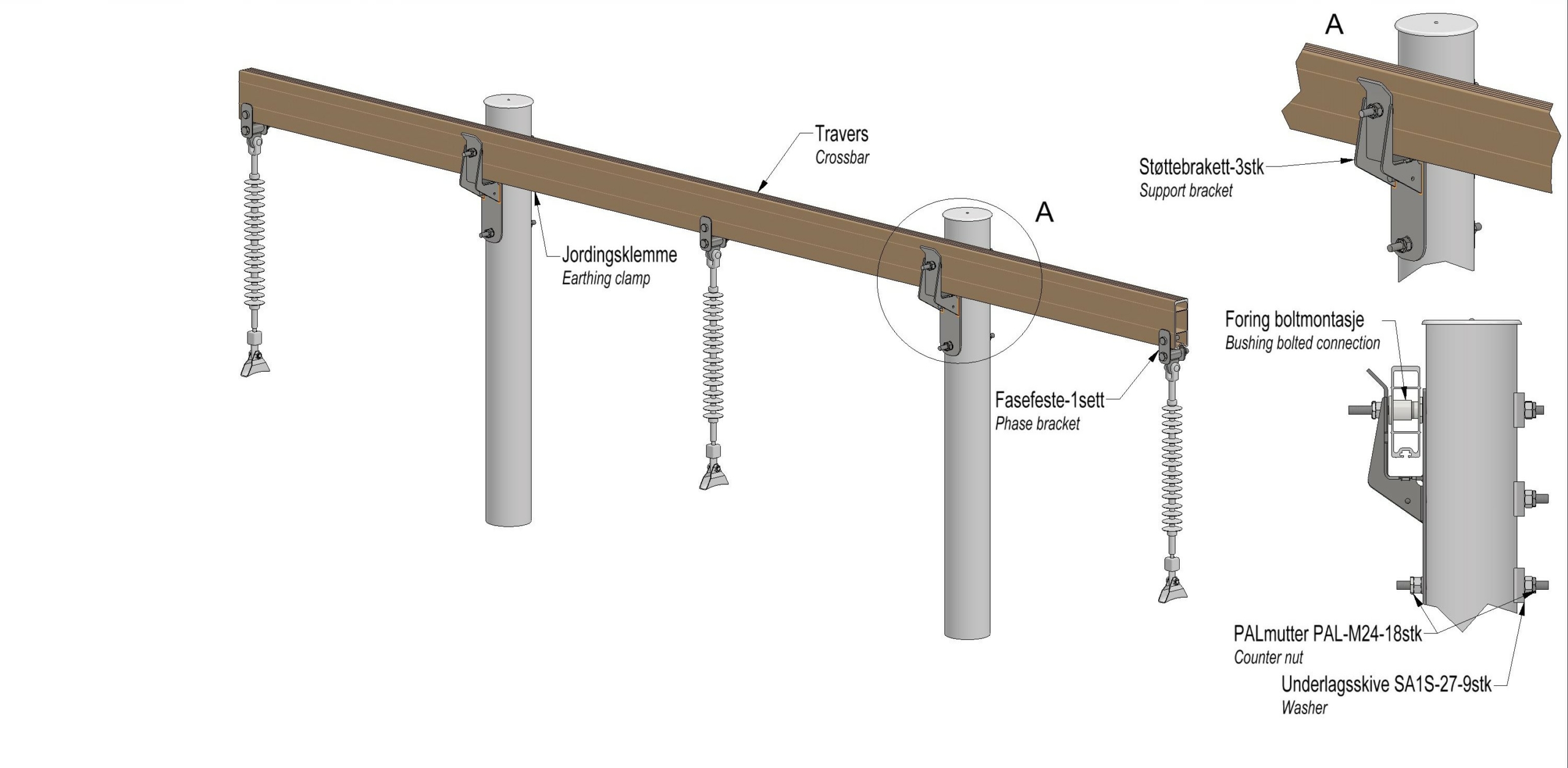

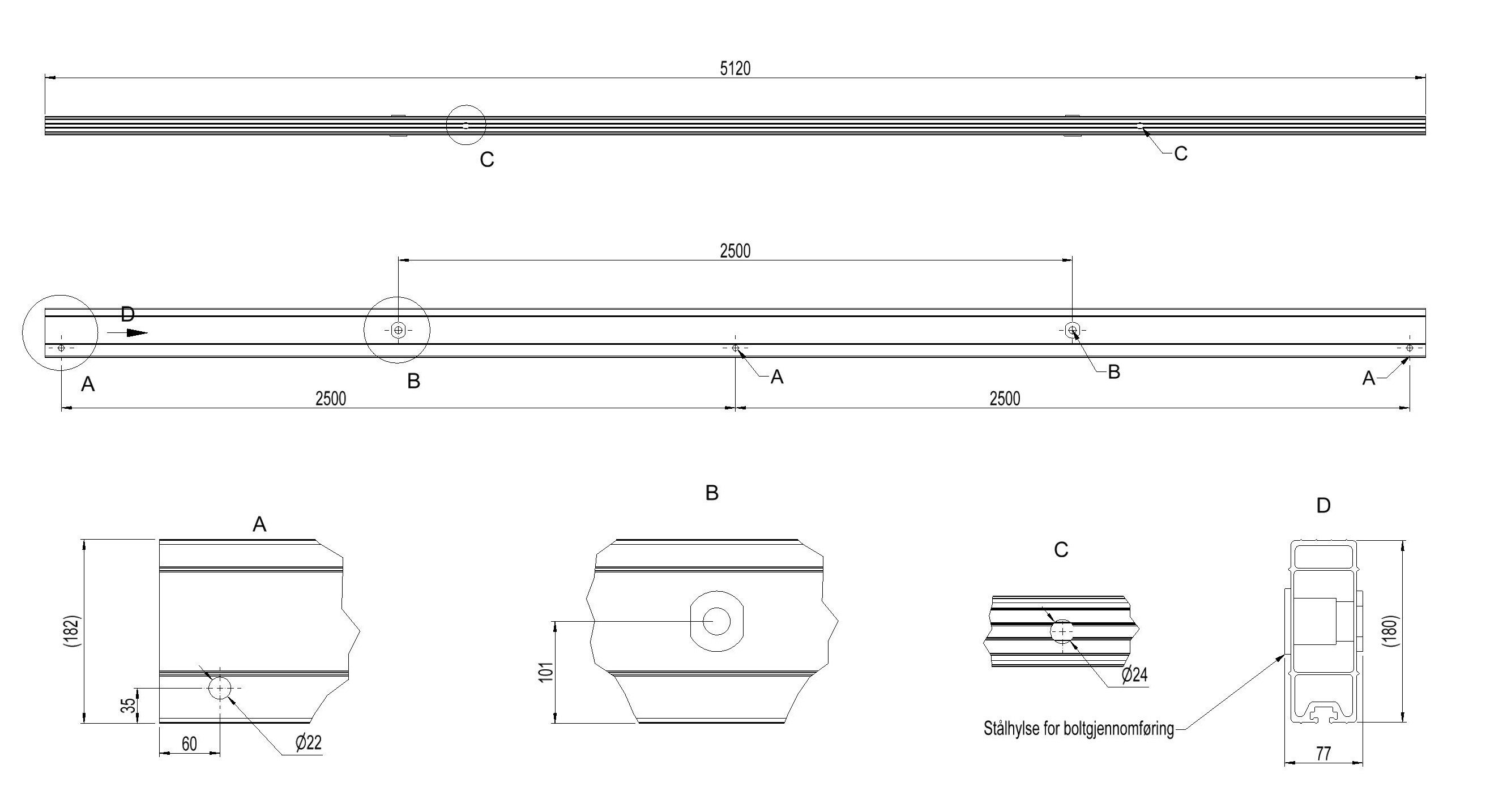

Load-bearing crossbar T2525BH-4S
Load-bearing crossbar. 2-pole.
Pole distance 2,5m, phase distanse 2,5m. Must always be used with support.
Bolted connection M24.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Material-2 | Steel galvanised |
| Crossarm type | H-pole |
| Pole distance | 2,5m |
| Phase distance | 2,5m |
| Pole fastening | Bolt with bolt sleeve |
| Crossbar profile | P4 (65×180) |
