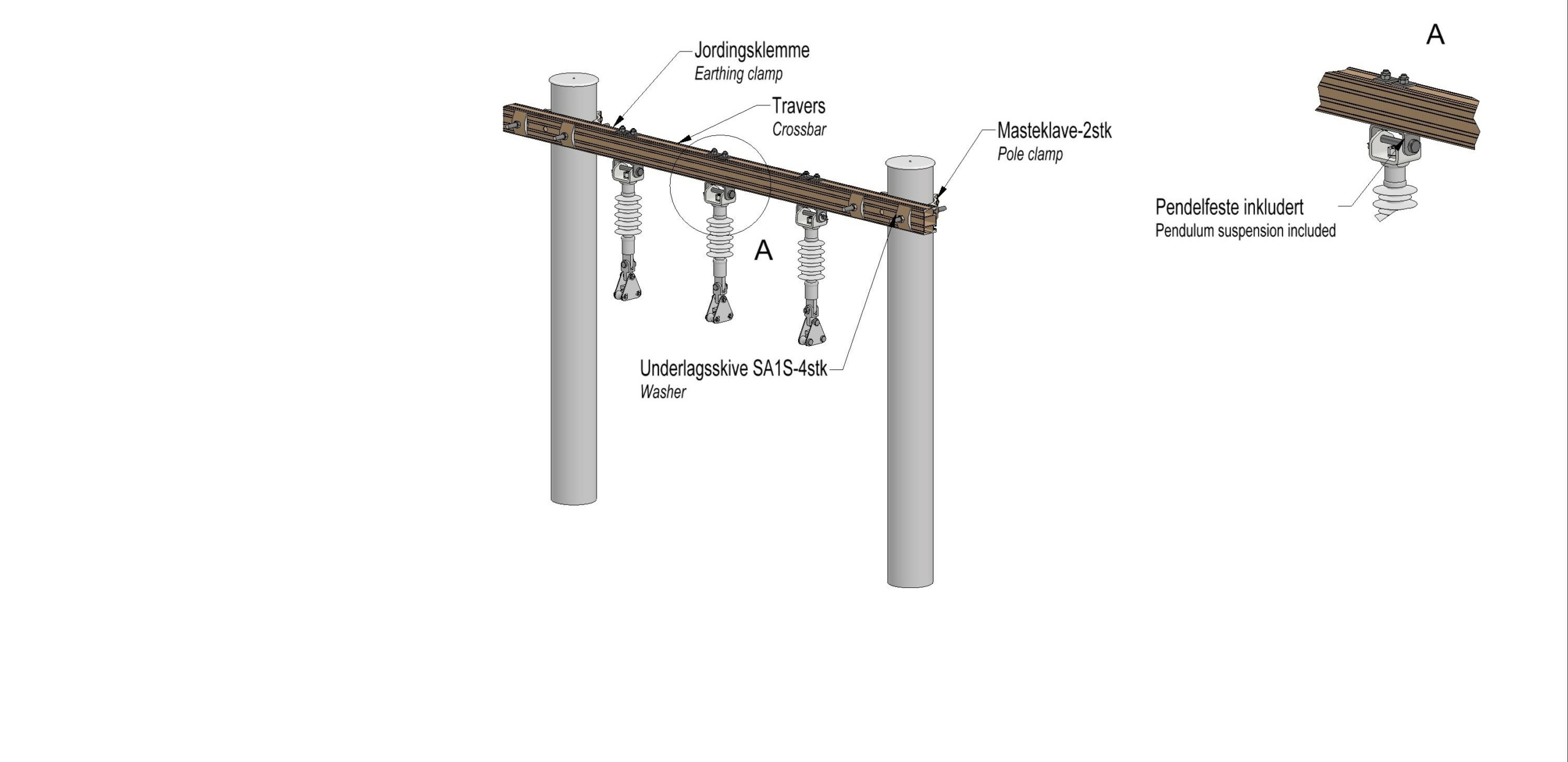

Load-bearing crossbar T2206-3PF
Load-bearing crossbar. 2-pole.

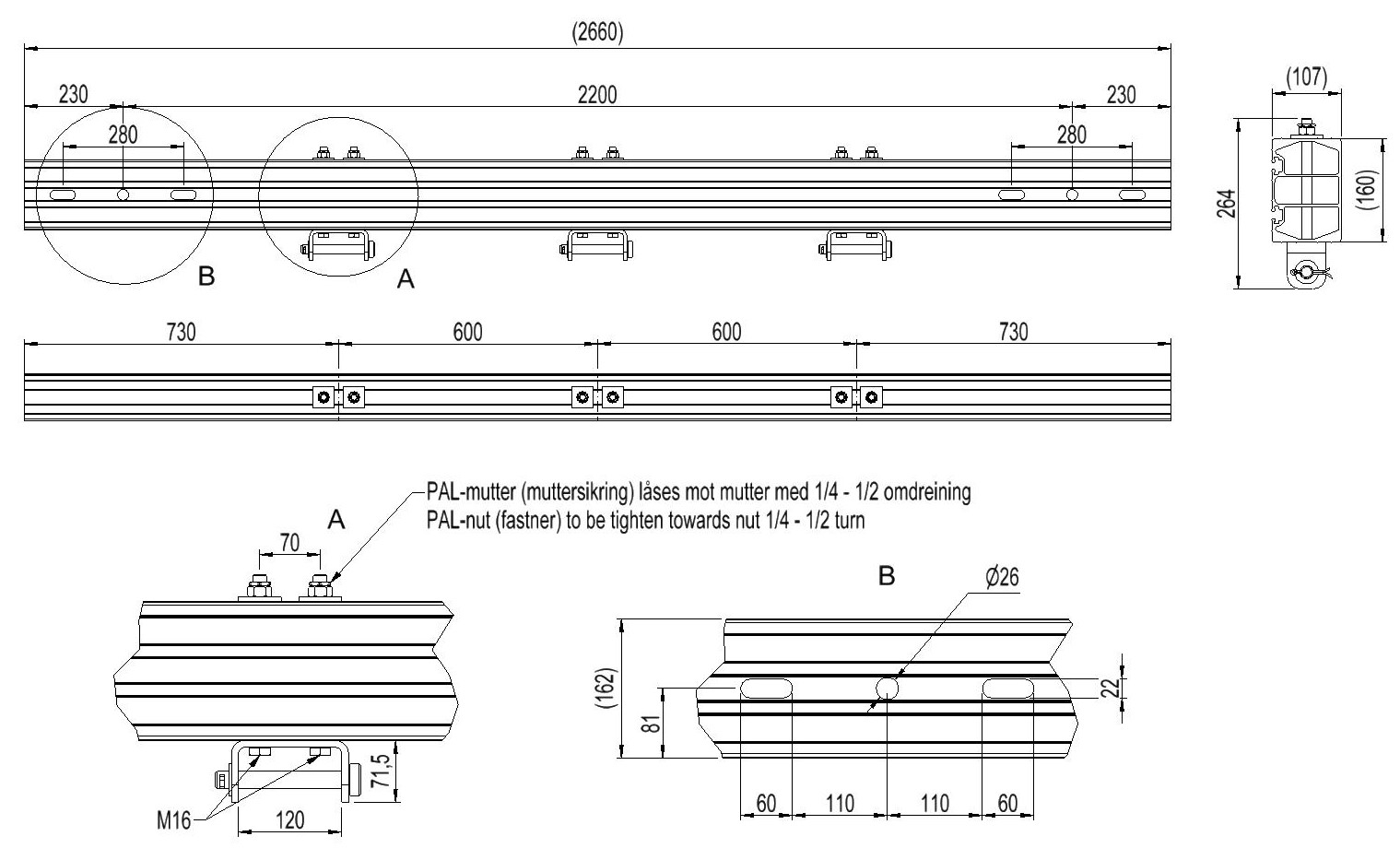

Pole distance 2,2m, phase distanse 0,6m.
With bracket for suspended mounting in pole-direction.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Material-2 | Steel galvanised |
| Crossarm type | H/A-pole |
| Pole distance | 2,2m |
| Phase distance | 0,6m |
| Pole fastening | 280mm-single poleclamp, Bolt |
| Crossbar profile | P3 (107×160) |
