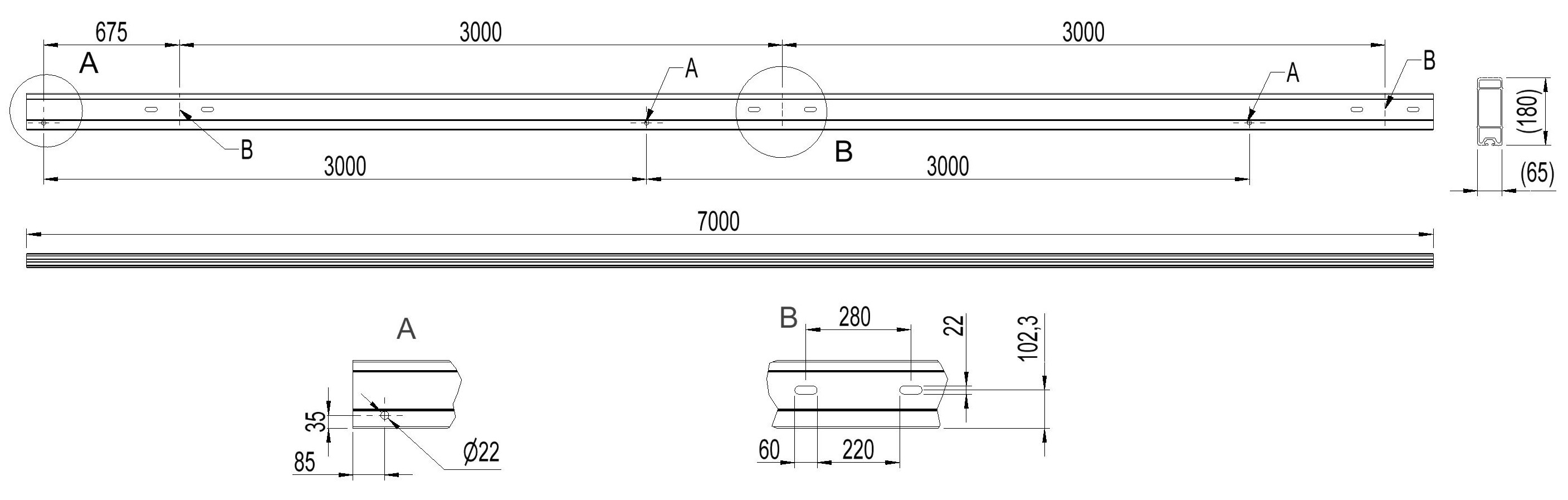

Crossbar T3V-33-4S
Crossbar angle (3E/3A).
Pole distance 3m, phase distance 3m.
Oblong hole distance 280mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 3m |
| Phase distance | 3m |
| Pole fastening | 280mm-single poleclamp |
| Crossbar profile | P4 (65×180) |
