Crossbar T3O-5050-5S

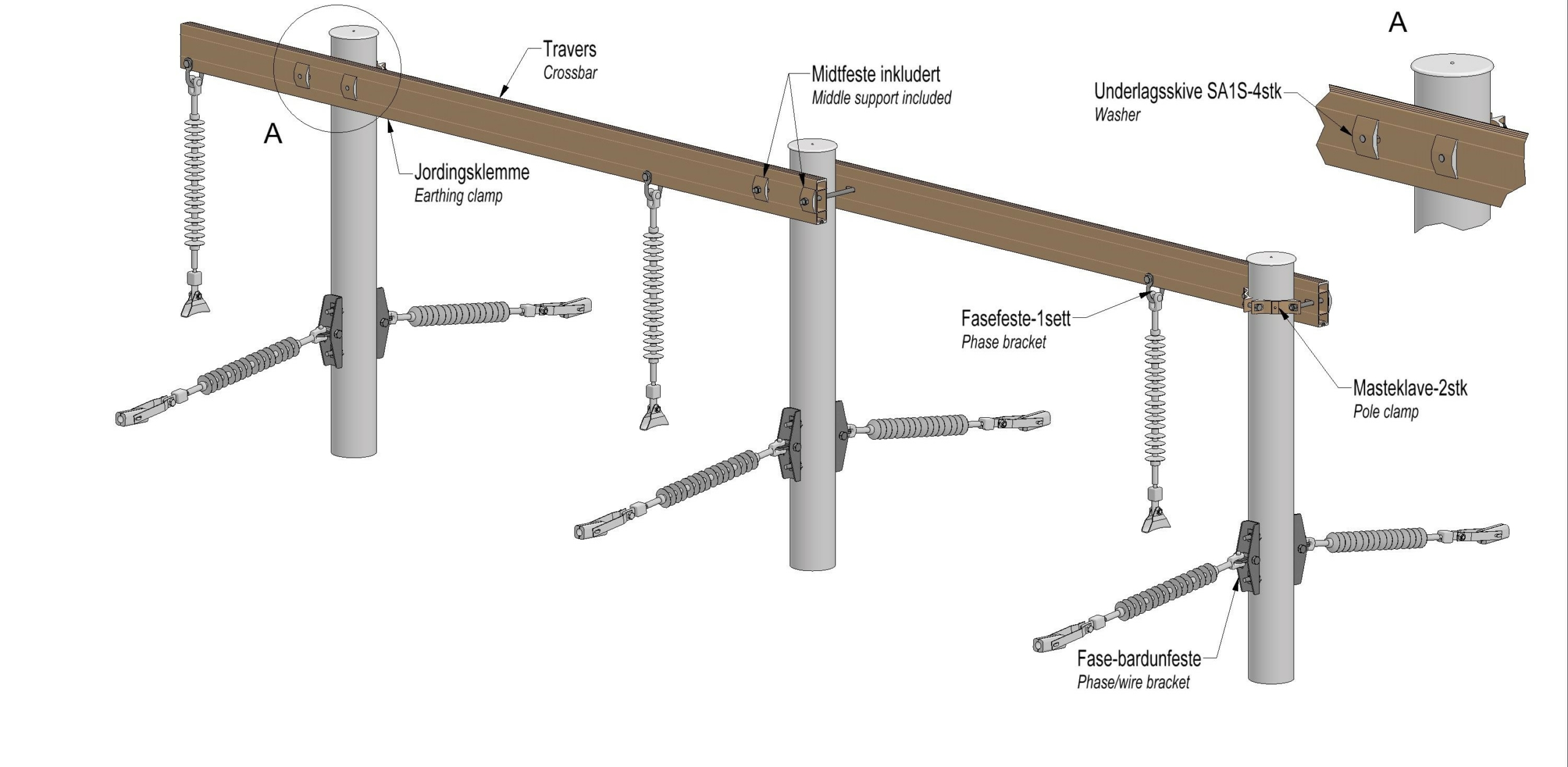

Crossbar for face wire loop (3E/3A).
Two-piece crossbar with fasteners for the middle pole.

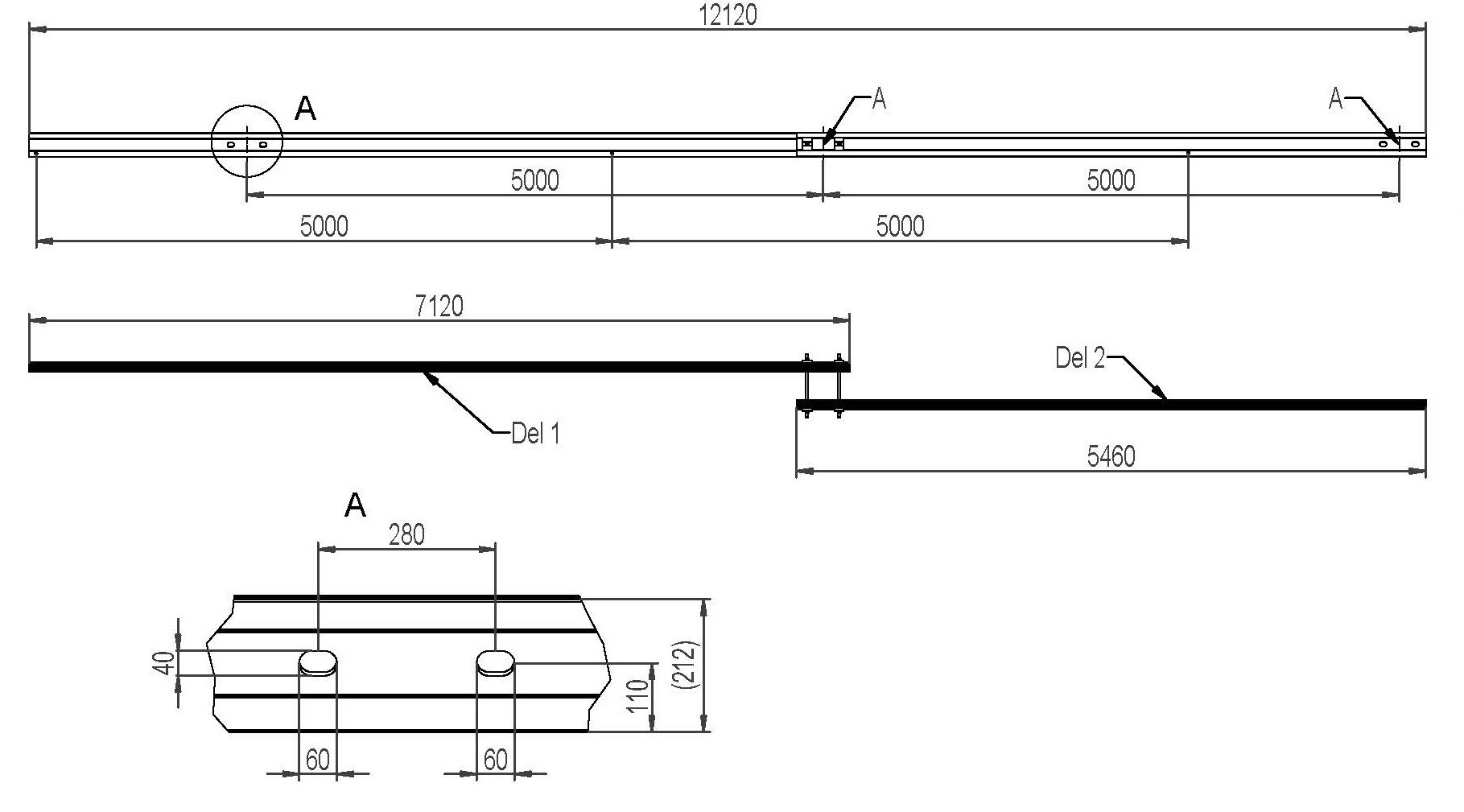

Pole distance 5m, phase distance 5m
Oblong hole distance 280mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 5m |
| Phase distance | 5m |
| Pole fastening | 280mm-single poleclamp |
| Crossbar profile | P5 (65×210) |
