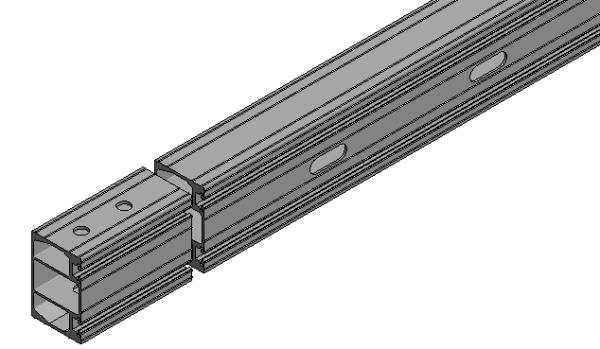

Crossbar T3O-2525-1S

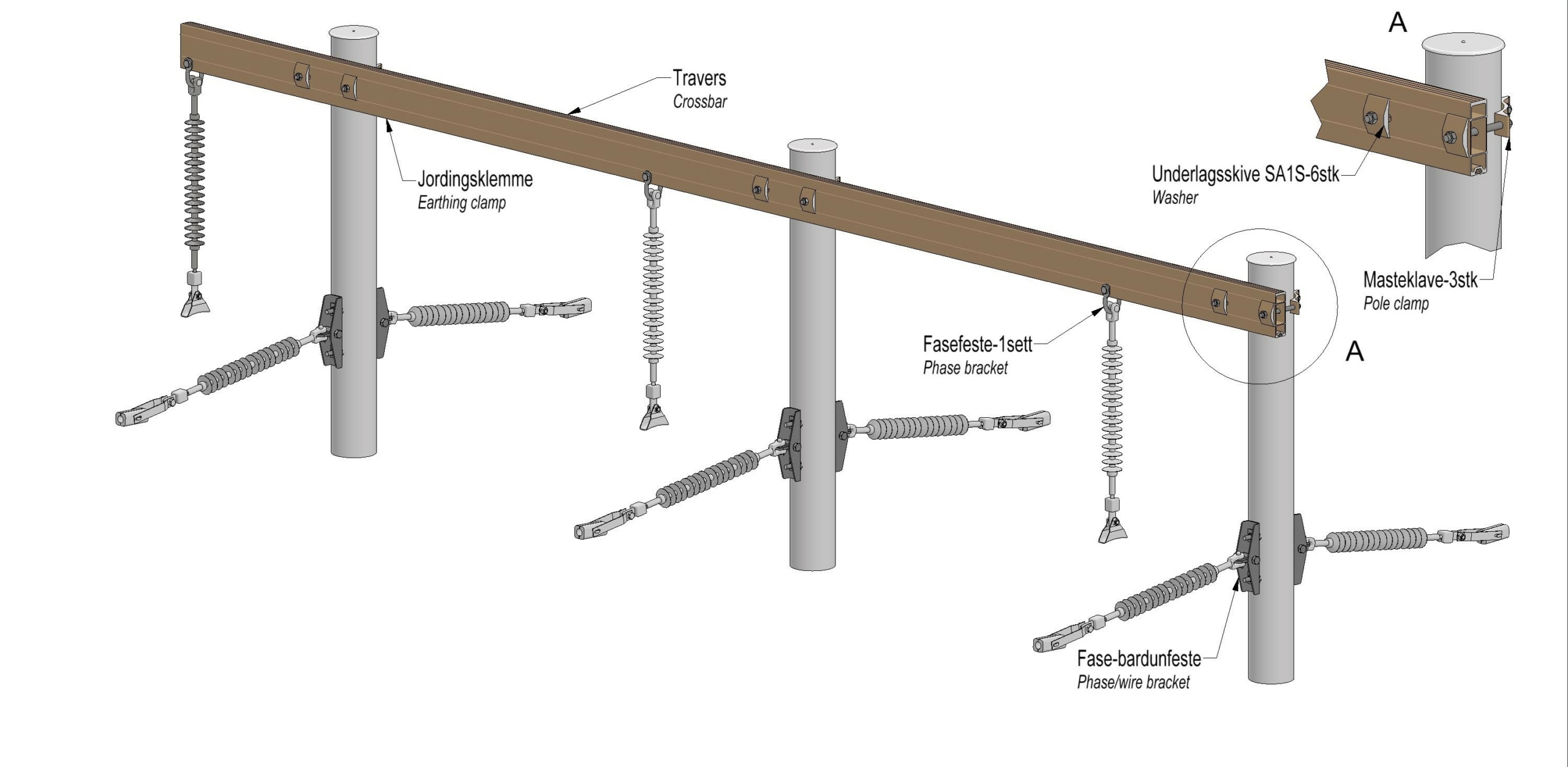

Crossbar for face wire loop (3E/3A).

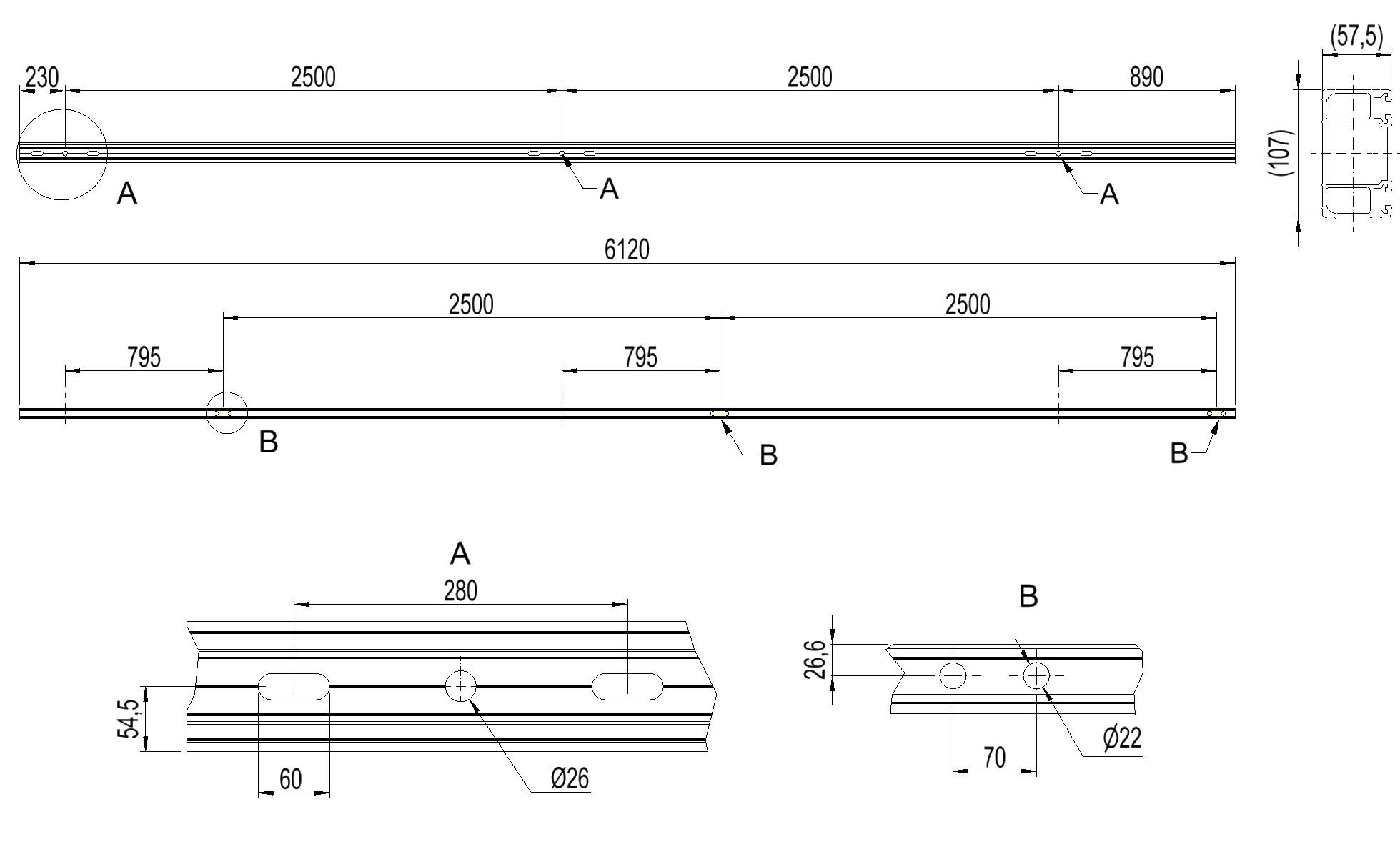

Pole distance 2,5m, phase distance 2,5m
Oblong hole distance 280mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 2,5m |
| Phase distance | 2,5m |
| Pole fastening | 280mm-single poleclamp |
| Crossbar profile | P1 (57,5×107) |
