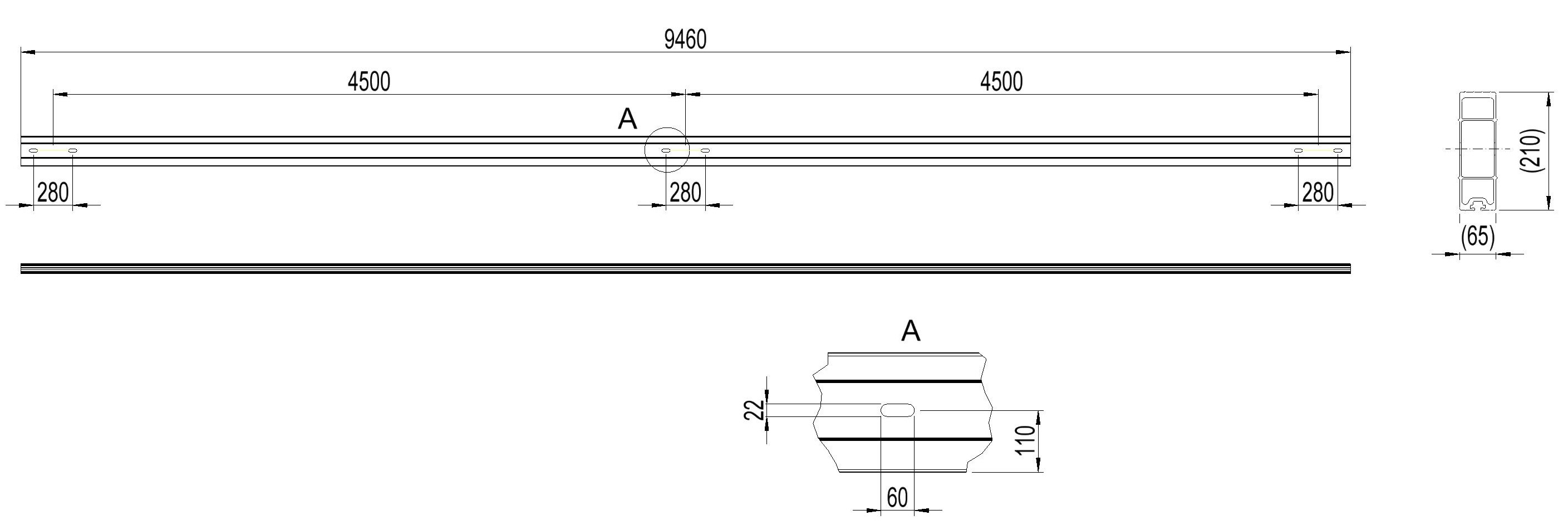

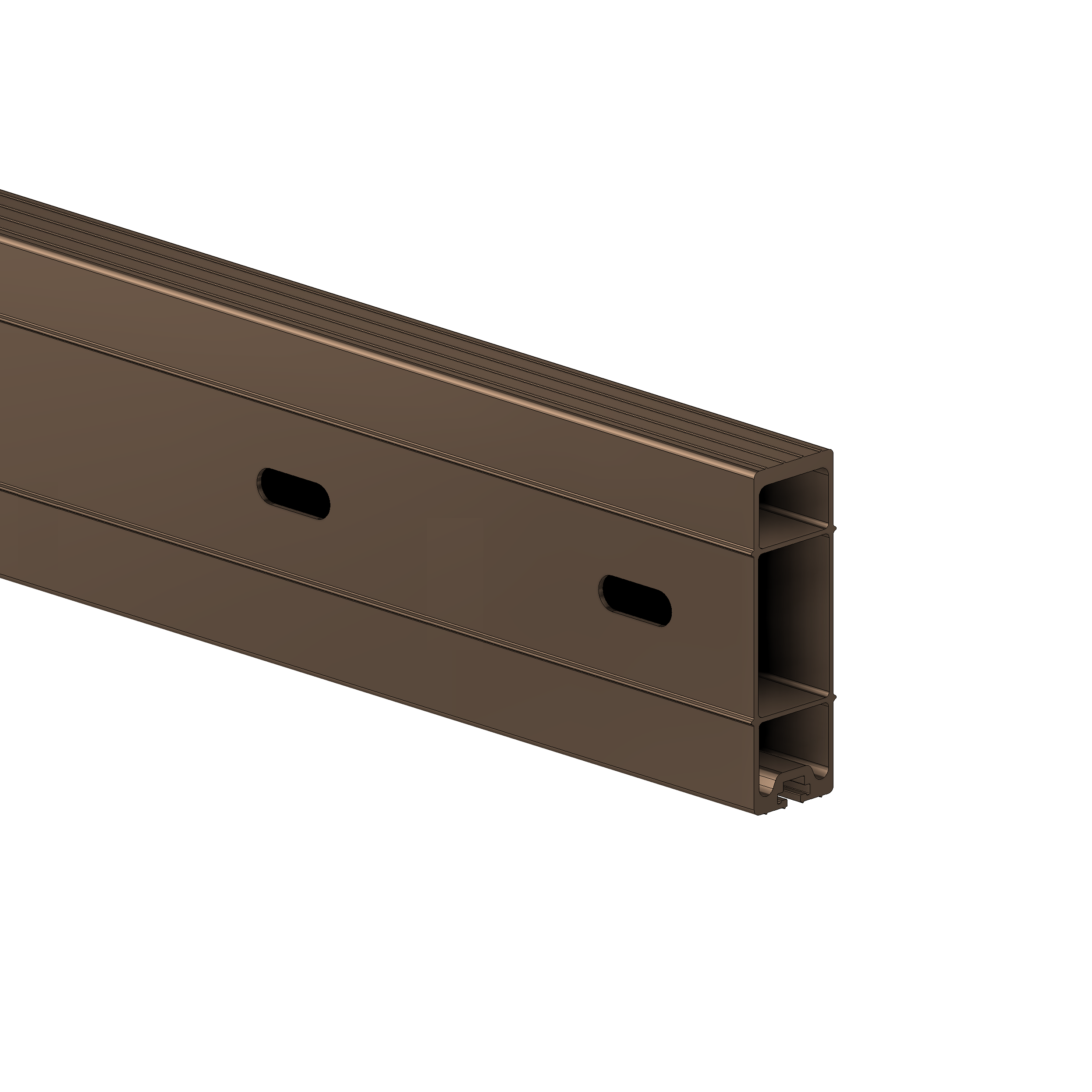

Crossbar T3-4545-5S
Crossbar for pole top (3E/3A).
Pole distance 4,5m, phase distance 4,5m
Oblong hole distance 280mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 4,5m |
| Phase distance | 4,5m |
| Pole fastening | 280mm-single poleclamp |
| Crossbar profile | P5 (65×210) |
