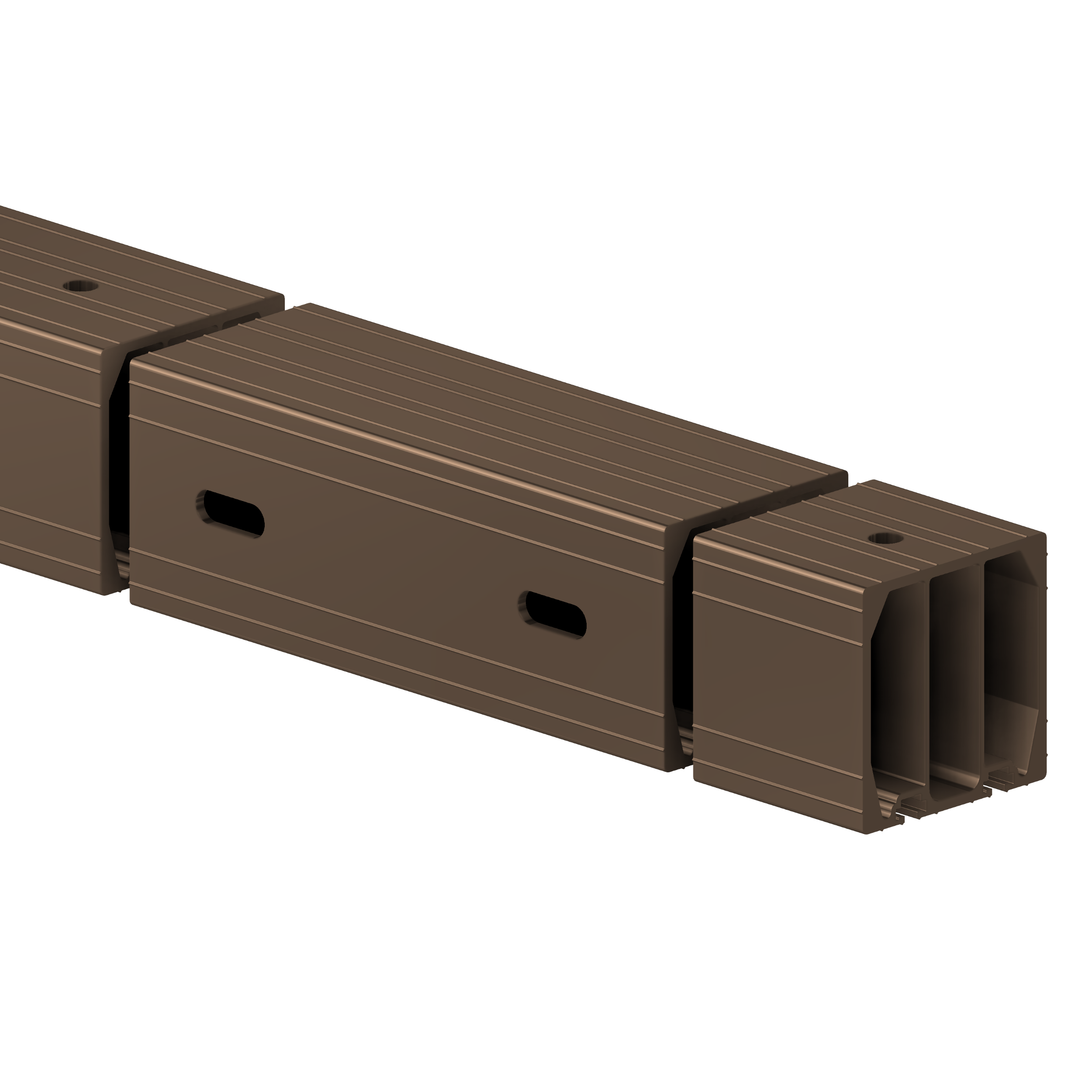

Anch. rossbar TA3030-34-8S
Anchoring crossbar for two-sided connection. 2-pole.
Pole distance 3m, phase distanse 3m.

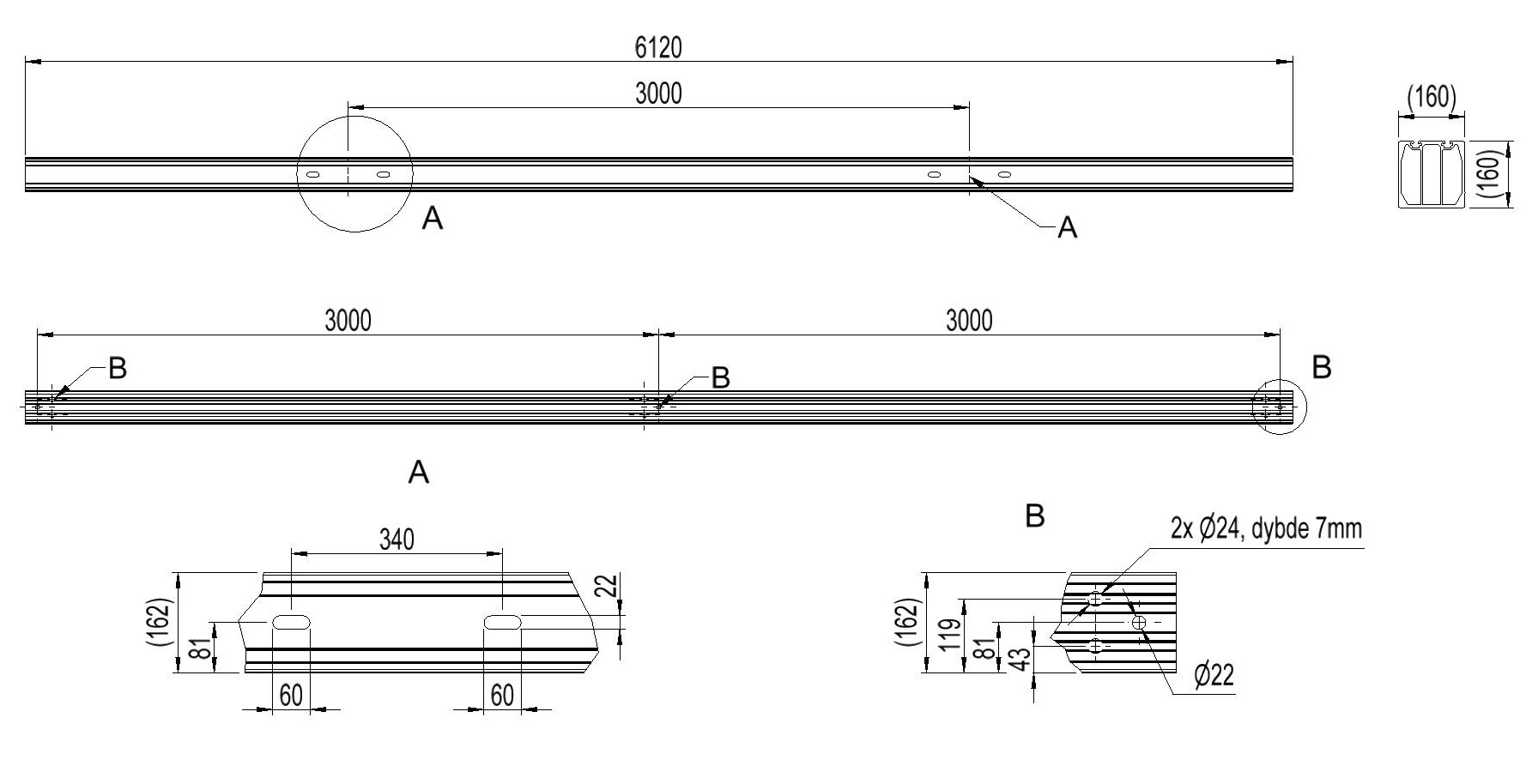

Oblong hole distance 340mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | H/A-pole |
| Pole distance | 3m |
| Phase distance | 3m |
| Pole fastening | 340mm-single pole clamp |
| Crossbar profile | P8 (160×160) |
