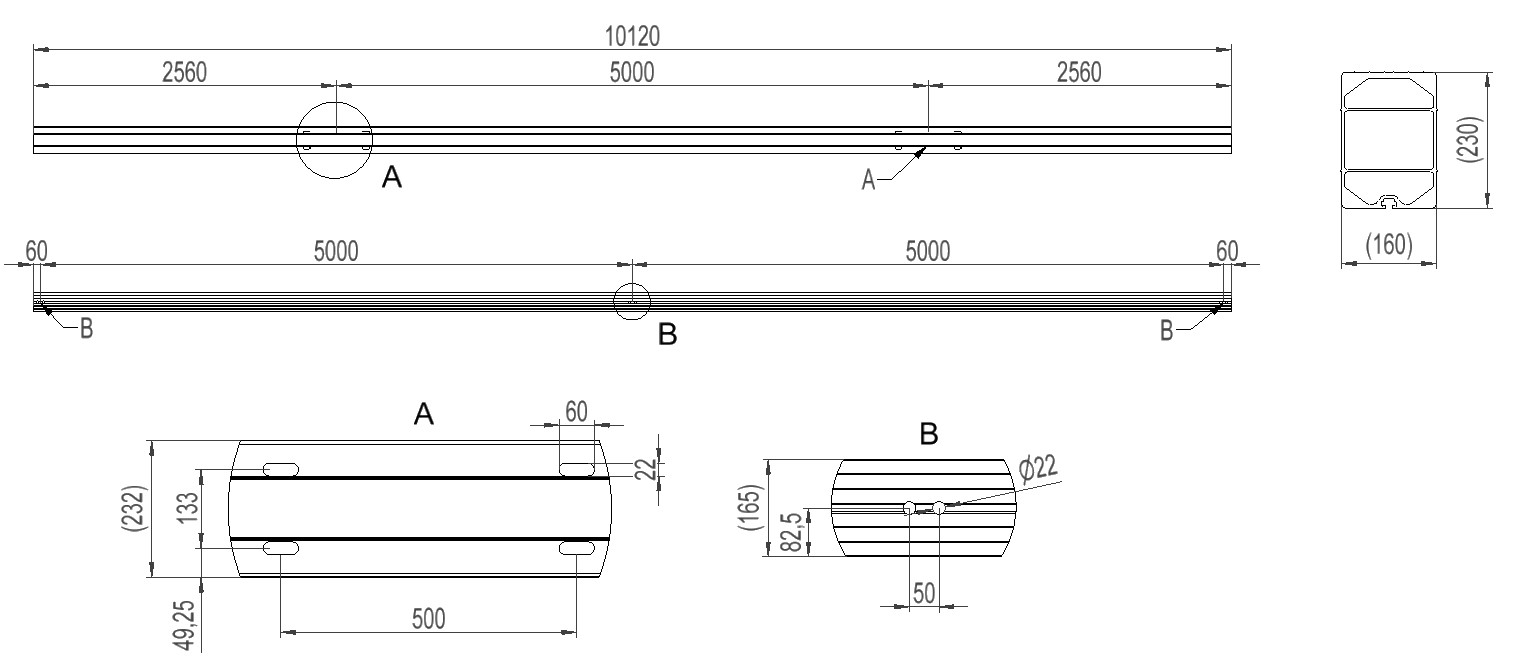

Anch. crossbar TAS5050D-50-7S

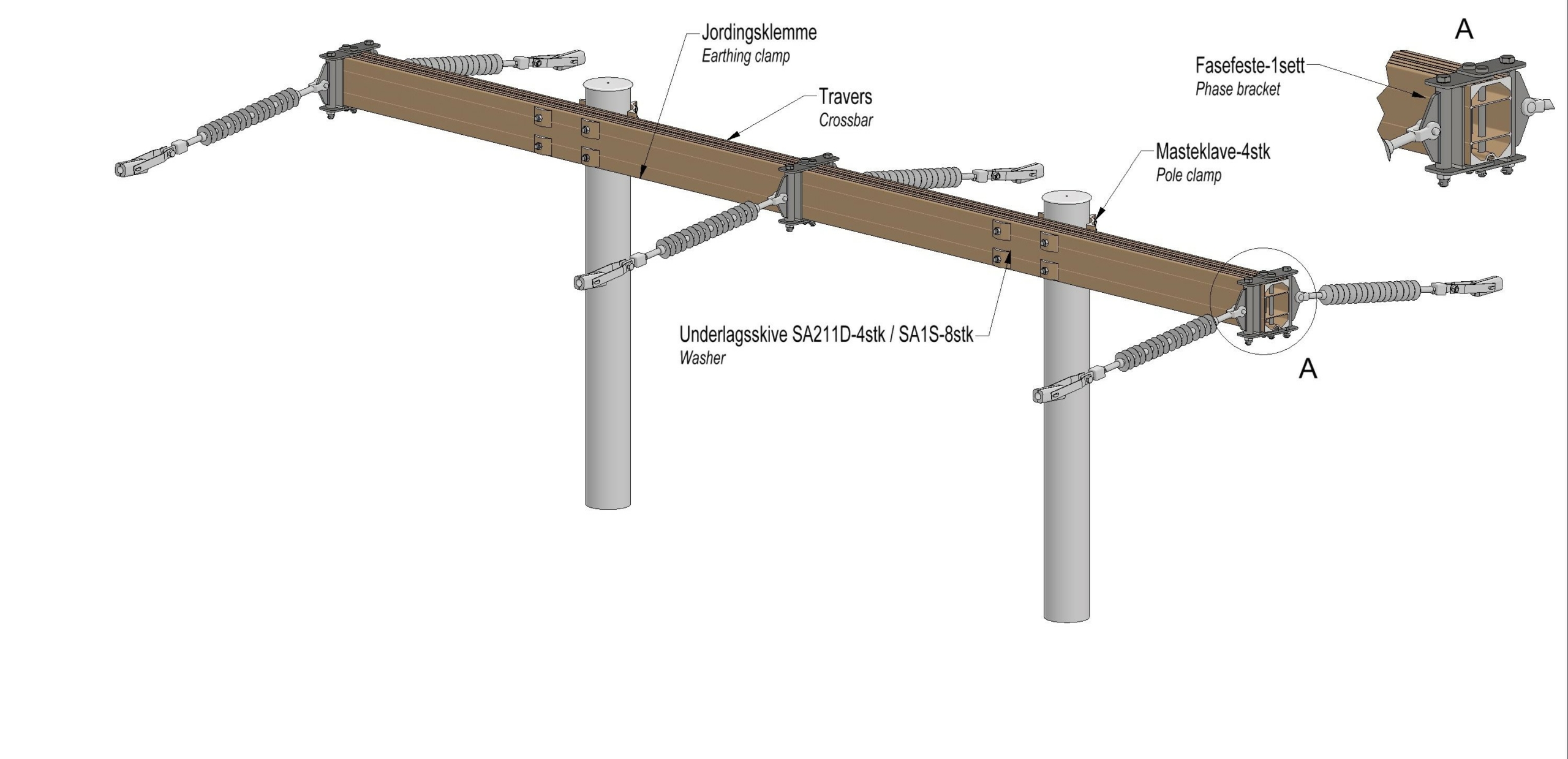

Anchoring crossbar for two-sided connection. 2-pole.
Pole distance 5m, phase distanse 5m.
Twin pole clamp. Oblong hole distance 500mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | H/A-pole |
| Pole distance | 5m |
| Phase distance | 5m |
| Pole fastening | 500mm-double pole clamp |

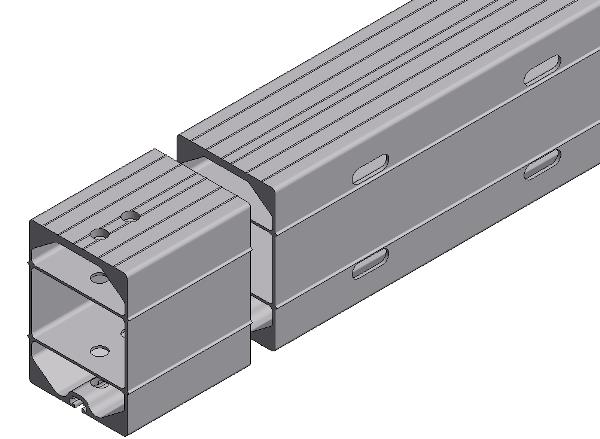

| Crossbar profile | P7 (160×230) |
