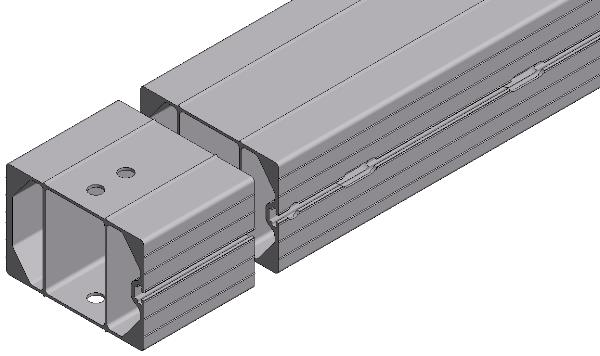

Anch. crossbar TAF33-7S

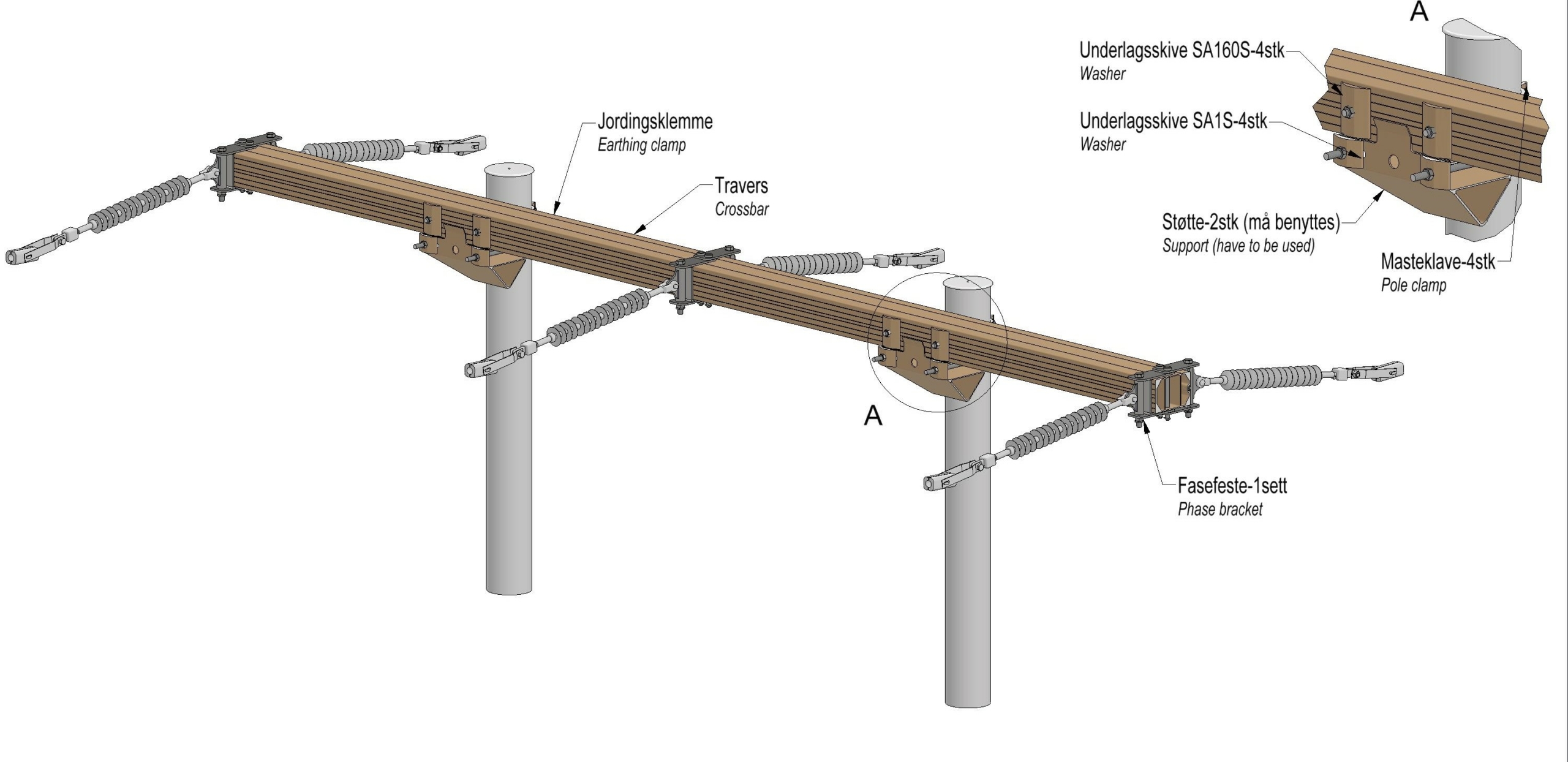

Anchoring crossbar for one-sided and two-sided connection. 2-pole.

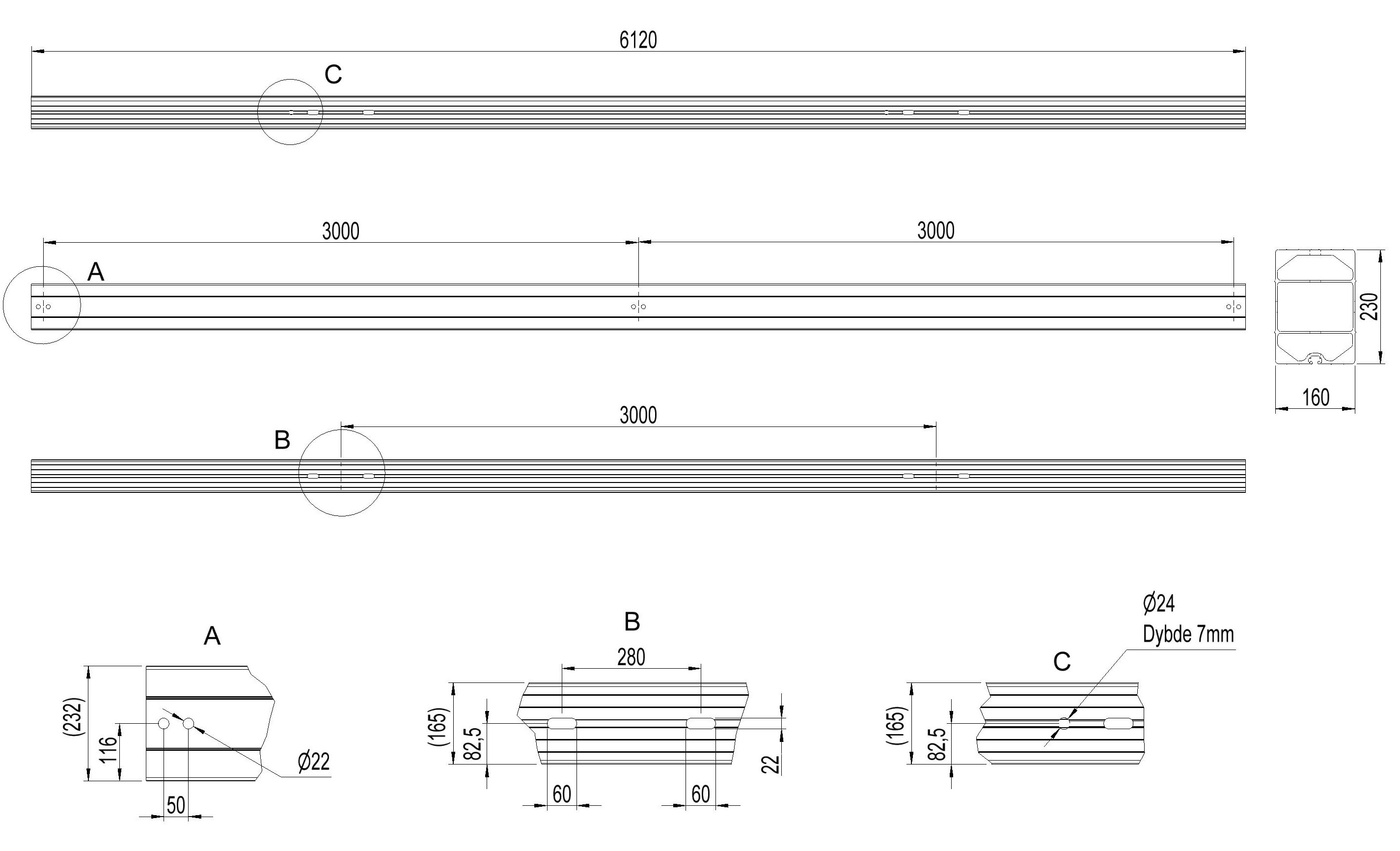

Pole distance 3m, phase distanse 3m. Must always be used with support.
Oblong hole distance 280mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | H/A-pole |
| Pole distance | 3m |
| Phase distance | 3m |
| Pole fastening | 280mm-single poleclamp |
| Crossbar profile | P7 (160×230) |
Related products
-
Phase bracket F160T
2836735Anchor bracket . two-sided. For crossbar P7, width 160. Unit set of 3.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Phase bracket FH160E
2836742Phase bracket . For crossbar P7, width 160. Unit set of 3.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Washer SA1S
2836894Washer length 80mm. Hole 1xØ22mm. Important: always to be used to the crossbar together with pole clamp.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Phase bracet F160TO
2857858Anchor bracket for steep line route. Two-sided. For crossbar P7, width 160. Unit set of 3.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Earthing clamp J10
2836836Earthing clamp M10. Fits all crossbars with M10 profile tracks. For all crossbars except cable cross bars.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

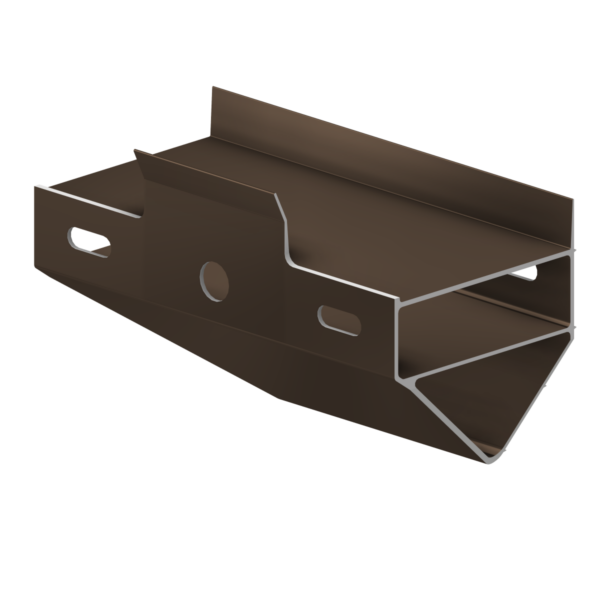

Crossbar support ST230S
