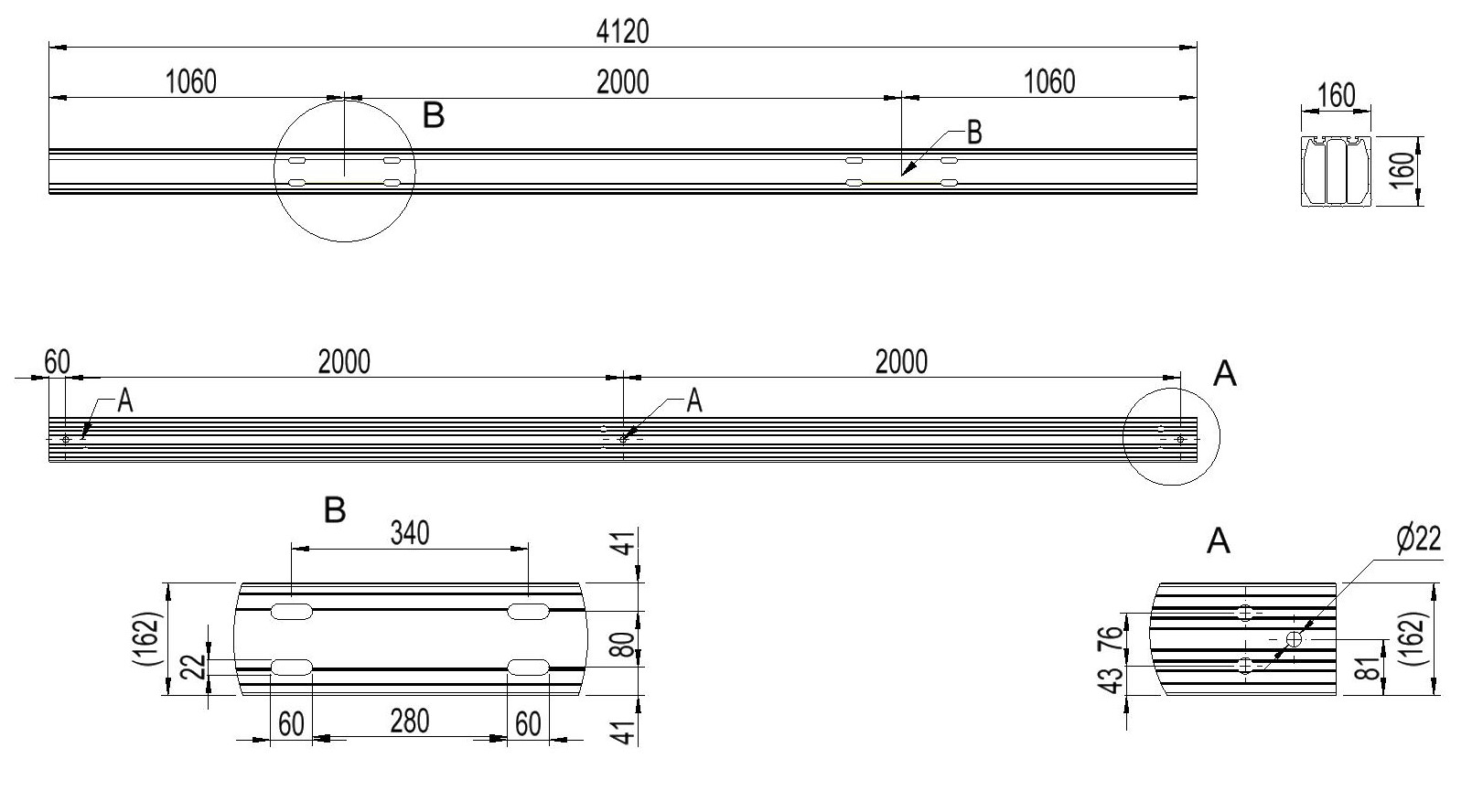

Anch. crossbar TAF2020D-34-8S

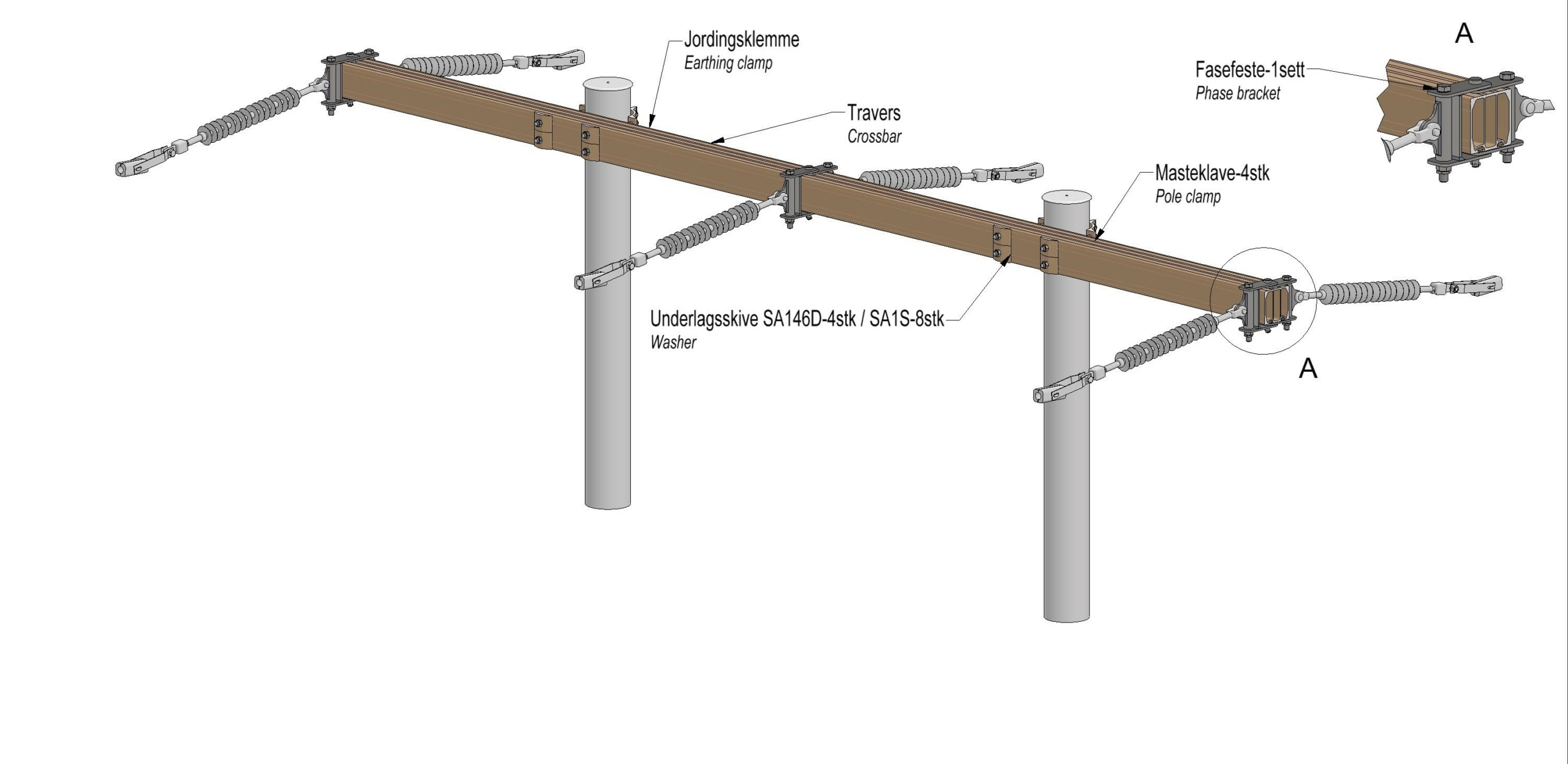

Anchoring crossbar for one-sided and two-sided connection. 2-pole
Pole distance 2m, phase distanse 2m.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | H/A-pole |
| Pole distance | 2m |
| Phase distance | 2m |
| Pole fastening | 340mm-double pole clamp |
| Crossbar profile | P8 (160×160) |
Related products
-
Earthing clamp J10
2836836Earthing clamp M10. Fits all crossbars with M10 profile tracks. For all crossbars except cable cross bars.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

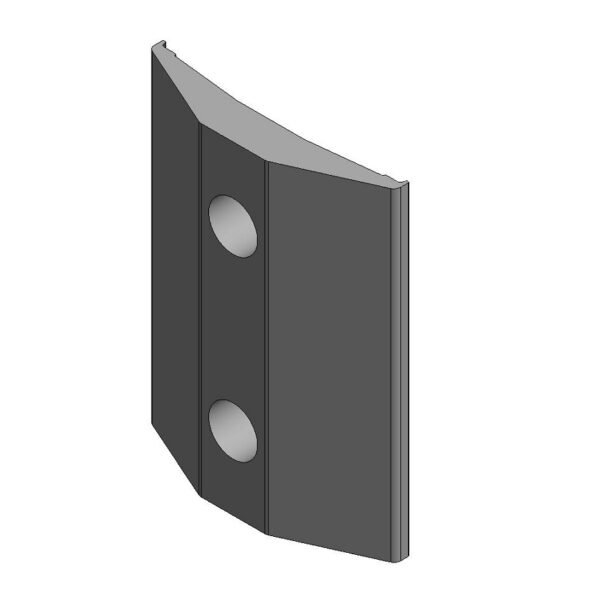

Washer SA146D
2836479Washer length 146mm. Hole 2xØ22mm. Important: always to be used to the crossbar together with pole clamp.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

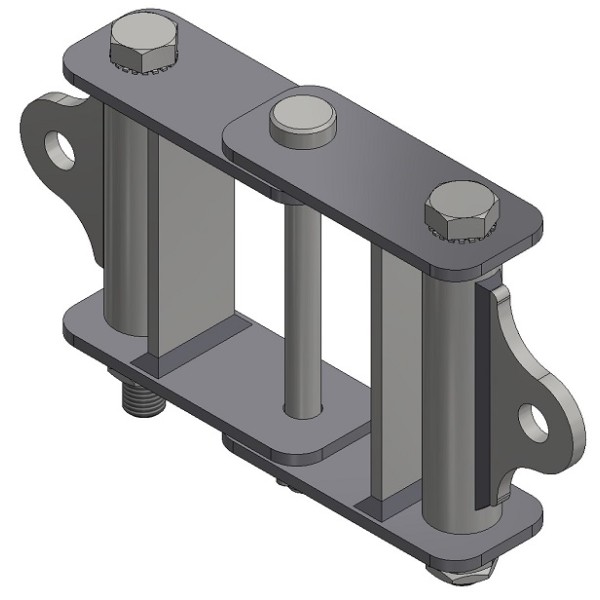

Phase bracket F160-8TA
2836749Phase bracket two-sided. For crossbar P8, width 160. Unit set of 3.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

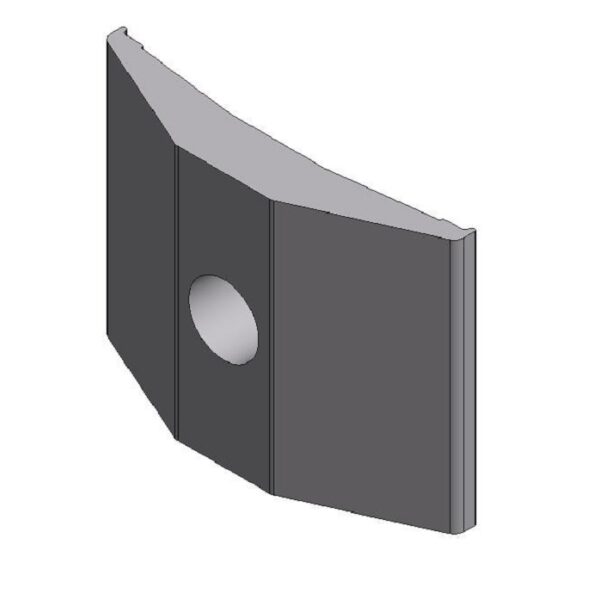

Washer SA1S
2836894Washer length 80mm. Hole 1xØ22mm. Important: always to be used to the crossbar together with pole clamp.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

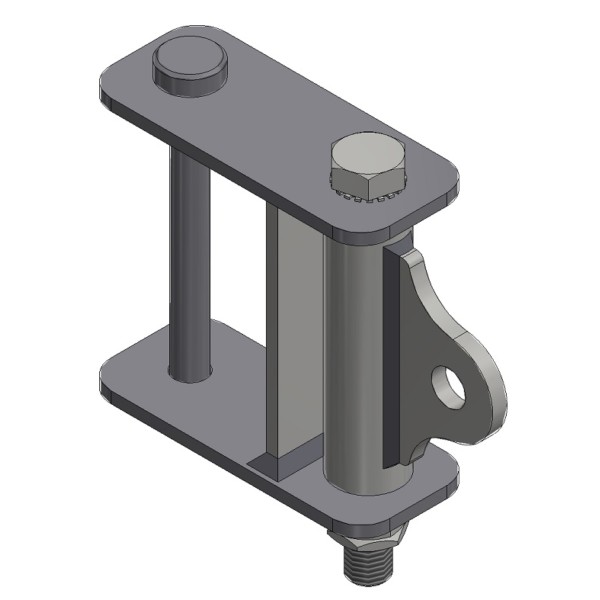

Phase bracket F160-8E
