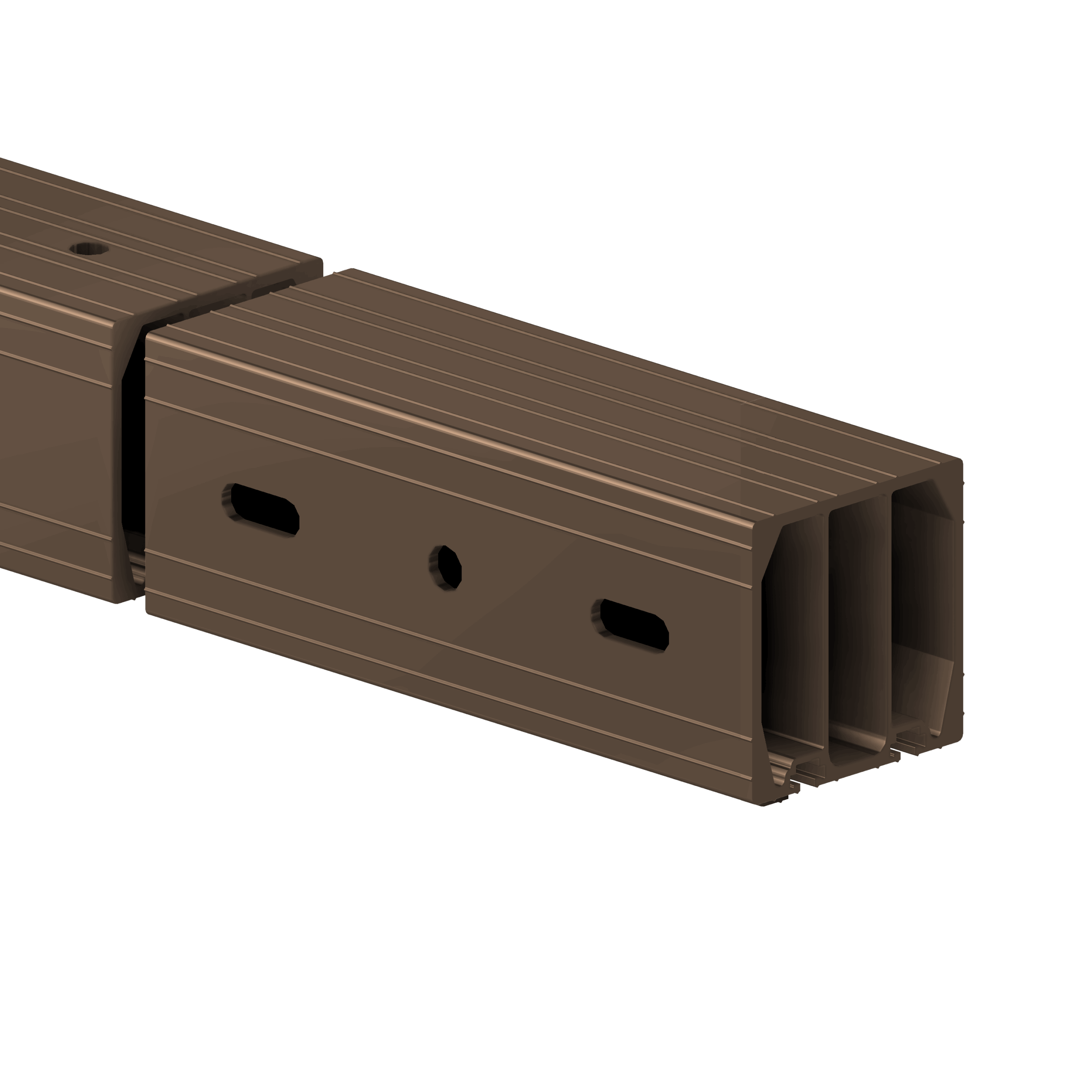

Anch. crossbar TAF2006-8S

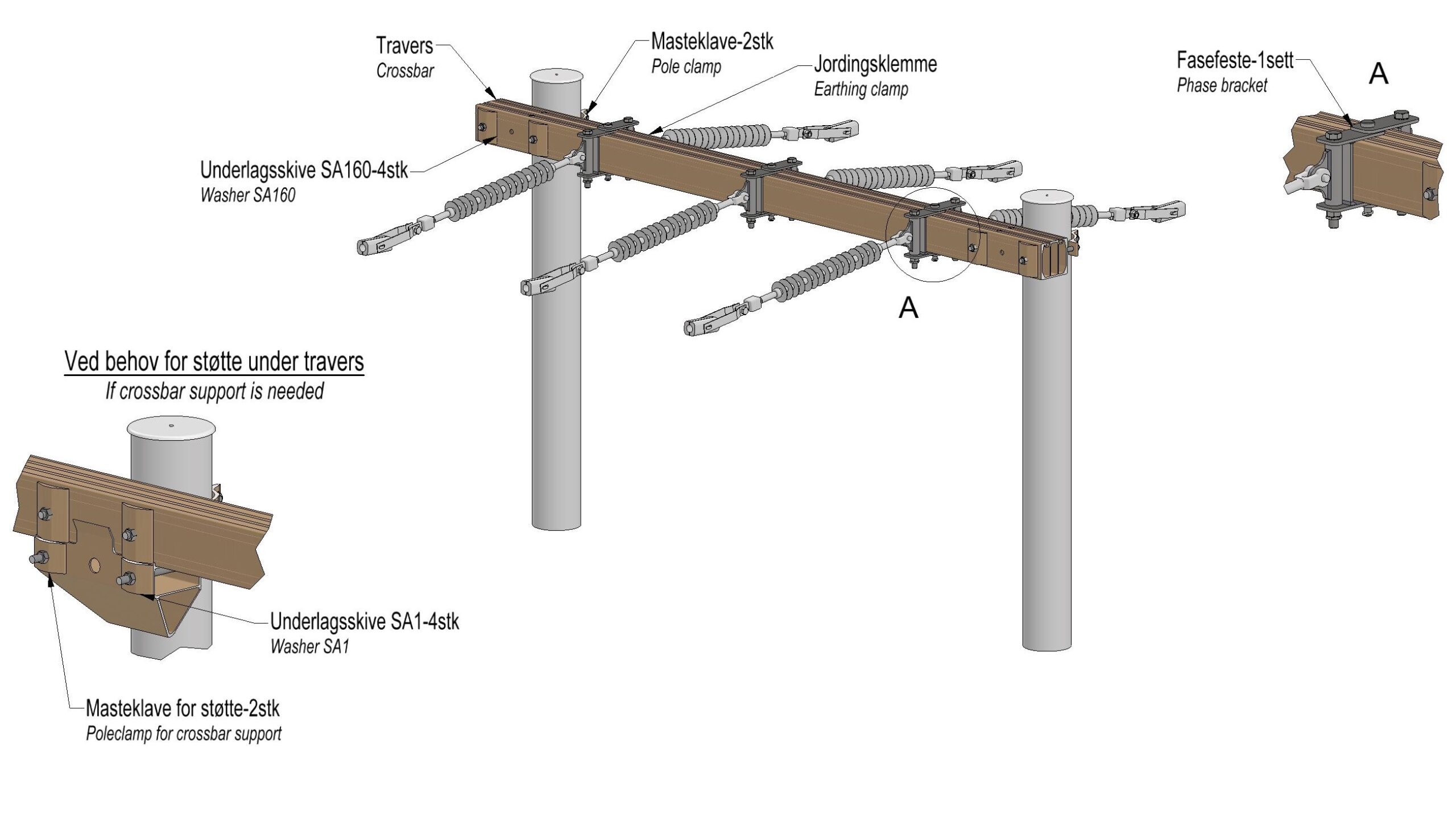

Anchoring crossbar for one-sided and two-sided connection. 2-pole

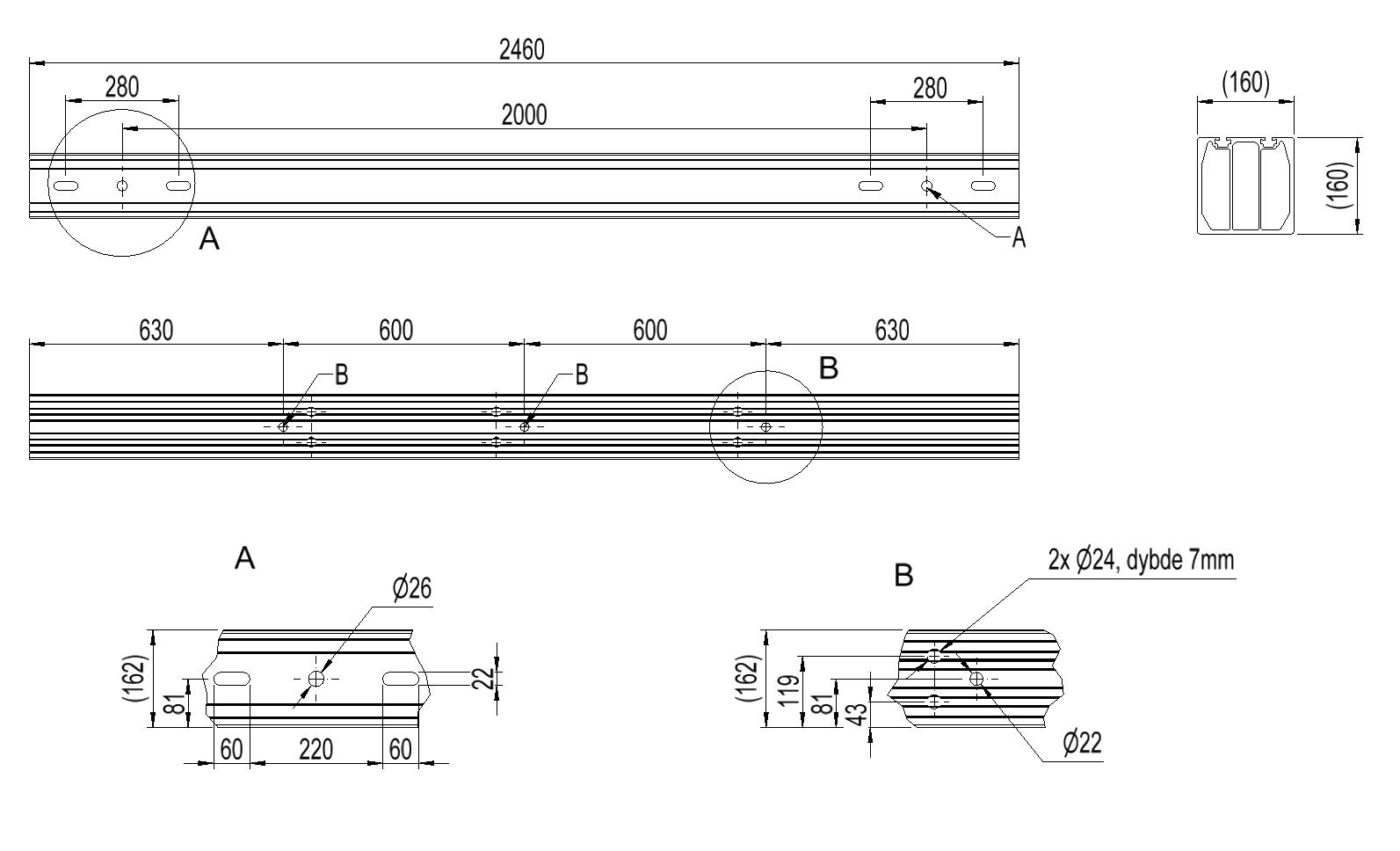

Pole distance 2m, phase distanse 0,6m.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | H/A-pole |
| Pole distance | 2m |
| Phase distance | 0,6m |
| Pole fastening | 280mm-single poleclamp, Bolt |
| Crossbar profile | P8 (160×160) |
