Anch. crossbar TA5050BH-7S

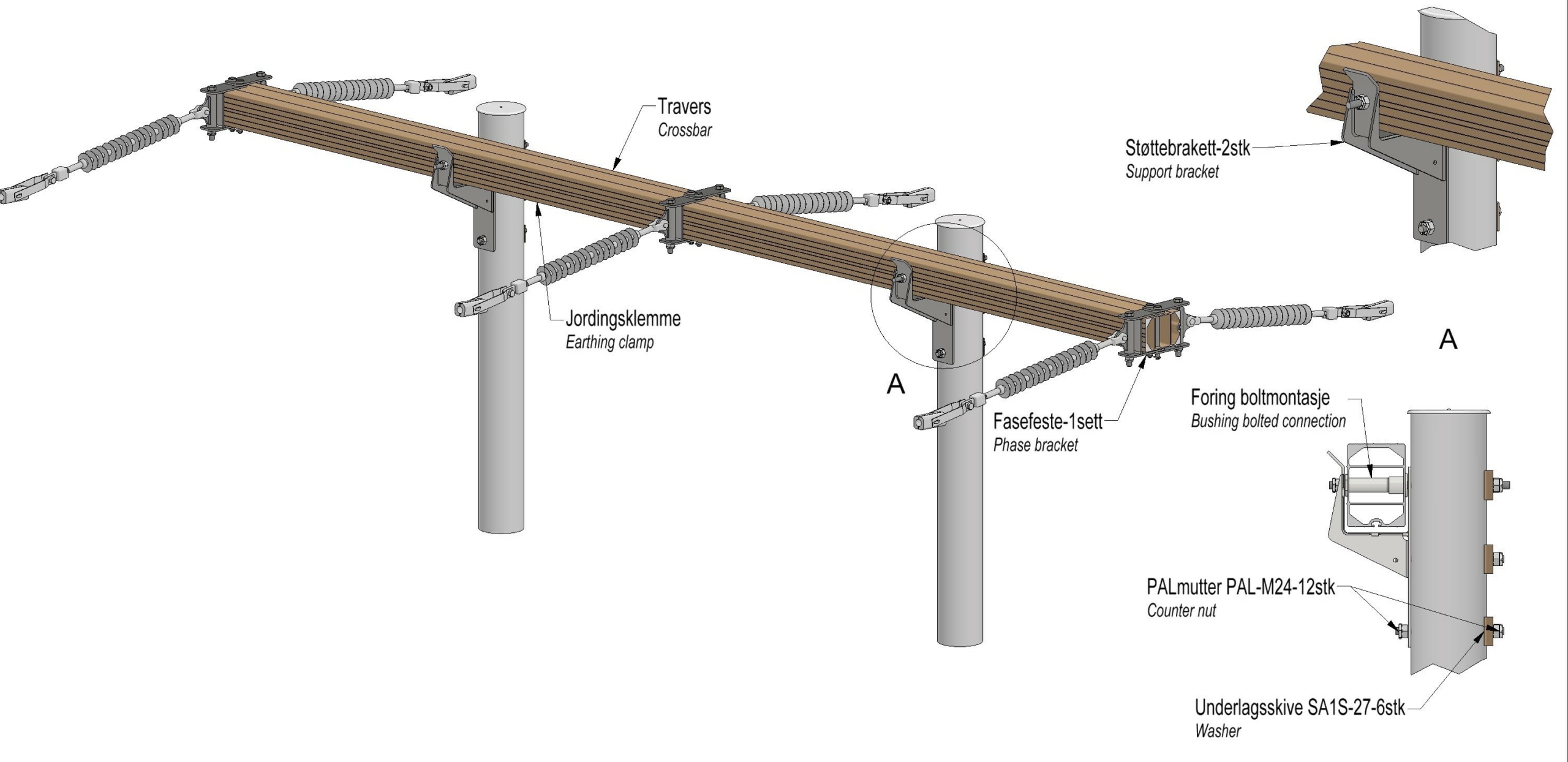

Anchoring crossbar for two-sided connection. 2-pole.
Pole distance 5m, phase distanse 5m. Must always be used with support.
Bolted connection M24.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Material-2 | Steel galvanised |
| Crossarm type | H-pole |

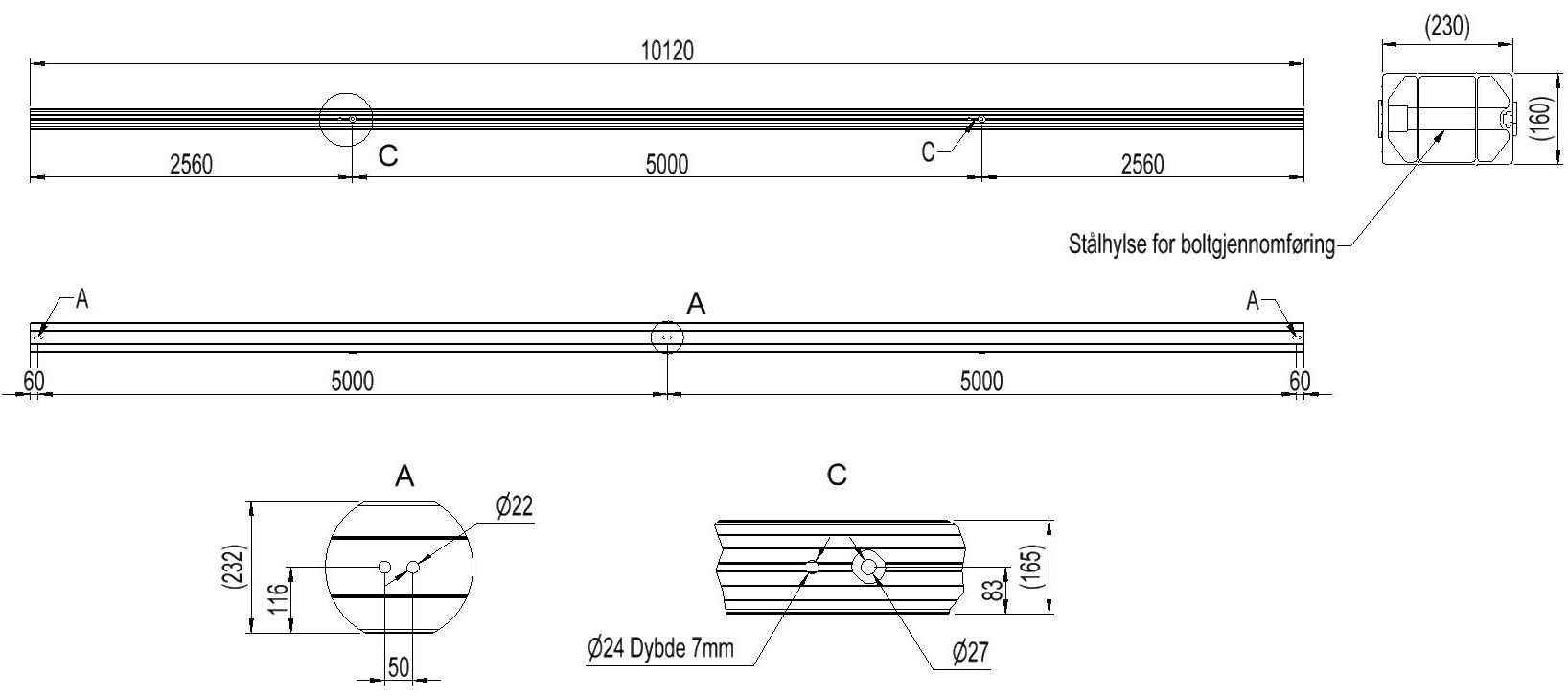

| Pole distance | 5m |
| Phase distance | 5m |
| Pole fastening | Bolt with bolt sleeve |

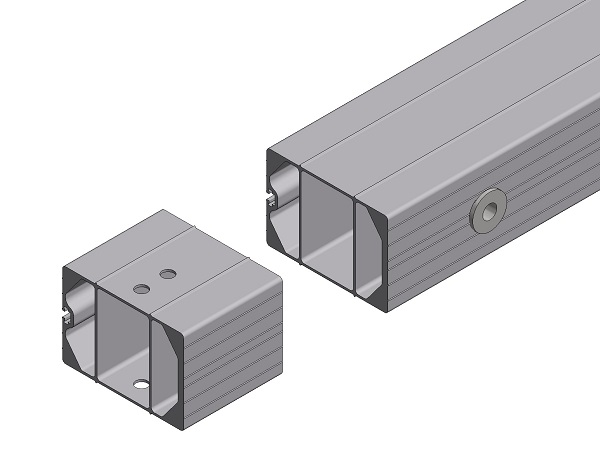

| Crossbar profile | P7 (160×230) |
Related products
-
Earthing clamp J10
2836836Earthing clamp M10. Fits all crossbars with M10 profile tracks. For all crossbars except cable cross bars.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Support bracket STB230
2837408Support for bolted connection. For crossbar profile 7 (width 230mm).Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Counter nut PAL-M24 VF DIN7967
2836447Self locking counter nut to secure nuts. These are made of spring-like steel and is a better alternative than using regular nuts as counter nut.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Washer SA1S-27
2836815Washer length 80mm. Hole 1xØ27mm. Important: always to be used to the crossbar together with pole clamp.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Phase bracet F160TO
2857858Anchor bracket for steep line route. Two-sided. For crossbar P7, width 160. Unit set of 3.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Phase bracket F160T
2836735Anchor bracket . two-sided. For crossbar P7, width 160. Unit set of 3.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote
