Anch. crossbar TA4545-50-3S
Anchoring crossbar for two-sided connection. 2-pole.

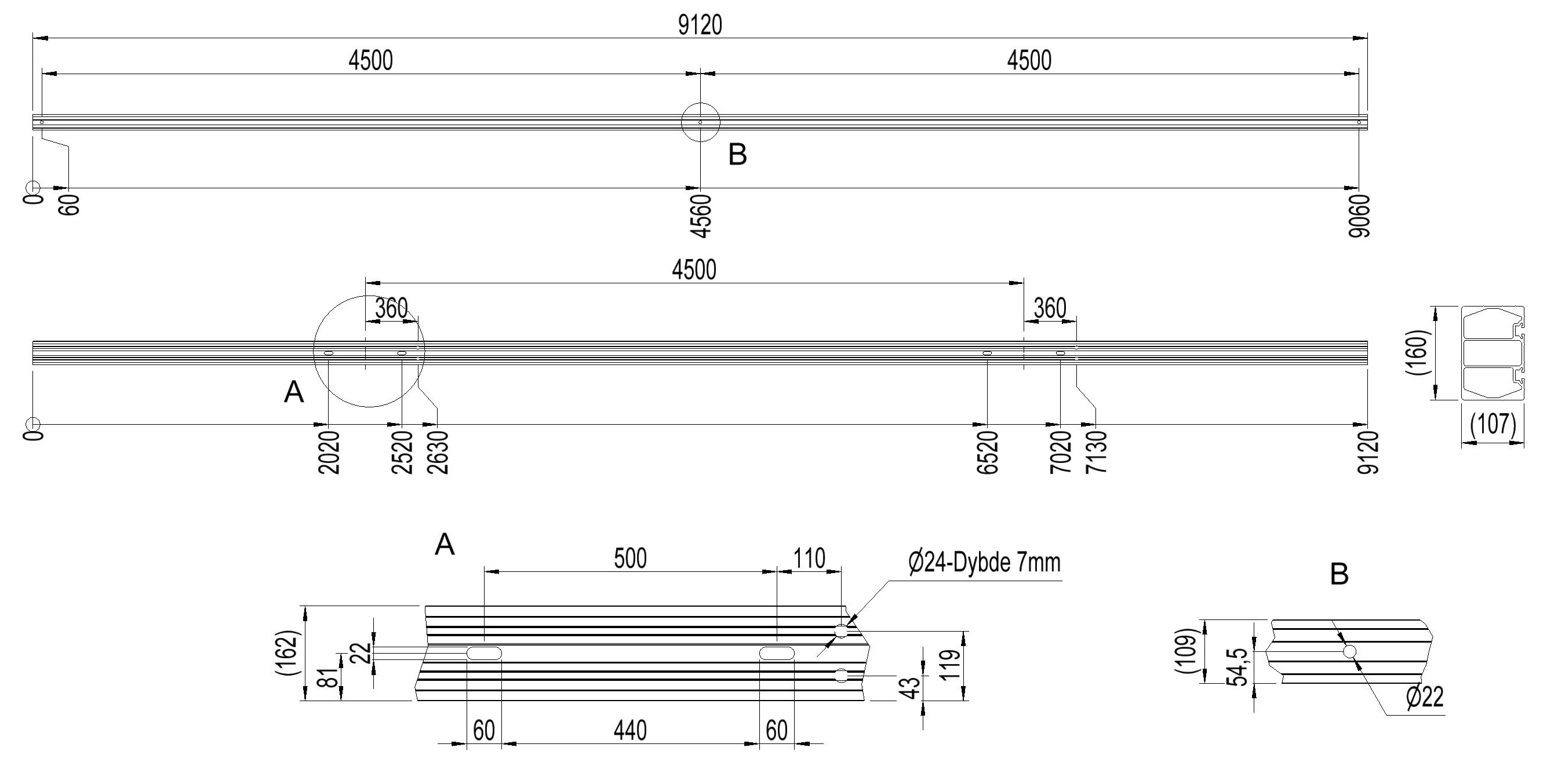

Pole distance 4,5m, phase distanse 4,5m.
Oblong hole distance 500mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | H/A-pole |
| Pole distance | 4,5m |
| Phase distance | 4,5m |
| Pole fastening | 500mm-single pole clamp |
| Crossbar profile | P3 (107×160) |
