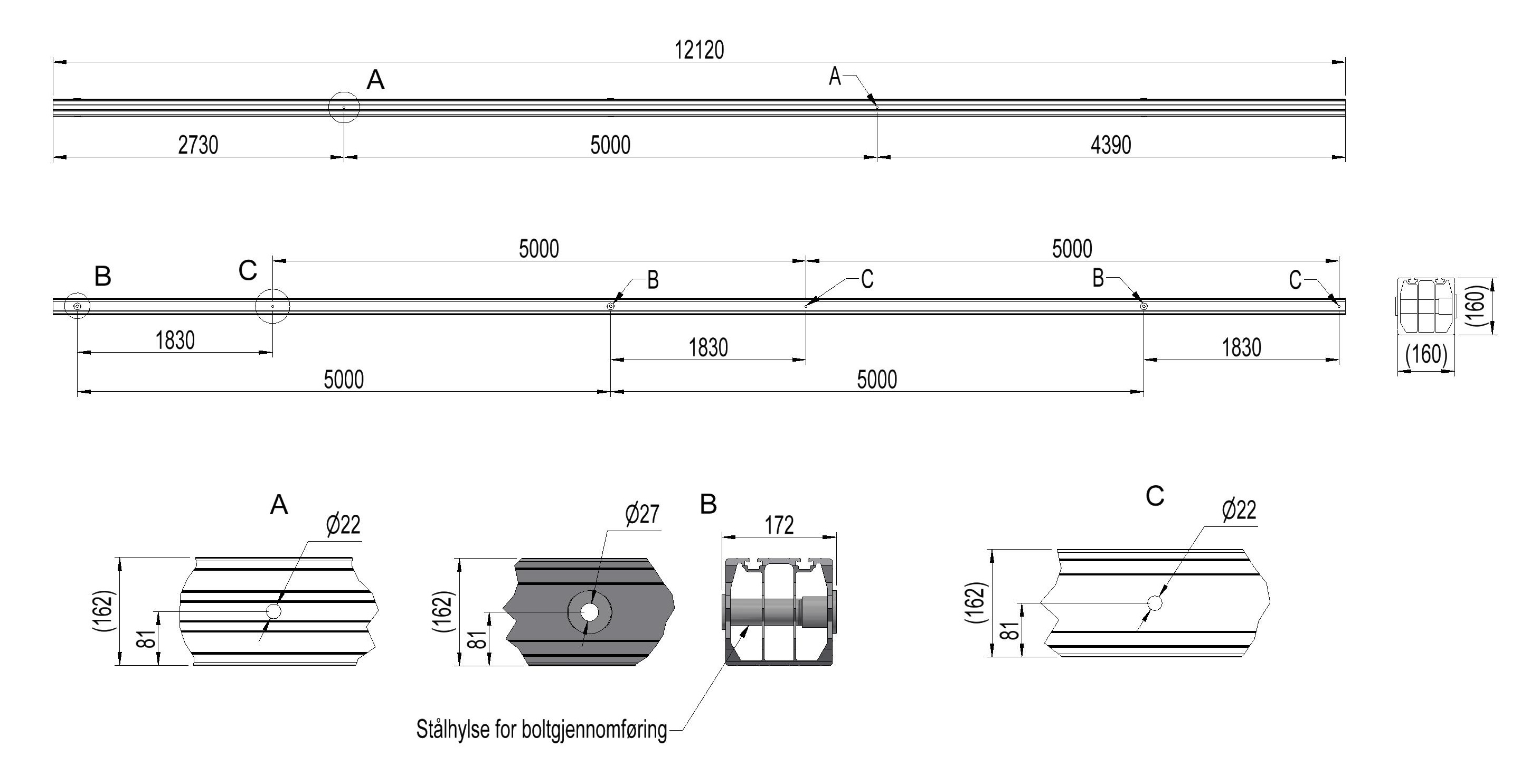

Anch. crossbar T3AOE-5050BH-8S

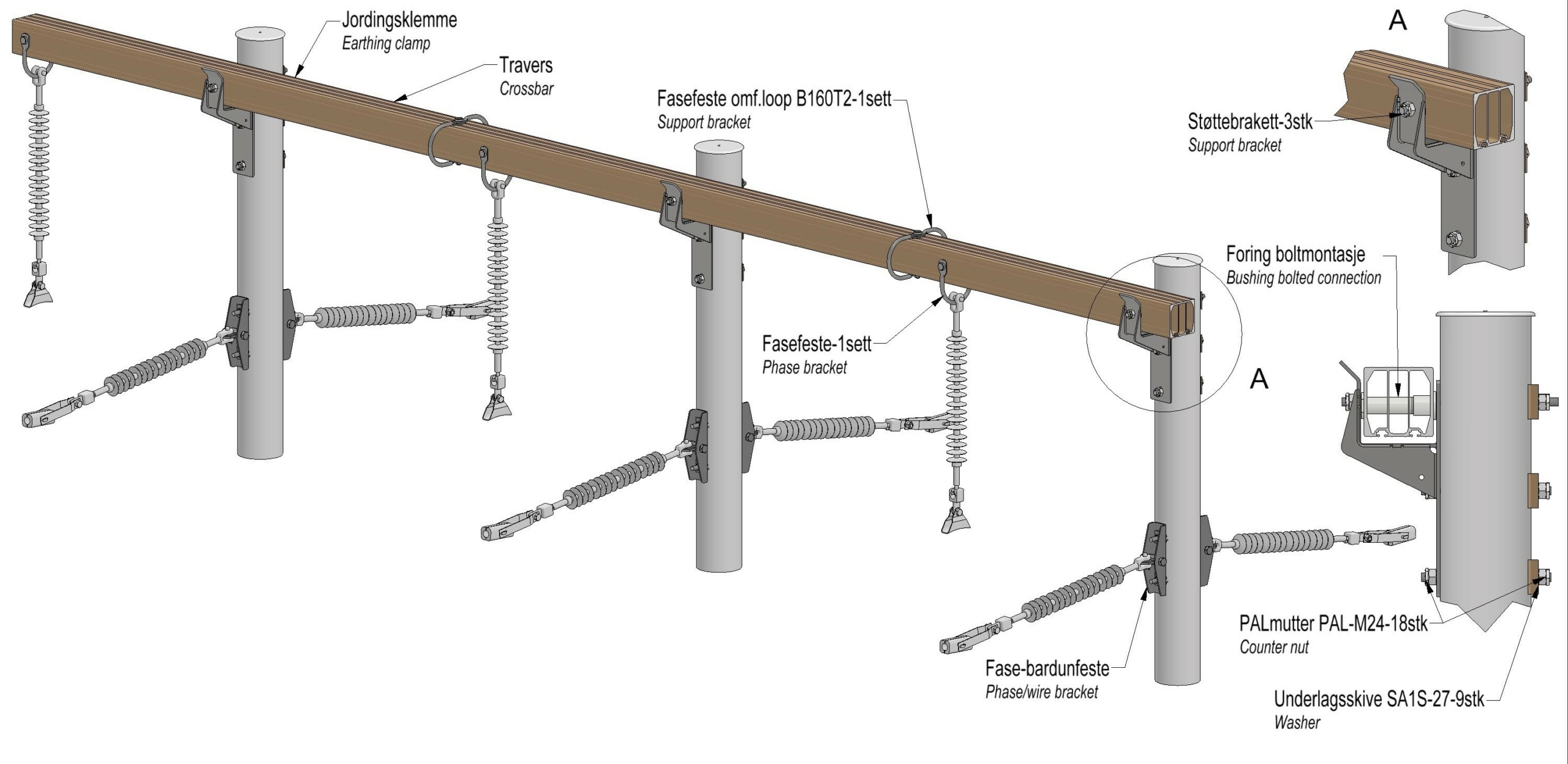

Anchoring crossbar for two-sided connection. 3-pole.
For overhead shield wires and face wire loop.
Pole distance 5m, phase distanse 5m. Must always be used with support.
Bolted connection M24.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Material-2 | Steel galvanised |
| Crossarm type | Triple pole |
| Pole distance | 5m |
| Phase distance | 5m |
| Pole fastening | Bolt with bolt sleeve |
| Crossbar profile | P8 (160×160) |
Related products
-
Phase bracket F160-8E
2836733anchorsfeste one-sided. For crossbar P8, width 160. Unit set of 3.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Counter nut PAL-M24 VF DIN7967
2836447Self locking counter nut to secure nuts. These are made of spring-like steel and is a better alternative than using regular nuts as counter nut.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Phase bracket F160-8TA
2836749Phase bracket two-sided. For crossbar P8, width 160. Unit set of 3.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

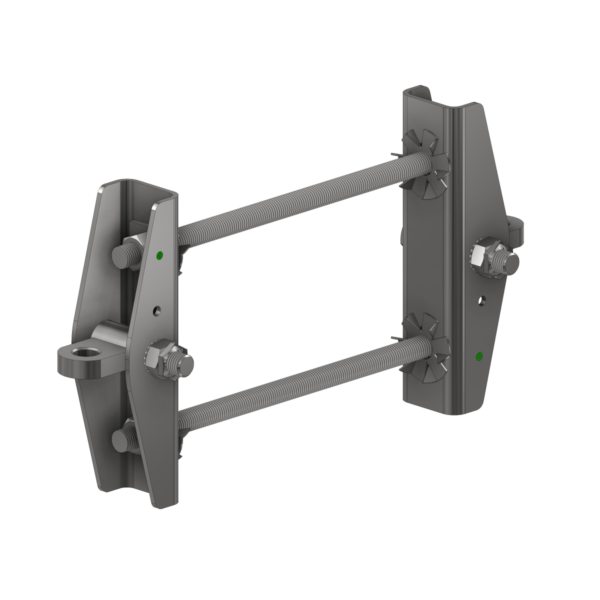

Phase/wire bracket FB200
2836748Phase/wire bracket two-sided. With bolts M24 and bolt distance 182-218mm.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Support bracket STB160-P8
2837406Support for bolted connection. For crossbar profile 8 and 3 (width 160mm).Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Earthing clamp J10V
2836837Earthing clamp M10 90-degree. For all crossbars except cable cross bars. For earth wire KHF25-50.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Washer SA1S-27
2836815Washer length 80mm. Hole 1xØ27mm. Important: always to be used to the crossbar together with pole clamp.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Phase bracket F160-8E2
2836640anchorsfeste one-sided. For crossbar P8, width 160. Unit set of 2.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Phase bracket B160-8E
2836847Phase stirrup bracket one-sided. Suits crossbar P3, P8, width 160. Unit set of 3.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

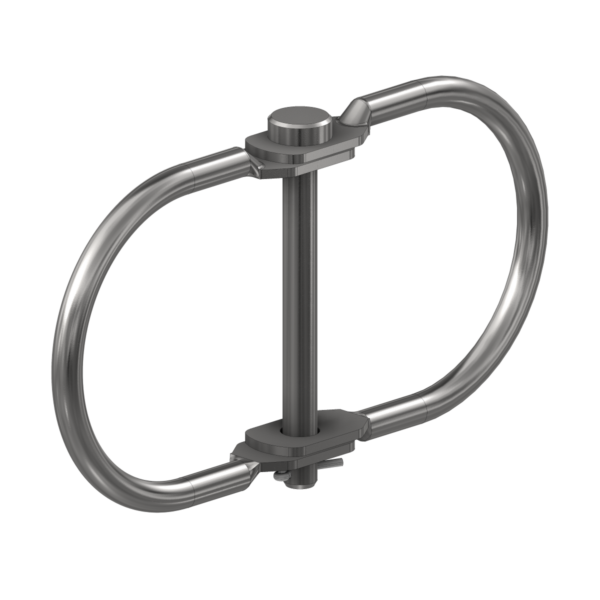

Phase bracket B160T2
2836743Phase stirrup bracket two-sided for toppline. Suits crossbar P3, P8, width 160. Unit set of 2.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Earthing clamp J10
2836836Earthing clamp M10. Fits all crossbars with M10 profile tracks. For all crossbars except cable cross bars.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

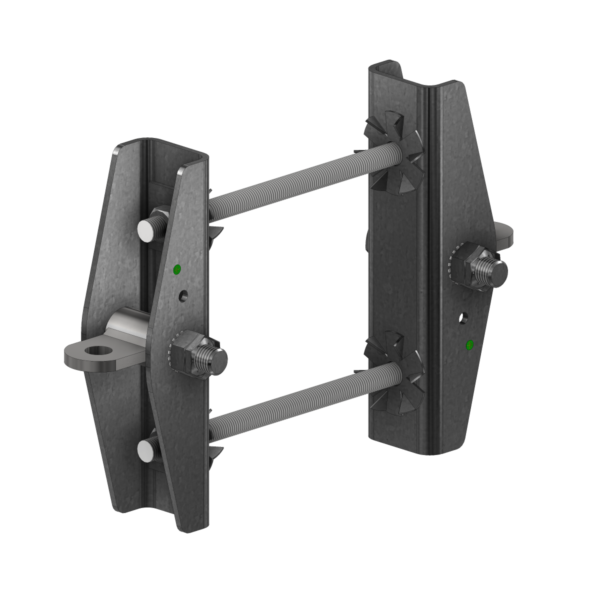

Phase/wire bracket FB160
