Anch. crossbar T3AOE-5050-7S

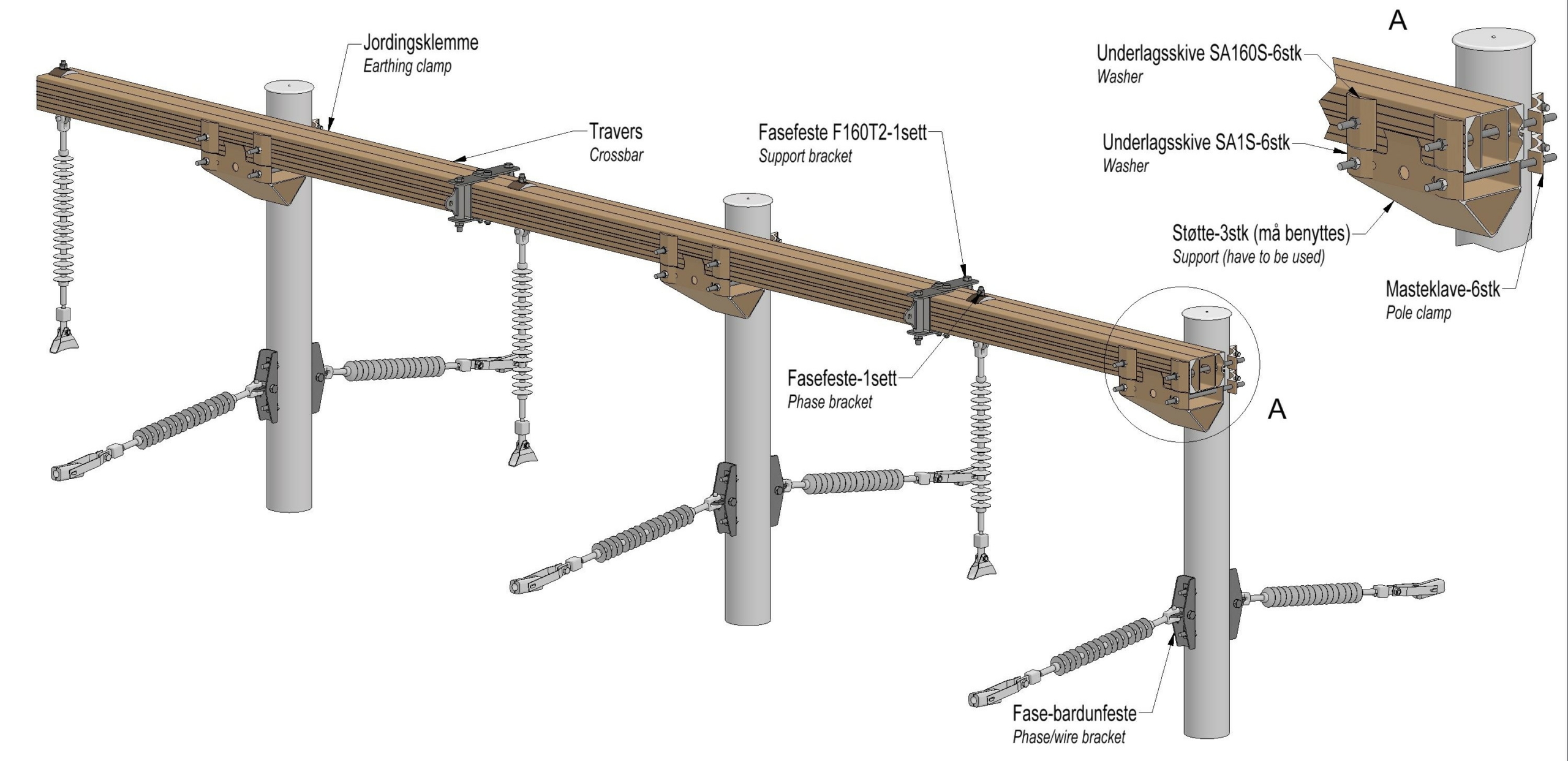

Anchoring crossbar for two-sided connection. 3-pole.
For overhead shield wires and face wire loop.

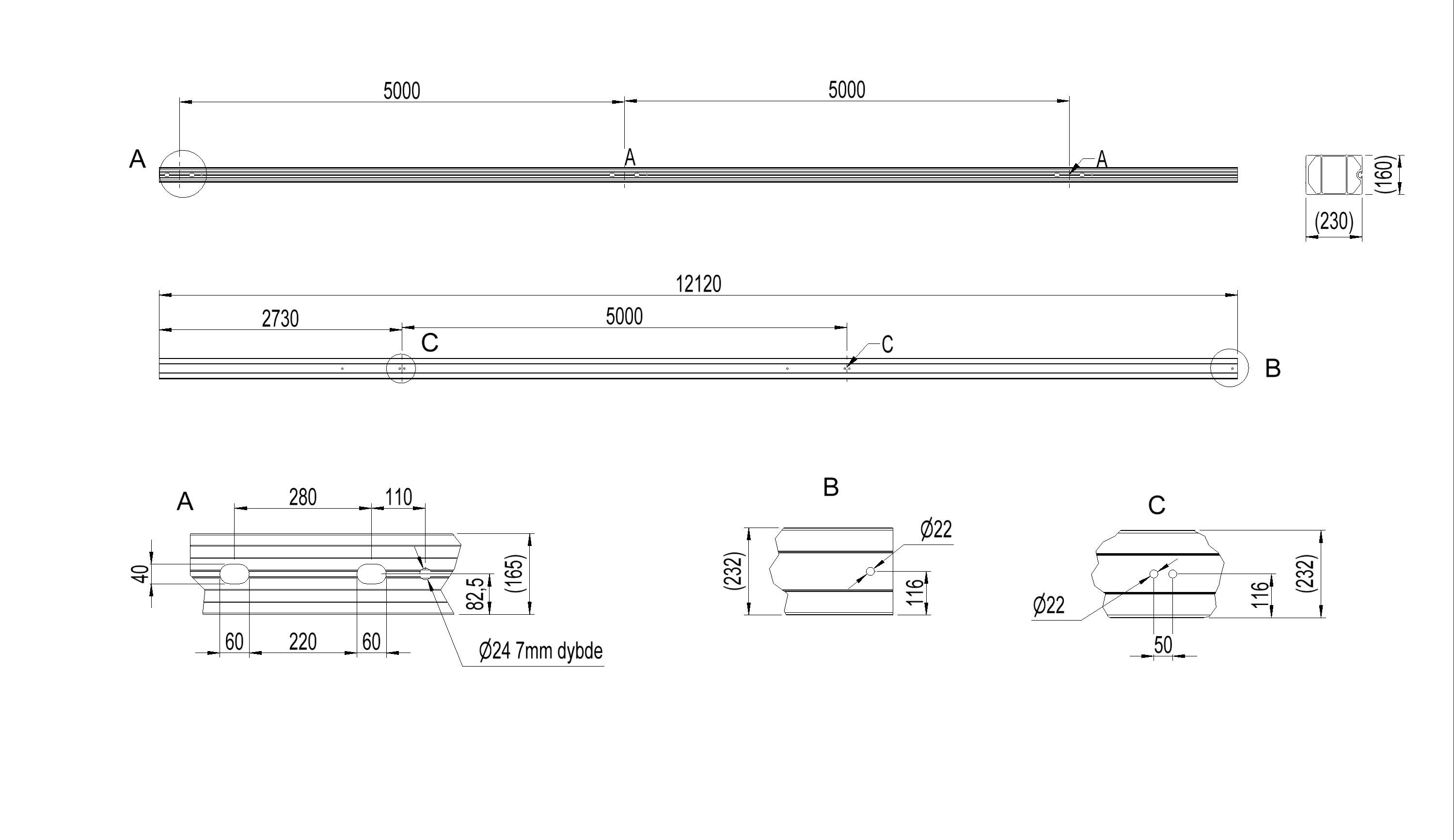

Pole distance 5m, phase distanse 5m. Must always be used with support.
Oblong hole distance 280mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 5m |
| Phase distance | 5m |
| Pole fastening | 280mm-single poleclamp |
| Crossbar profile | P7 (160×230) |
