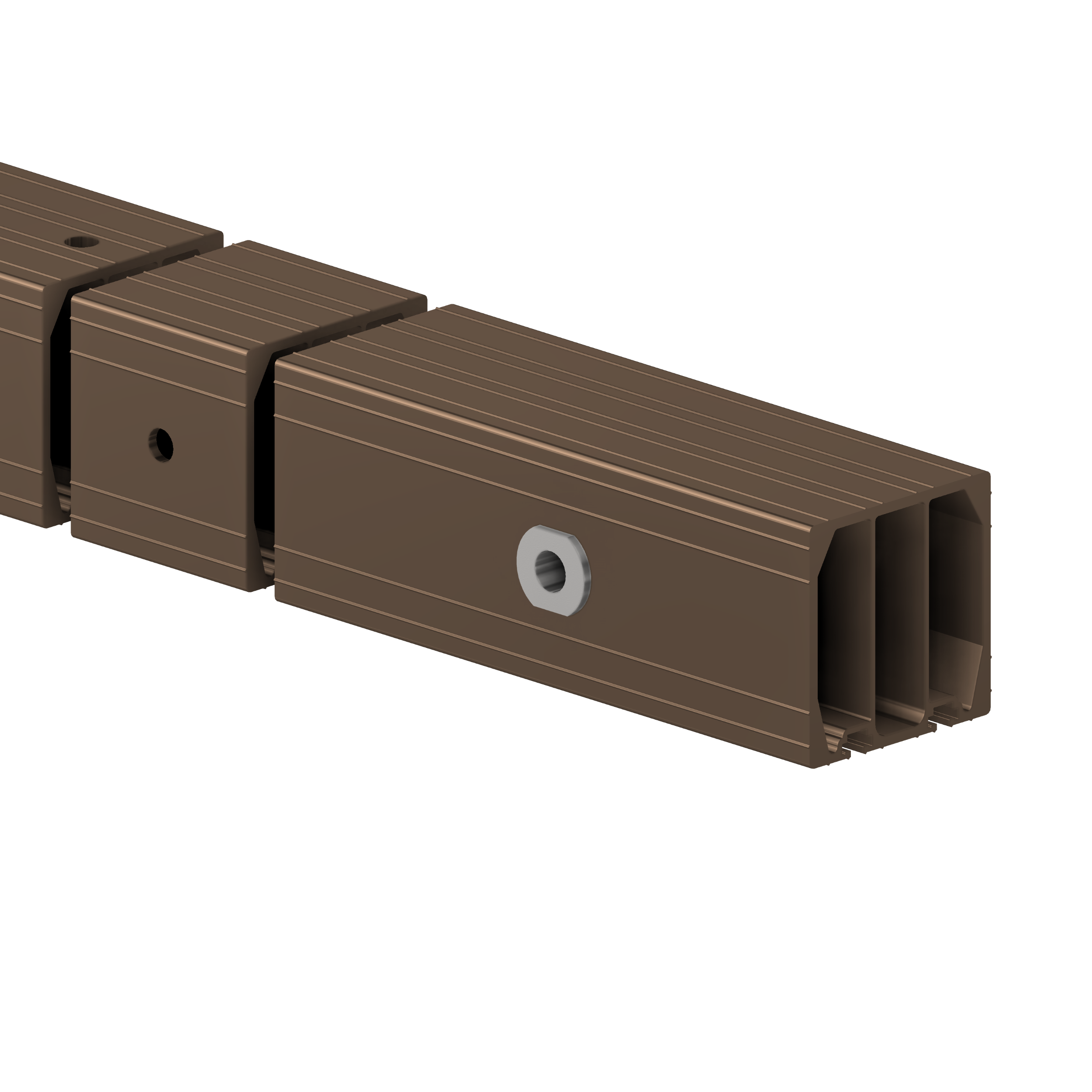

Anch. crossbar T3AOE-4545BH-8S
Anchoring crossbar for two-sided connection. 3-pole.
For overhead shield wires and face wire loop.

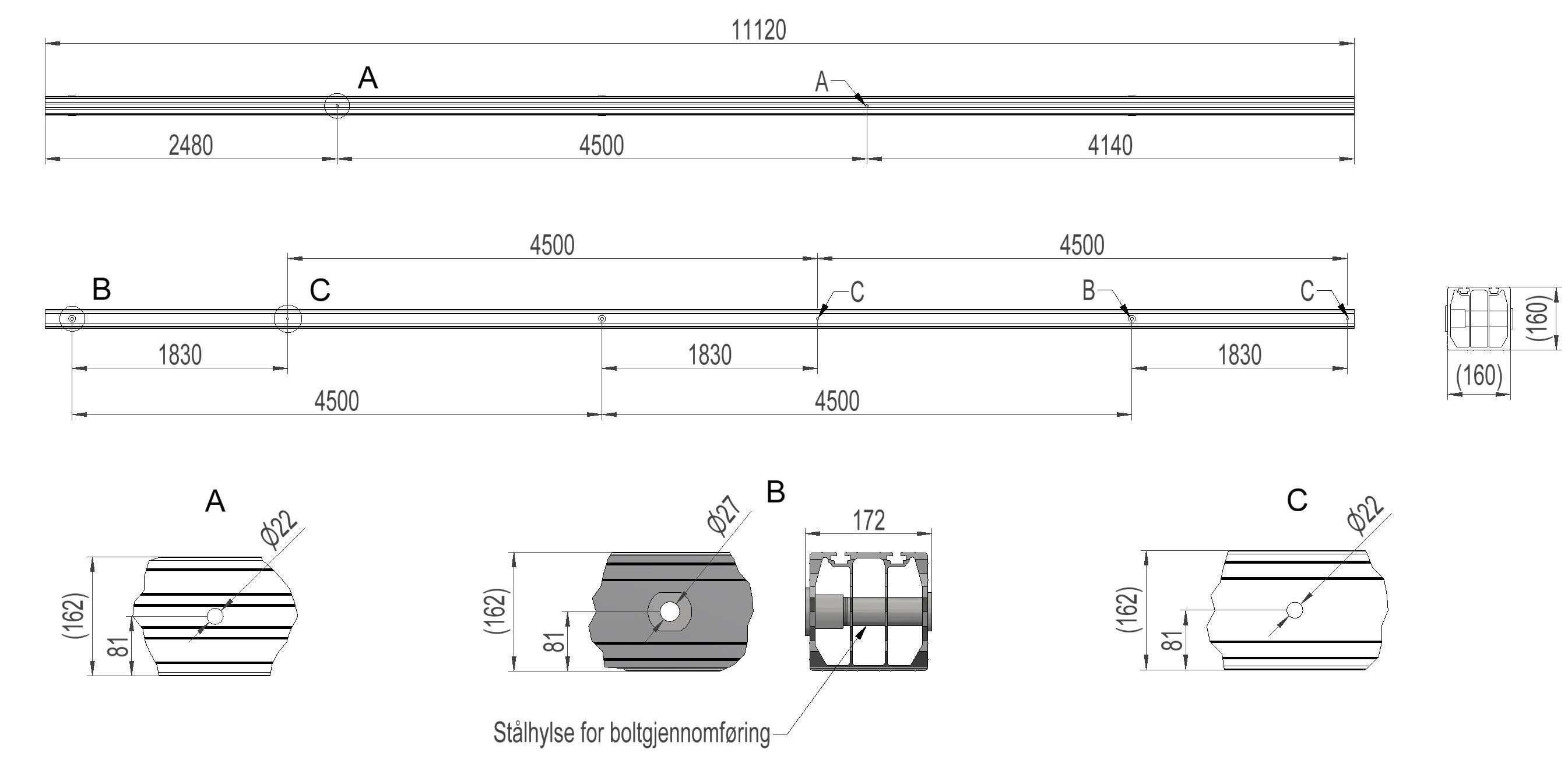

Pole distance 4,5m, phase distanse 4,5m. Must always be used with support.
Bolted connection M24.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Material-2 | Steel galvanised |
| Crossarm type | Triple pole |
| Pole distance | 4,5m |
| Phase distance | 4,5m |
| Pole fastening | Bolt with bolt sleeve |
| Crossbar profile | P8 (160×160) |
