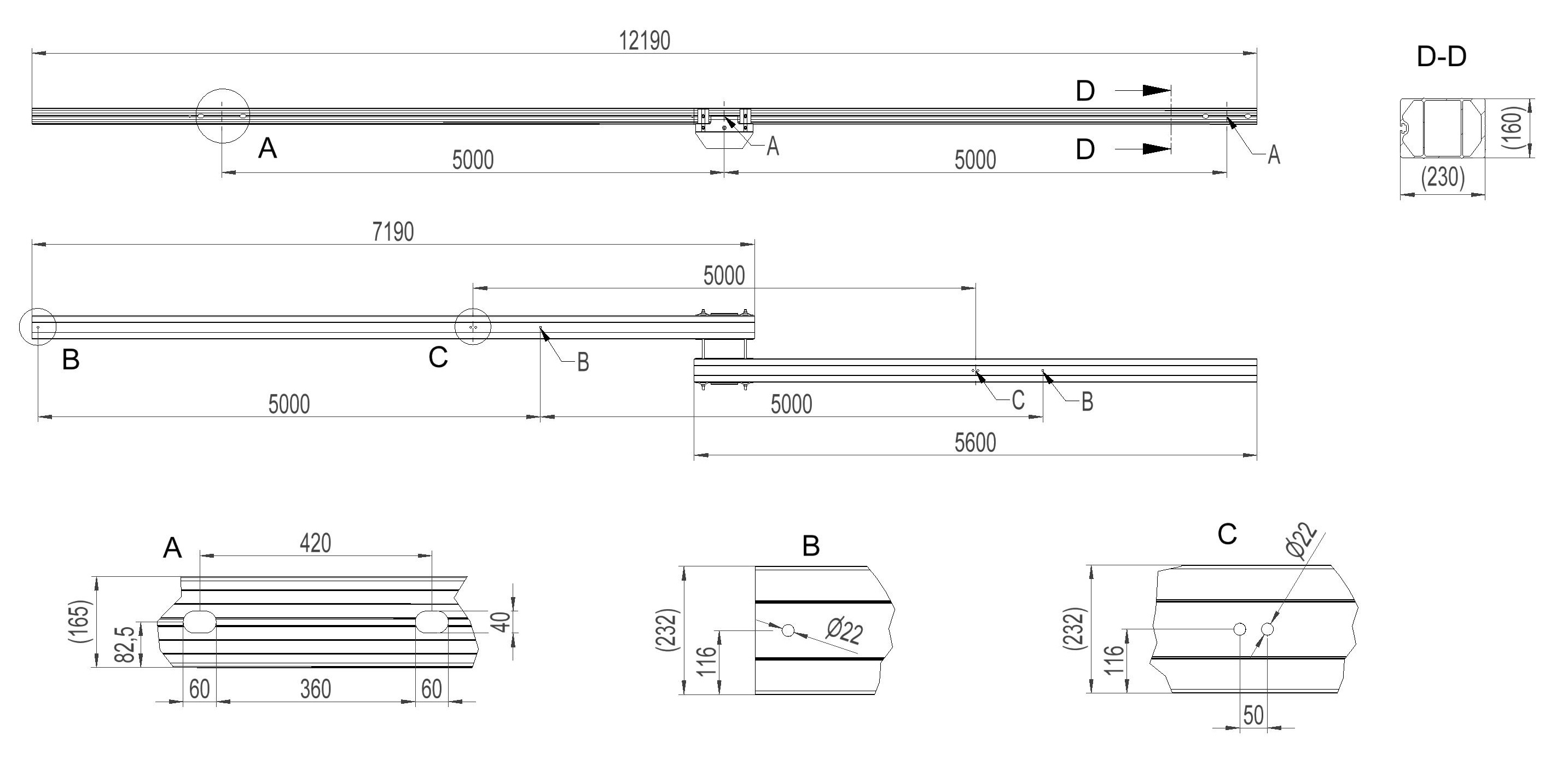

Anch. crossbar T3AO-5050-42-7S
Anchoring crossbar for two-sided connection. 3-pole.
For overhead shield wires and face wire loop. Two-piece crossbar included fasteners and support brackets for the middle pole.
Pole distance 5m, phase distanse 5m. Must always be used with support.
Oblong hole distance 420mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 5m |
| Phase distance | 5m |
| Pole fastening | 420mm-single pole clamp |
| Crossbar profile | P7 (160×230) |
Related products
-
Earthing clamp J10
2836836Earthing clamp M10. Fits all crossbars with M10 profile tracks. For all crossbars except cable cross bars.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Washer SA160S
2836829Washer length 143mm. Hole 1xØ22mm. Important: always to be used to the crossbar together with pole clamp.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Washer SA1S
2836894Washer length 80mm. Hole 1xØ22mm. Important: always to be used to the crossbar together with pole clamp.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Phase/wire bracket FB200
2836748Phase/wire bracket two-sided. With bolts M24 and bolt distance 182-218mm.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Phase bracket FHO160
2836789Phase bracket for omførings-isolator. For crossbar height max 170mm and bolt M20. Unit set of 3.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Phase/wire bracket FB160
2836744Phase/wire bracket two-sided. With bolts M20 and bolt distance 182-218mm.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Crossbar support ST230-42
2836425Support for crossbar width 230mm. Oblong hole distance 420mm. Always to be used with crossbar profile 7 (230x160).Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

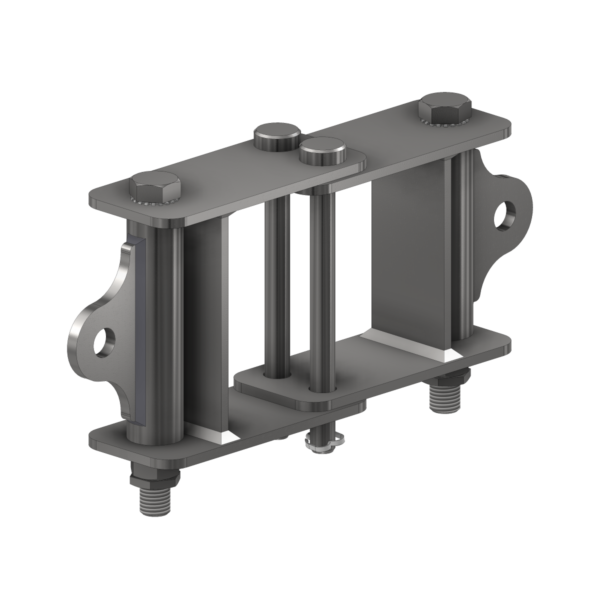

Phase bracket F160T2
