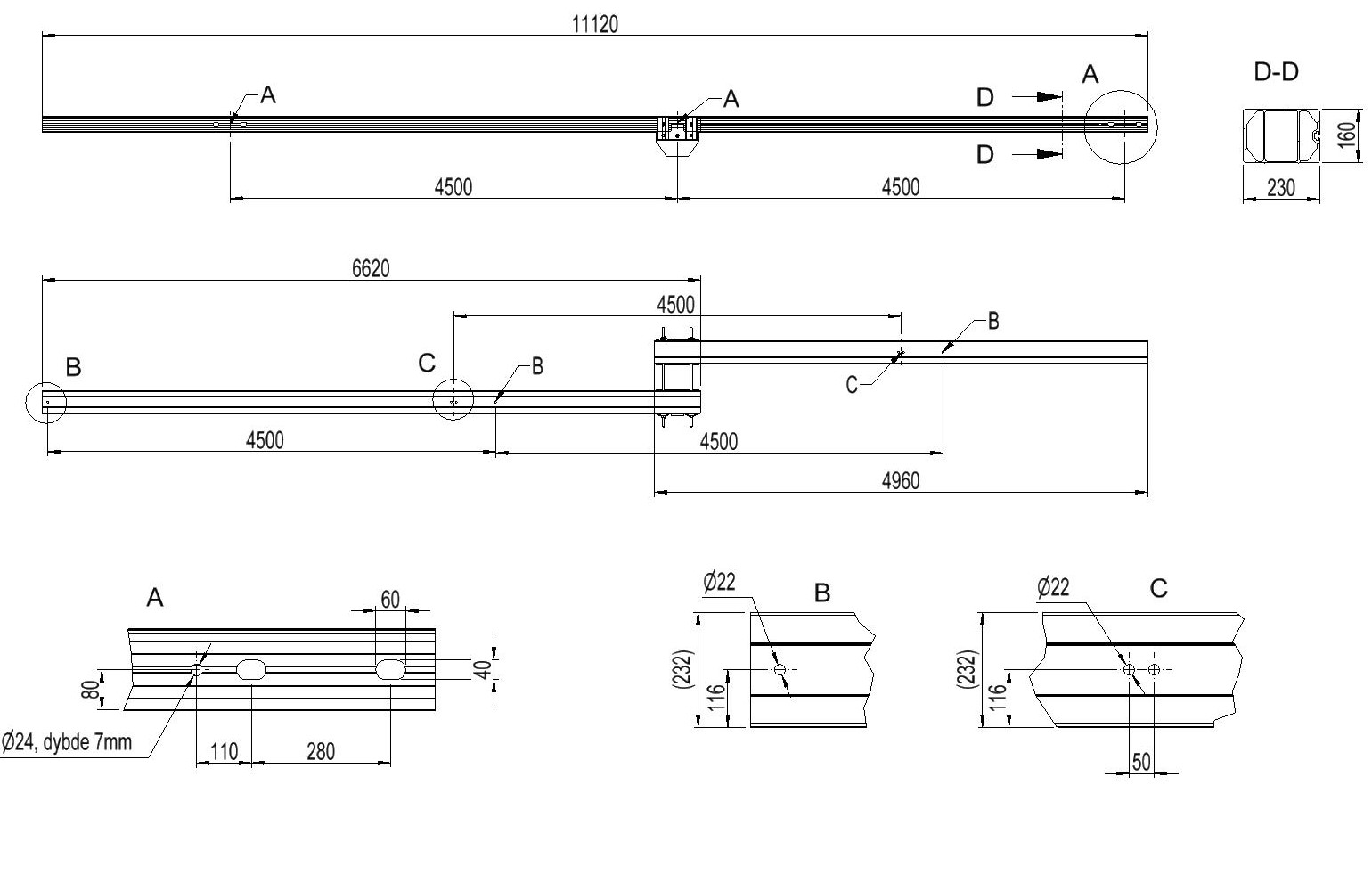

Anch. crossbar T3AO-4545-7S
Anchoring crossbar for two-sided connection. 3-pole.

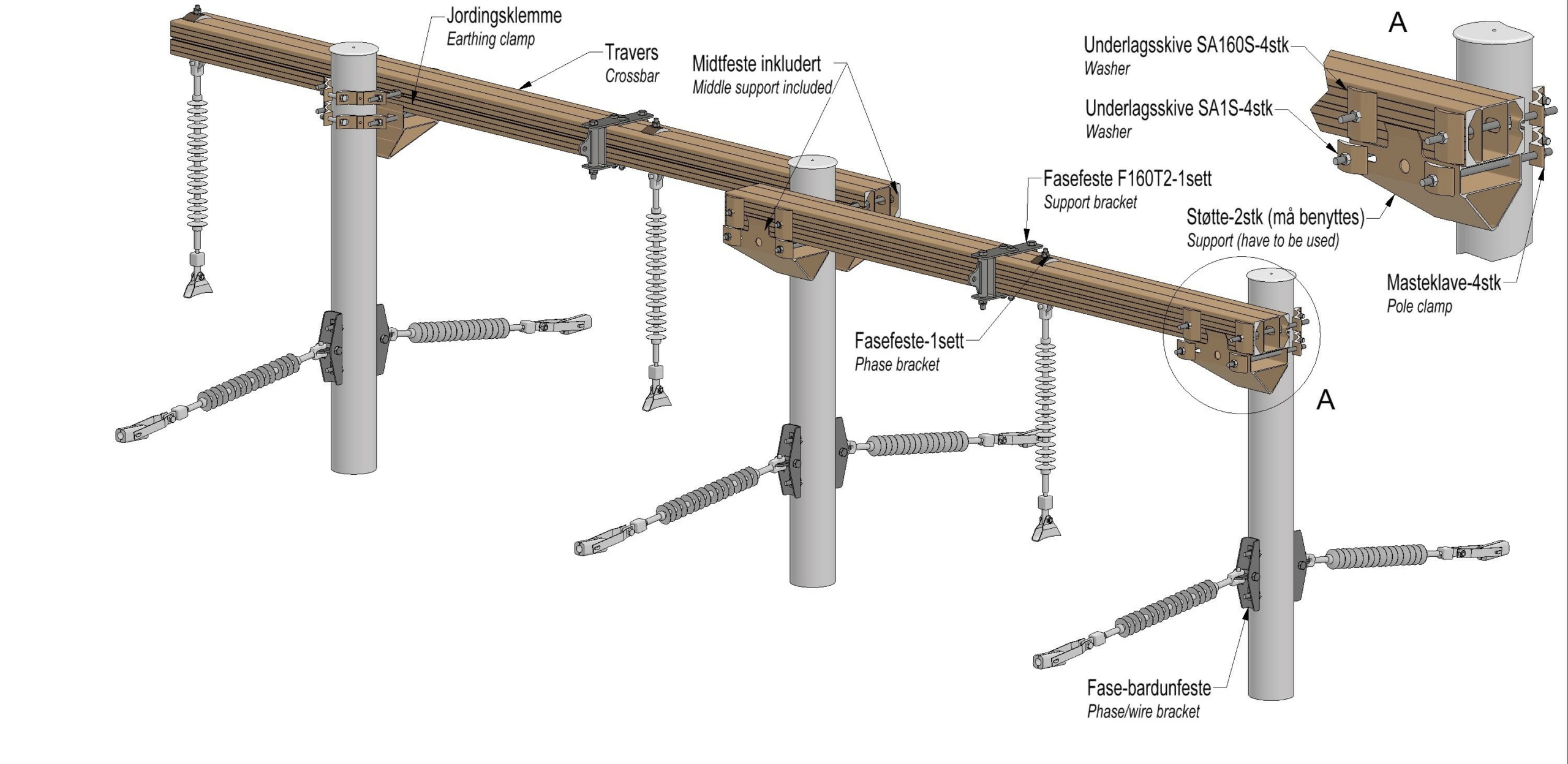

For overhead shield wires and face wire loop. Two-piece crossbar with fasteners for the middle pole.
Pole distance 4,5m, phase distanse 4,5m. Must always be used with support.
Oblong hole distance 280mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 4,5m |
| Phase distance | 4,5m |
| Pole fastening | 280mm-single poleclamp |
| Crossbar profile | P7 (160×230) |
