Anch. crossbar T3AFO-4545-3S

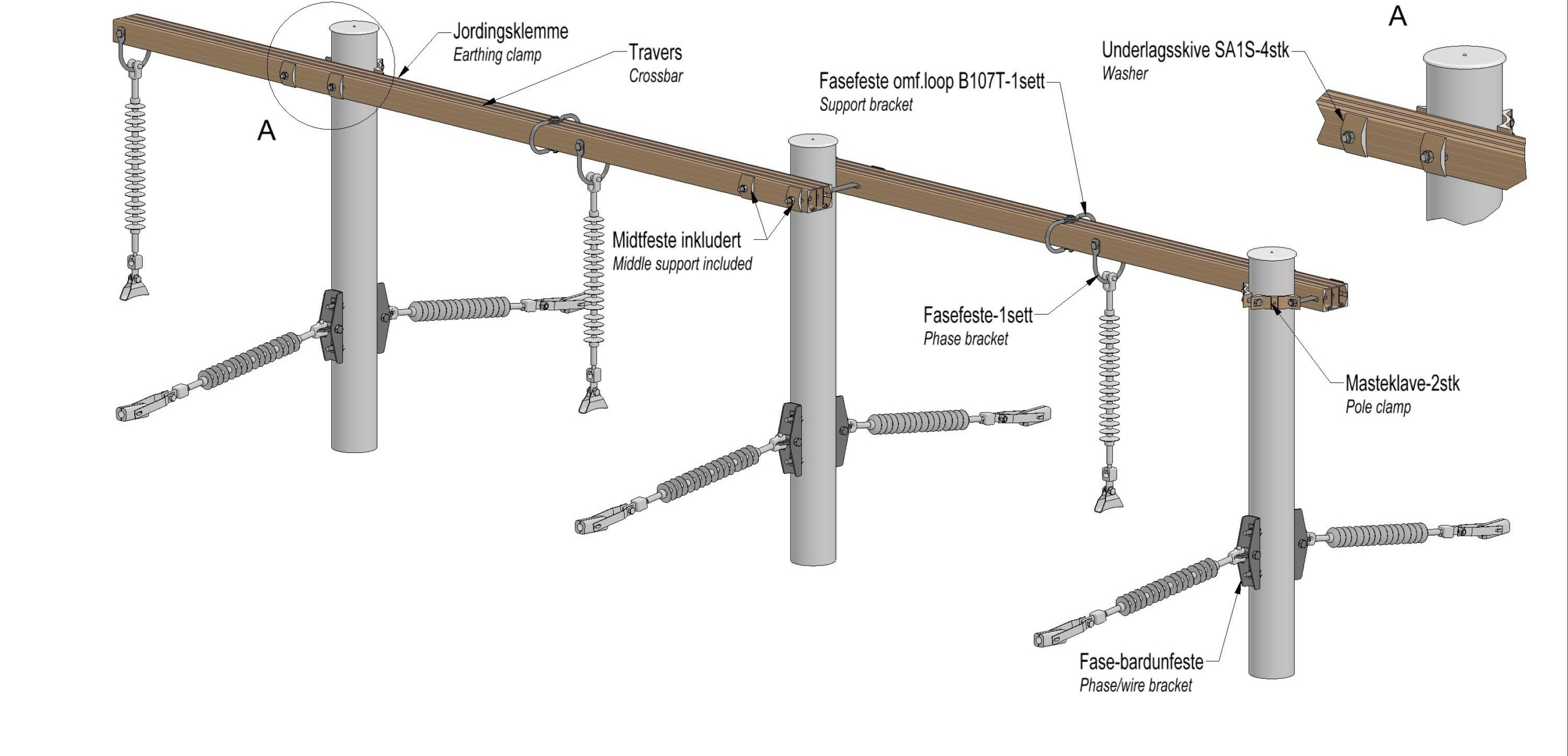

Anchoring crossbar for two-sided connection. 3-pole.
For overhead shield wires and face wire loop. Two-piece crossbar with fasteners for the middle pole.

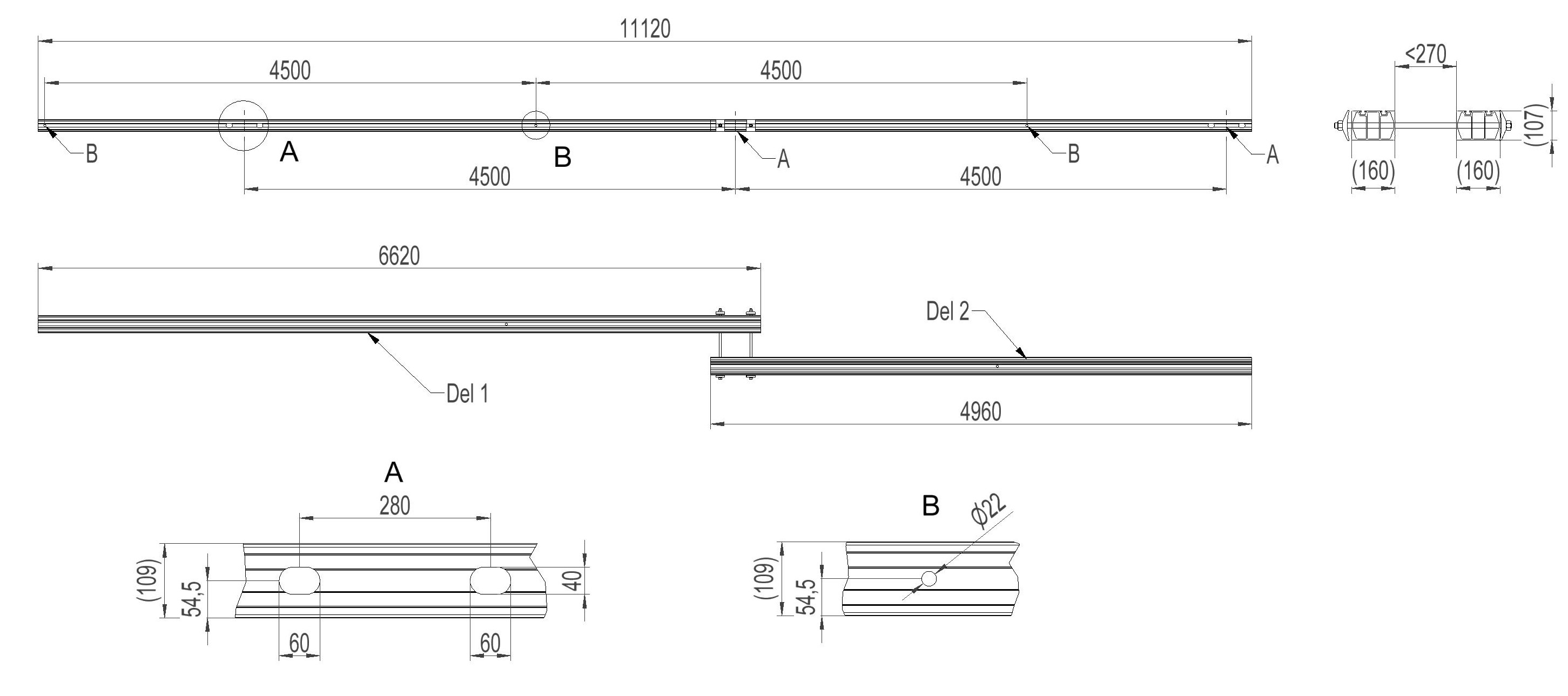

Pole distance 4,5m, phase distanse 4,5m.
Oblong hole distance 280mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 4,5m |
| Phase distance | 4,5m |
| Pole fastening | 280mm-single poleclamp |
| Crossbar profile | P3 (107×160) |
