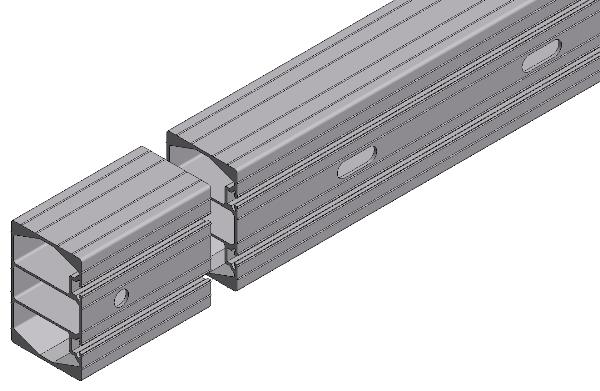

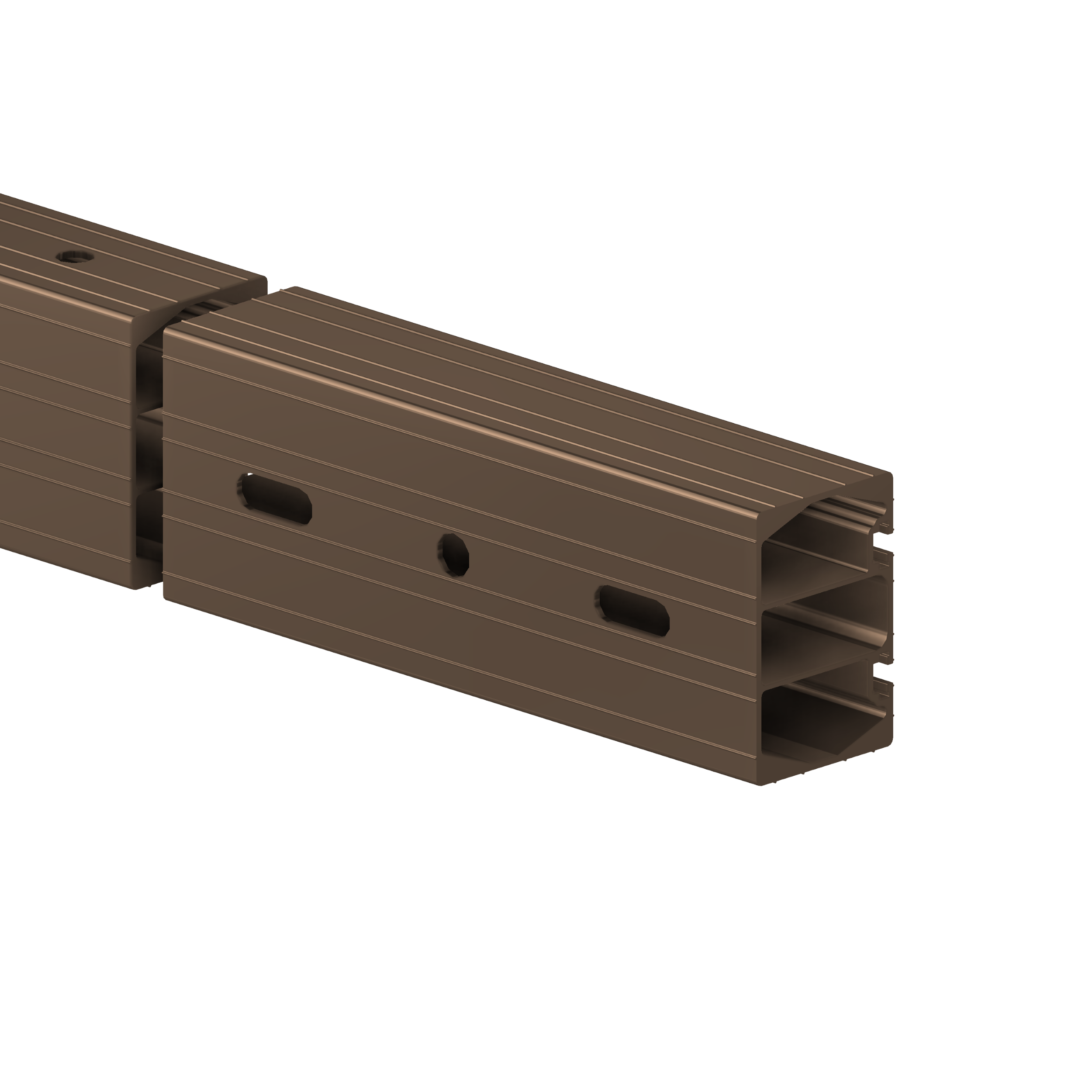

Anch. crossbar T3AO-33-3S
Anchoring crossbar for two-sided connection. 3-pole.

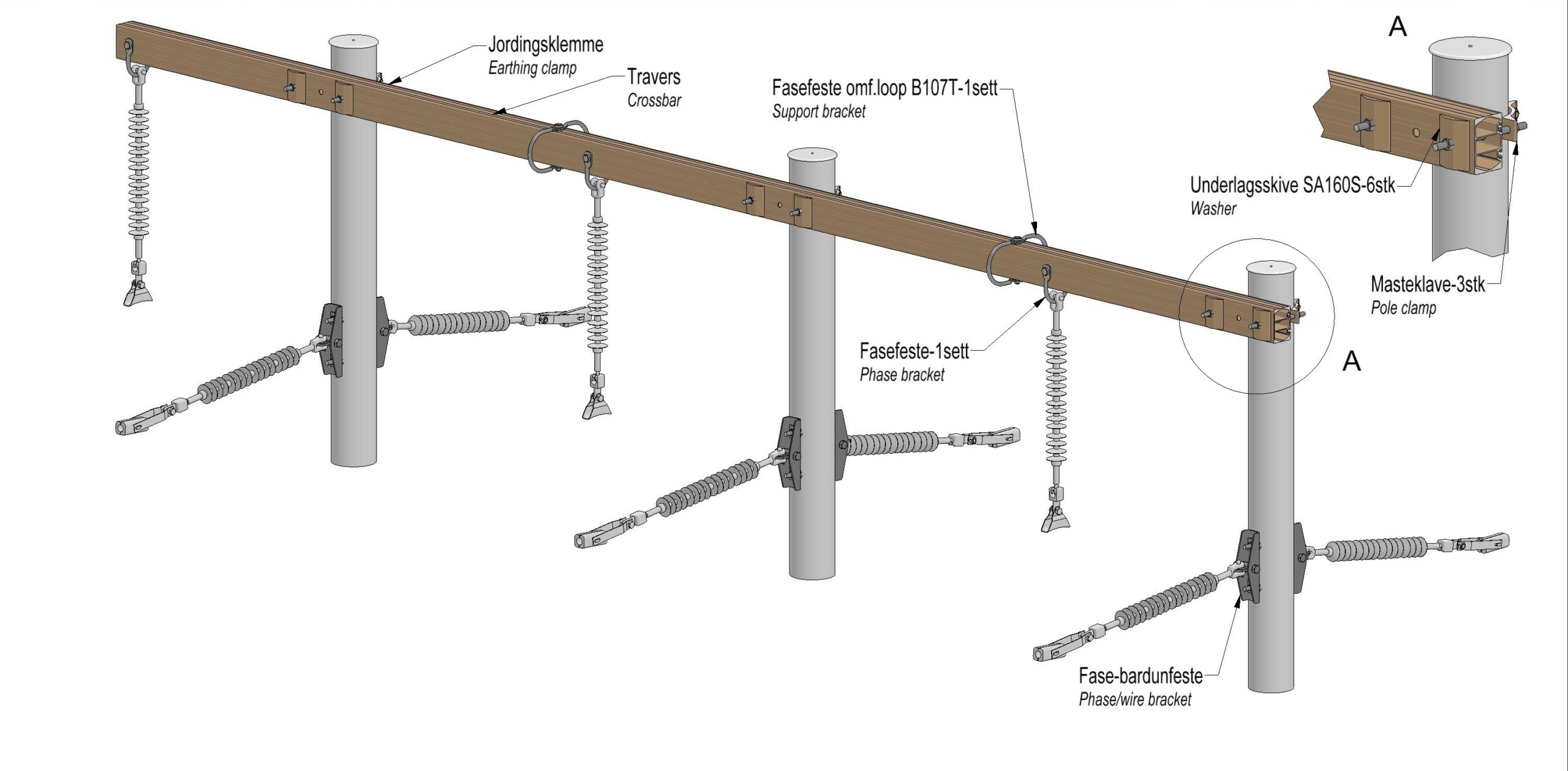

For overhead shield wires and face wire loop.

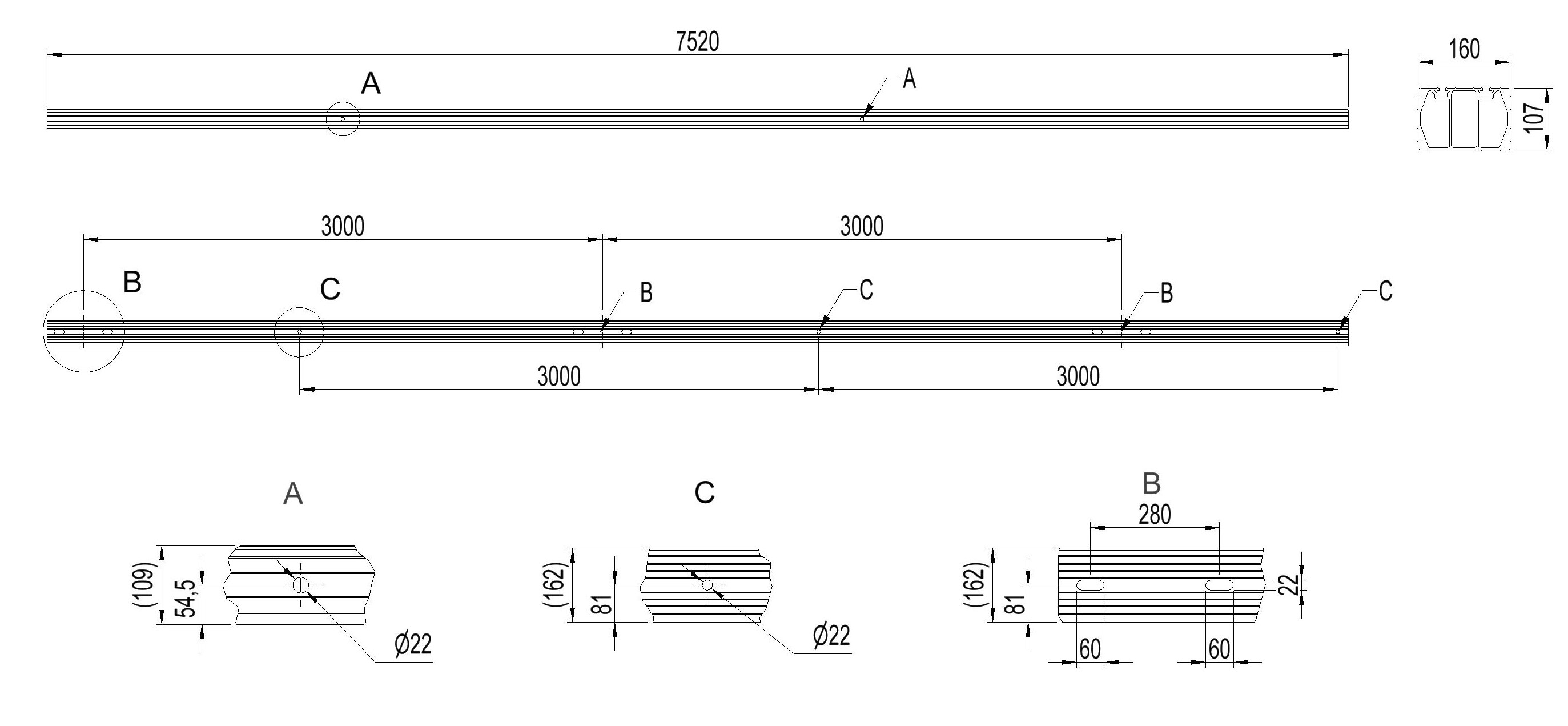

Pole distance 3m, phase distanse 3m.
Oblong hole distance 280mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 3m |
| Phase distance | 3m |
| Pole fastening | 280mm-single poleclamp |
| Crossbar profile | P3 (107×160) |
