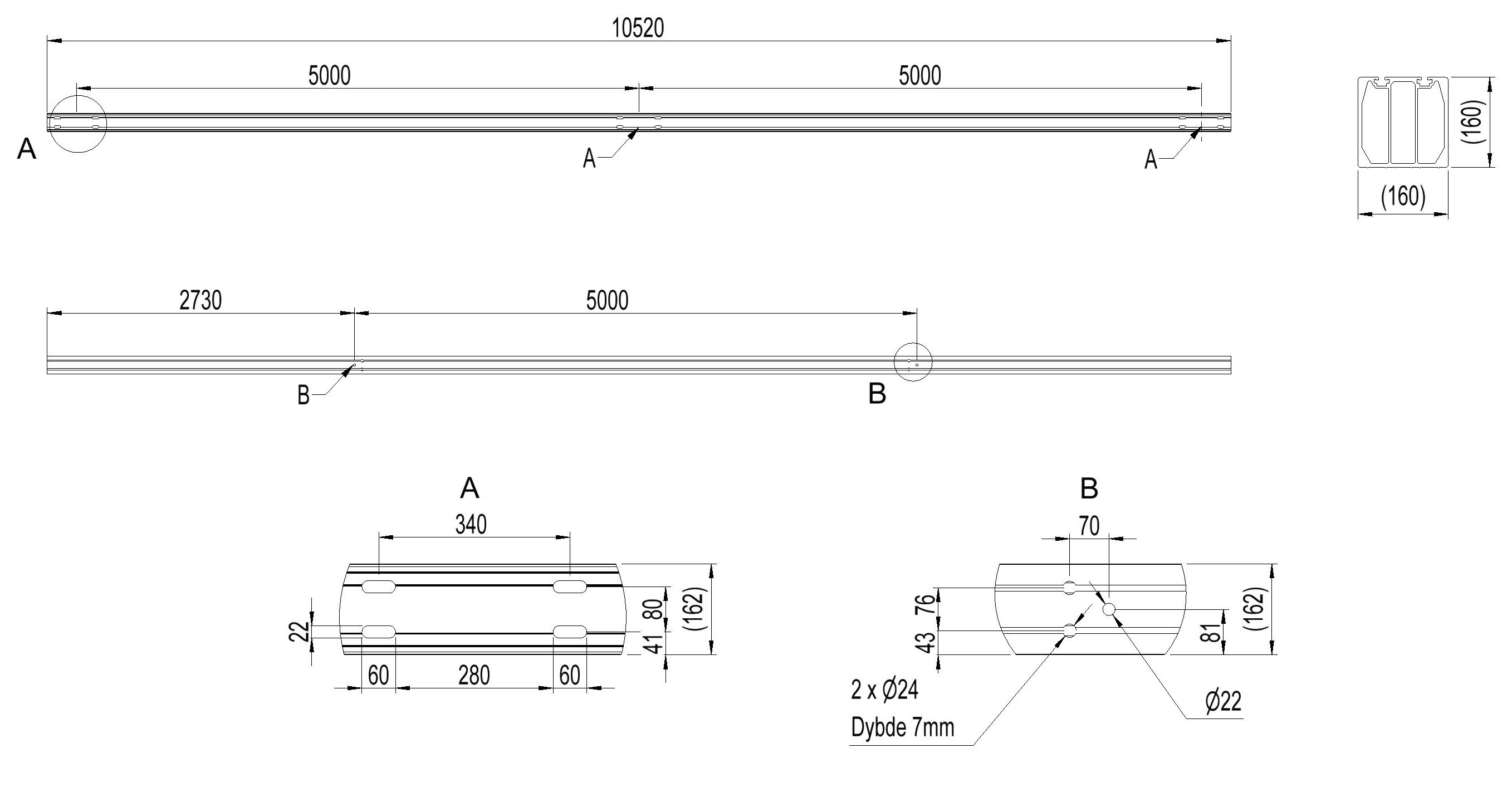

Anch. crossbar T3A-5050D-34-8S
Anchoring crossbar for two-sided connection. 3-pole.
For overhead shield wires.
Pole distance 5m, phase distanse 5m.
Twin pole clamp. Oblong hole distance 340mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 5m |
| Phase distance | 5m |
| Pole fastening | 340mm-double pole clamp |
| Crossbar profile | P8 (160×160) |
