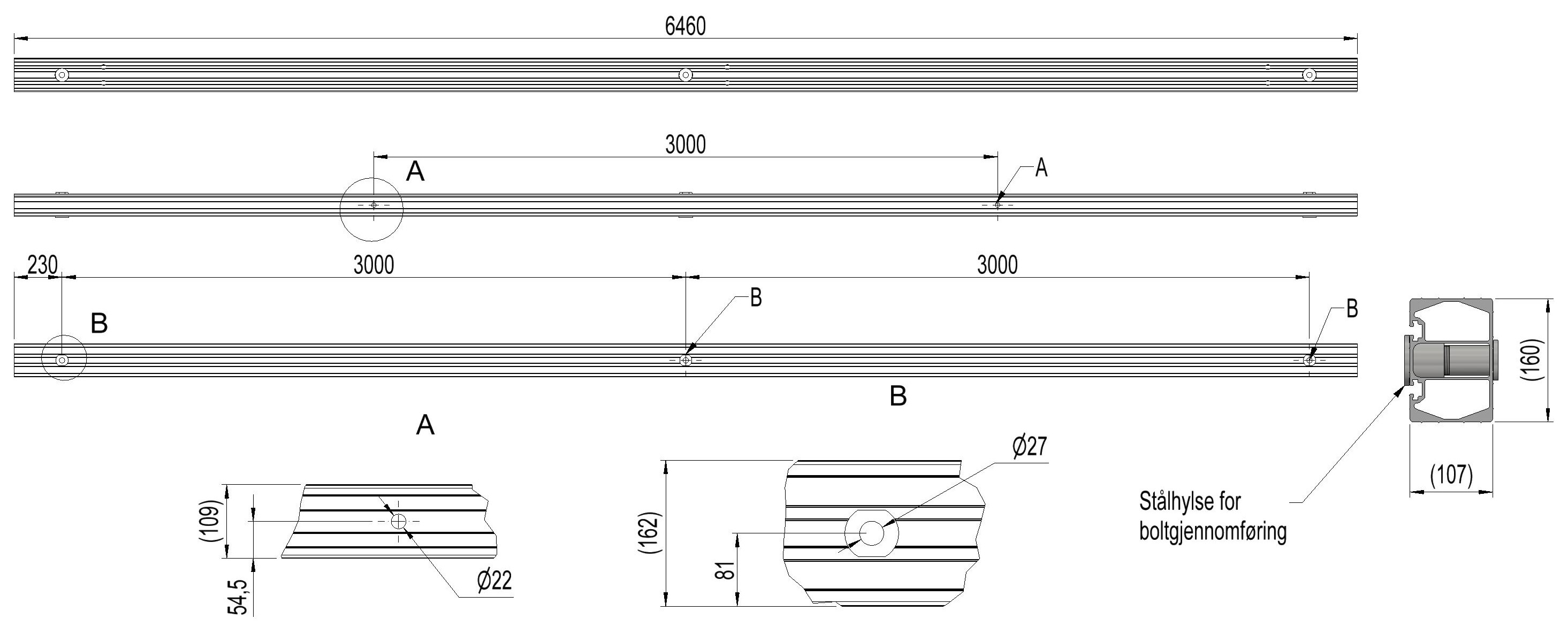

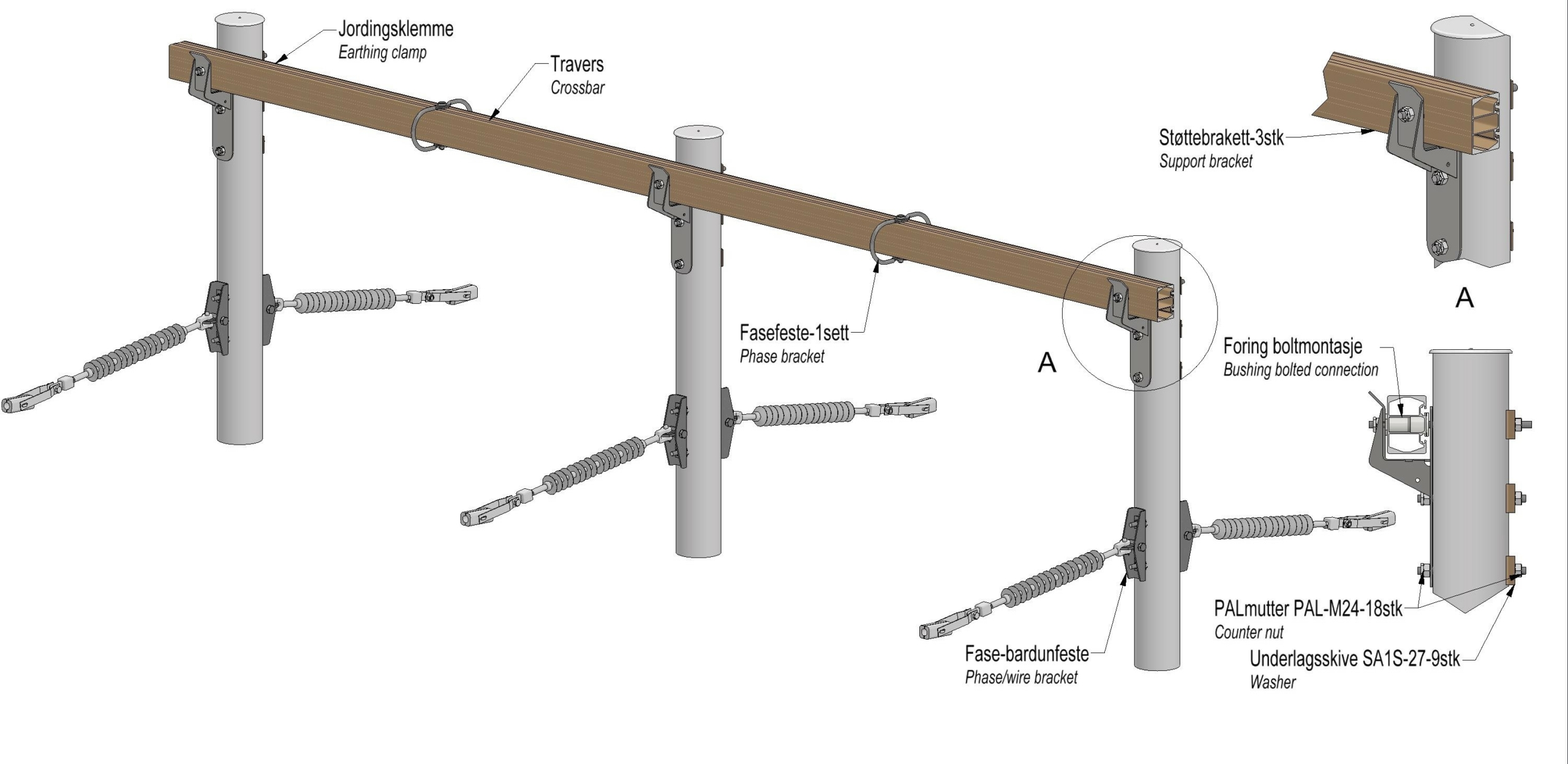

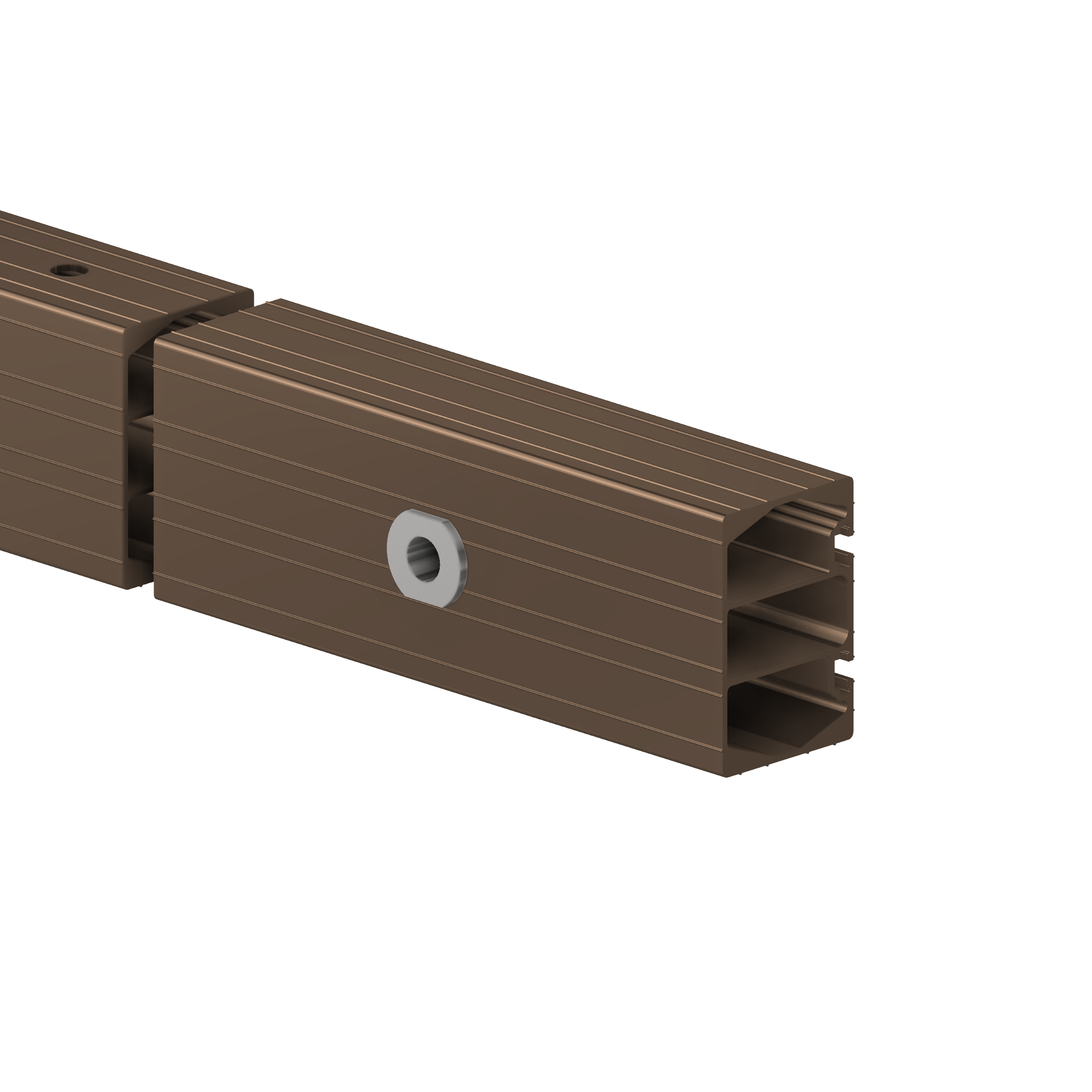

Anch. crossbar T3A-3030BH-3S
Anchoring crossbar for 3-pole.
For overhead shield wires.
Pole distance 3m, phase distanse 3m. Must always be used with support.
Bolted connection M24.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Material-2 | Steel galvanised |
| Crossarm type | Triple pole |
| Pole distance | 3m |
| Phase distance | 3m |
| Pole fastening | Bolt with bolt sleeve |
| Crossbar profile | P3 (107×160) |
