Material for Railway
Showing all 88 results
-
Al-bar S150
2857998Aluminium bar for cable duct. L=1,5m. For M8 bolts. -
Al-bar S20
2857996Aluminium bar for cable duct. L=200mm. For M8 bolts. -
Al-bar S27
2857958Aluminium bar for cable duct. L=270mm. For M8 bolts. -
Al-bar S300
2857999Aluminium bar for cable duct. L=3m. For M8 bolts. -

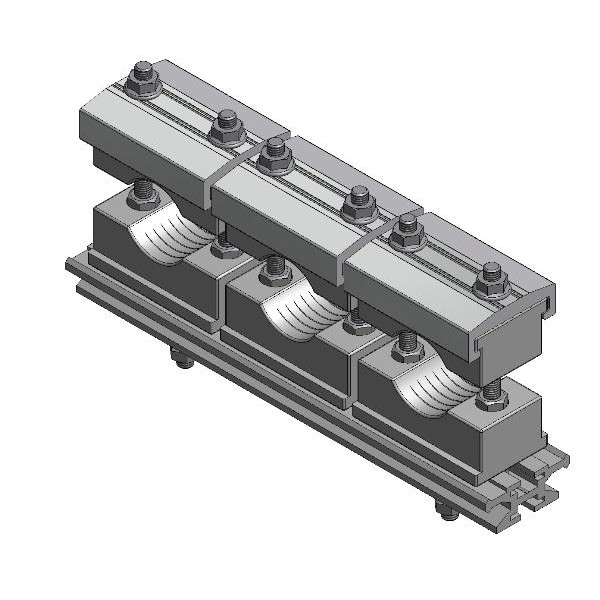

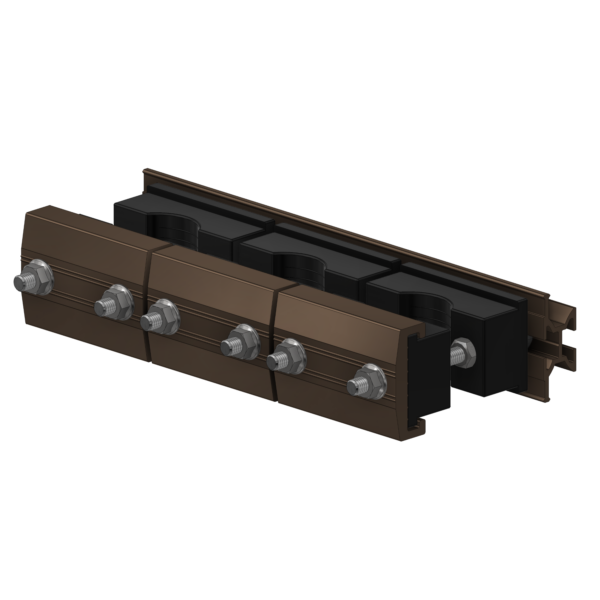

Al-bar SKSF3122-270
2859379Aluminium bar with 3xØ22-42mm cable clamps. With M8 bolts. -

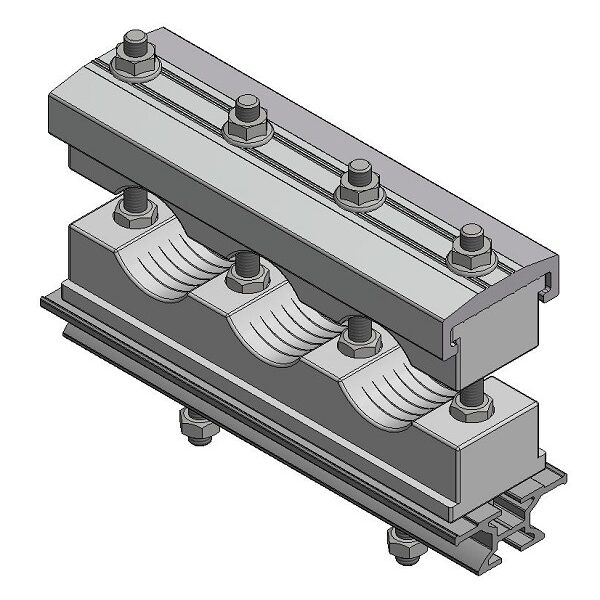

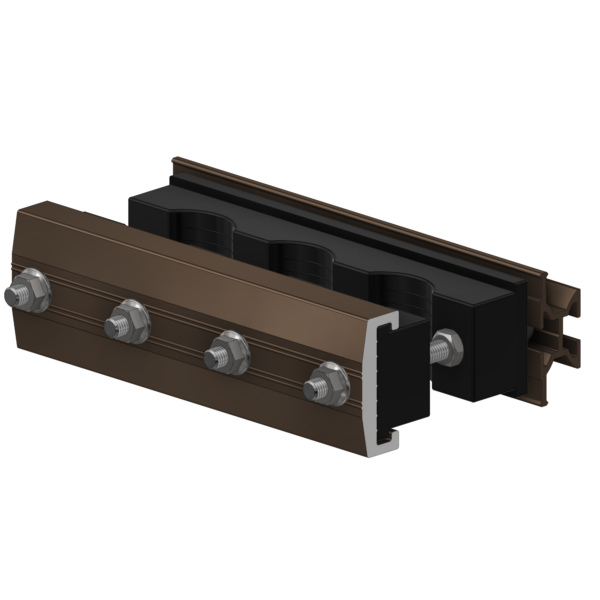

Al-bar SKSF322
2859498Aluminium bar with 3xØ22-42mm cable clamp. With M8 bolts. -

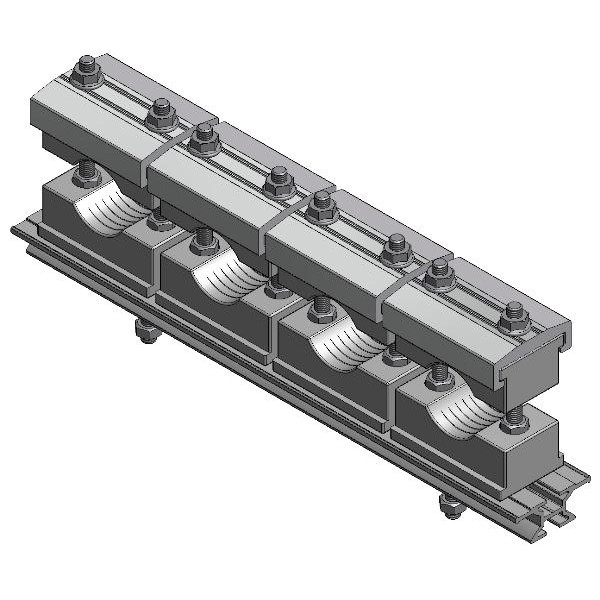

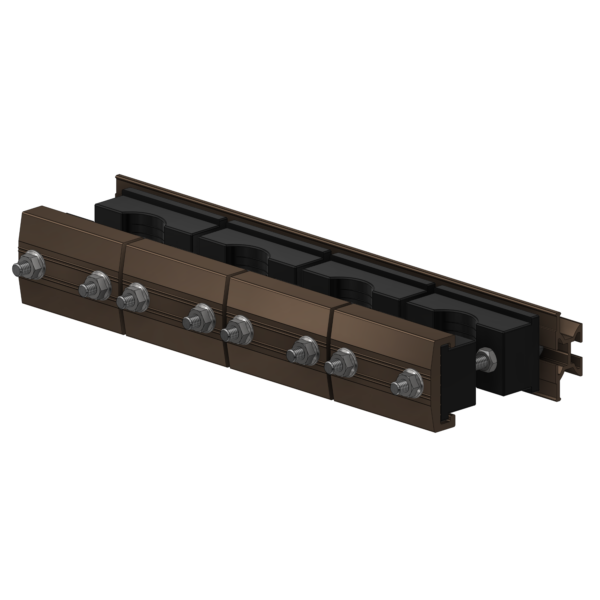

Al-bar SKSF4122-360
2859378Aluminium bar with 4xØ22-42mm cable clamps. With M8 bolts. -
Bracet FB-HE280
2857813Bracket with two tracks for M8 screws or nuts. For cables and equipment in HEB, HEM profiled mast and U-profiles. Thightening moment fastening screw 8Nm. Cable clamps of KSF type and other eqipment, can be installed in the tracks. Cable cover KDA-HE200-280, can be fastened to the bracket. -
Bracket FB-HE200-220
2857815Bracket with two tracks for M8 screws or nuts. For cables and equipment in HEB, HEM profiled mast and U-profiles. Thightening moment fastening screw 8Nm. Cable clamps of KSF type and other eqipment, can be installed in the tracks. Cable cover KDA-HE200-280, can be fastened to the bracket. -

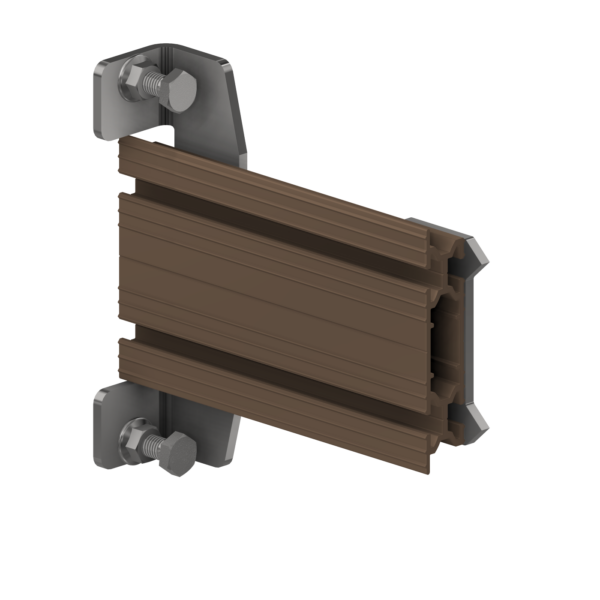

Bracket FB-HE240-260
2857812Bracket with two tracks for M8 screws or nuts. For cables and equipment in HEB, HEM profiled mast and U-profiles. Thightening moment fastening screw 8Nm. Cable clamps of KSF type and other eqipment, can be installed in the tracks. Cable cover KDA-HE200-280, can be fastened to the bracket. -

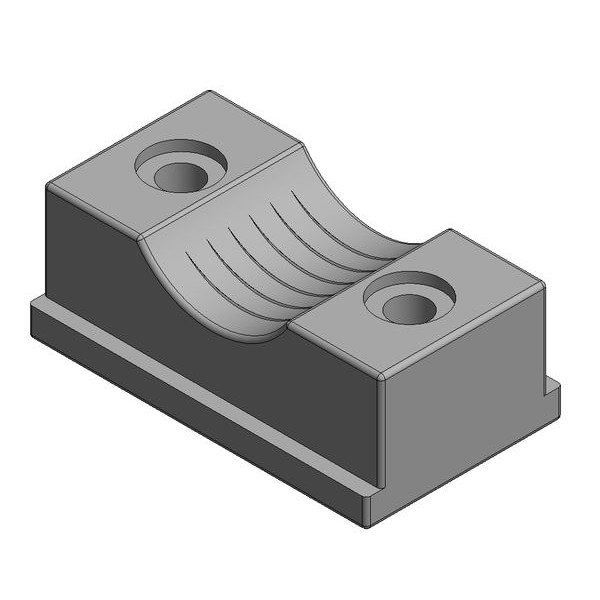

Cable clamp K122
2859385Cable clamp 1-cable Ø22-42mm. Half part without fasteners. Cable clamp rail have to be used on top as reinforcement. -

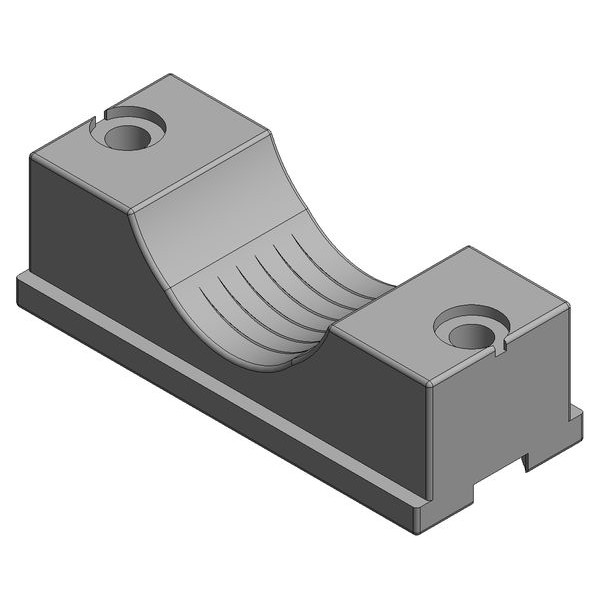

Cable clamp K142
2859386Cable clamp 1-cable Ø42-60mm. Half part without fasteners. Cable clamp rail have to be used on top as reinforcement. -

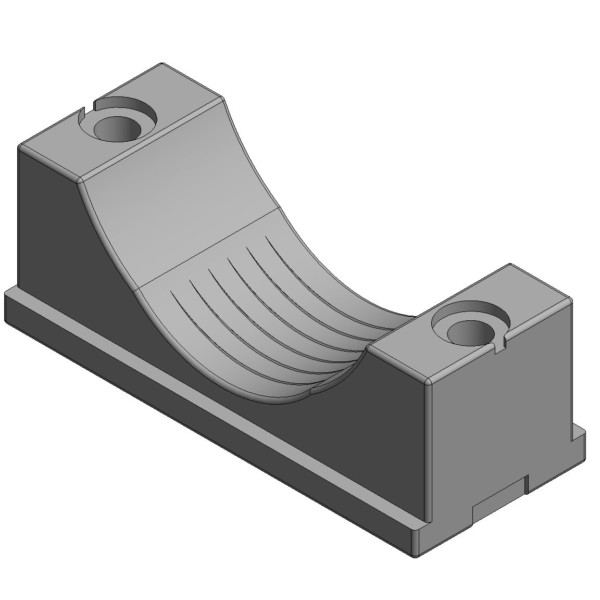

Cable clamp K160
2859387Cable clamp 1-cable Ø60-84mm. Half part without fasteners. Cable clamp rail have to be used on top as reinforcement. -

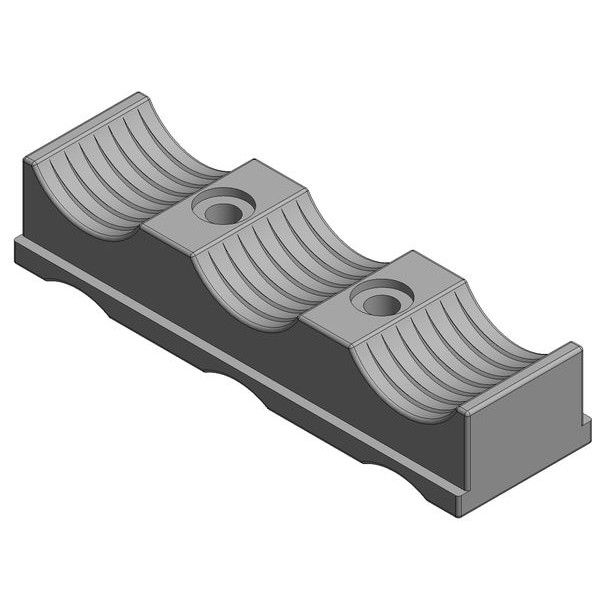

Cable clamp K317
2859388Cable clamp 3-cables Ø17-42mm. Half part without fasteners. Cable clamp rail have to be used on top as reinforcement. -

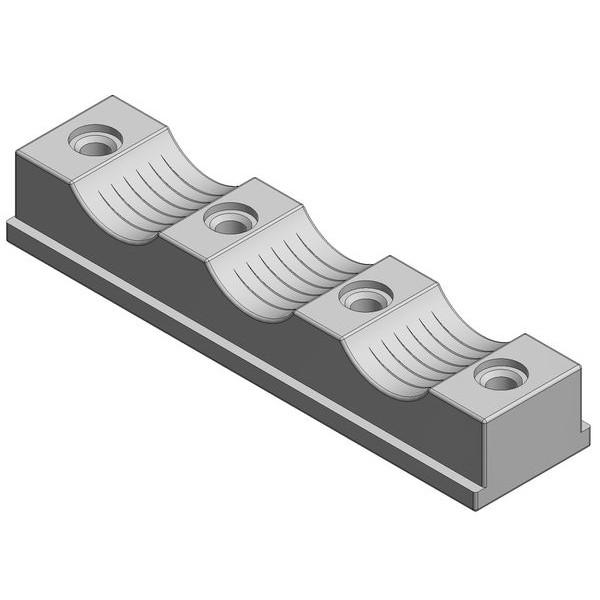

Cable clamp K322
2859389Cable clamp 3-cables Ø22-42mm. Half part without fasteners. Cable clamp rail have to be used on top as reinforcement. -

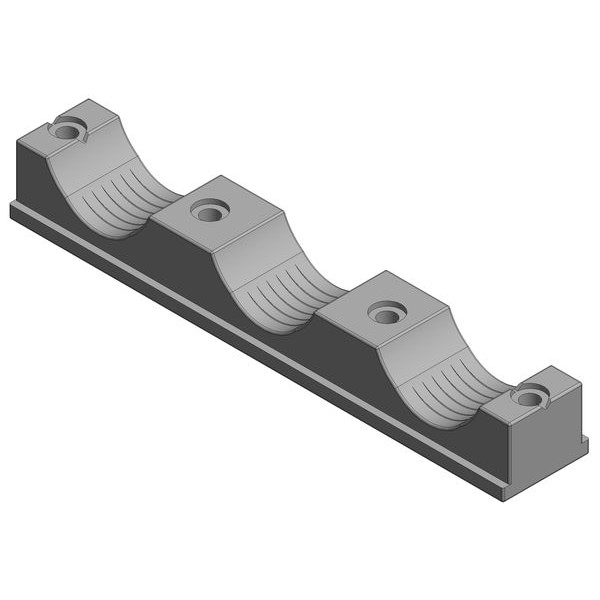

Cable clamp K342
2859390Cable clamp 3-cables Ø42-60mm. Half part without fasteners. Cable clamp rail have to be used on top as reinforcement. -

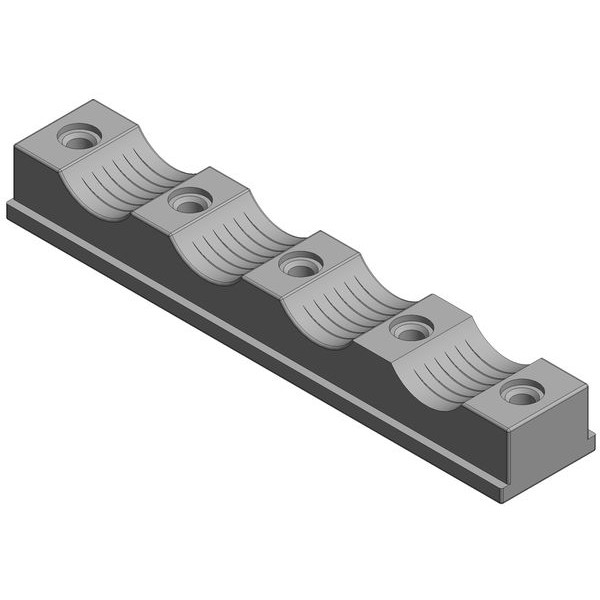

Cable clamp K422
2859391Cable clamp 4-cables Ø22-42mm. Half part without fasteners. Cable clamp rail have to be used on top as reinforcement. -
Cable clamp KS111
2859367Cable clamp 1-cable Ø11-17mm. Delievered with fasteners for use in M8 and M10 profile tracks. -
Cable clamp KS211
2859368Cable clamp 2-cables Ø11-17mm. Delievered with fasteners for use in M8 and M10 profile tracks. -
Cable clamp KSF122
2859335Cable clamp 1-cable Ø22-42mm. Reinforced version. Delievered with fasteners. -
Cable clamp KSF142
2859337Cable clamp 1-cable Ø42-60mm. Reinforced version. Delievered with fasteners. -
Cable clamp KSF160
2859334Cable clamp 1-cable Ø60-84mm. Reinforced version. Delievered with fasteners. -
Cable clamp KSF2122
2857806Cable clamp 1-cable Ø22-42mm. Reinforced version. Delievered with fasteners M8 -
Cable clamp KSF2142
2857807Cable clamp 2-cable Ø42-60mm. Reinforced version. Delievered with fasteners M8 -
Cable clamp KSF317
2859336Cable clamp 3-cables Ø17-42mm. Reinforced version. Delievered with fasteners. -
Cable clamp KSF322
2859357Cable clamp 3-cables Ø22-42mm. Reinforced version for 4 fasteners. Delivered with fasteners. -
Cable clamp KSF342
2859338Cable clamp 3-cables Ø42-60mm. Reinforced version. Delievered with fasteners. -
Cable clamp KSF422
2859358Cable clamp 4-cables Ø22-42mm. Reinforced version for 5 fasteners. Delievered with fasteners. -
Cable clamp KSF617
2859333Cable clamp 6-cables Ø22-42mm. Reinforced version. Delievered with fasteners. -
Cable clamp KSF622
2859366Cable clamp 6-cables Ø22-42mm. Reinforced version with clamps in 2 heights. Delievered with fasteners. -
Cable clamp KSF822
2859365Cable clamp 8-cables Ø22-42mm. Reinforced version with clamps in 2 heights. Delievered with fasteners. -
Cable clamp KSFF317
2859356Cable clamp 3-cables Ø17-42mm. Reinforced on both sides. Delievered with fasteners. -

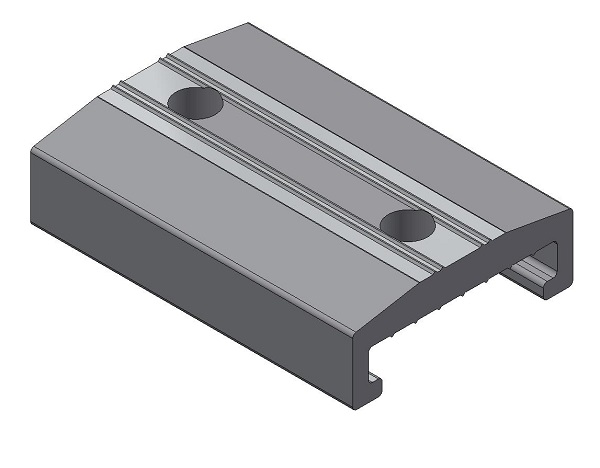

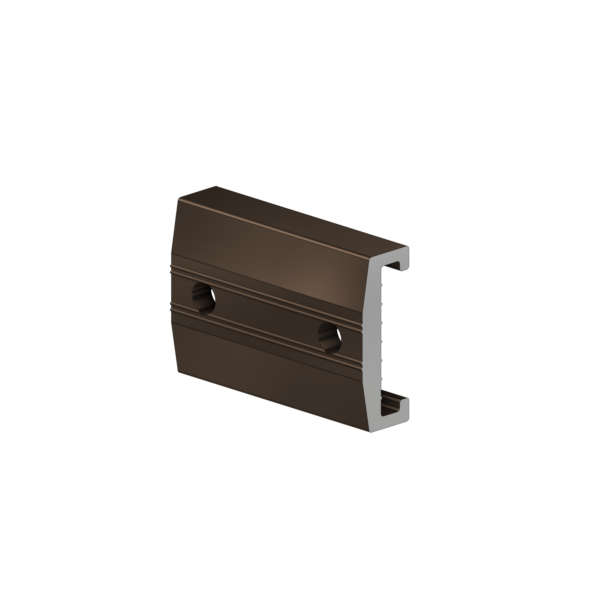

Cable clamp rail SF122
2859340Reinforcing rail for cable clamp K122. -

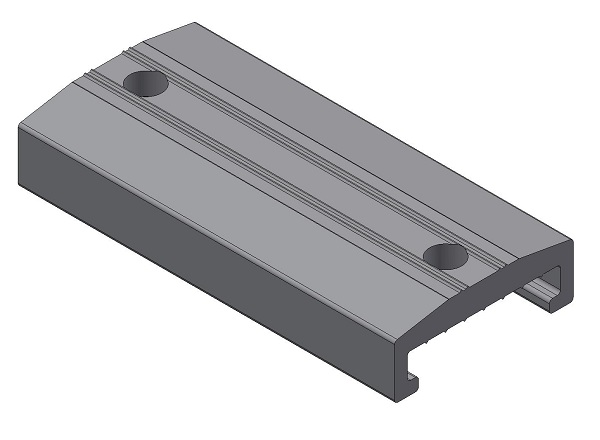

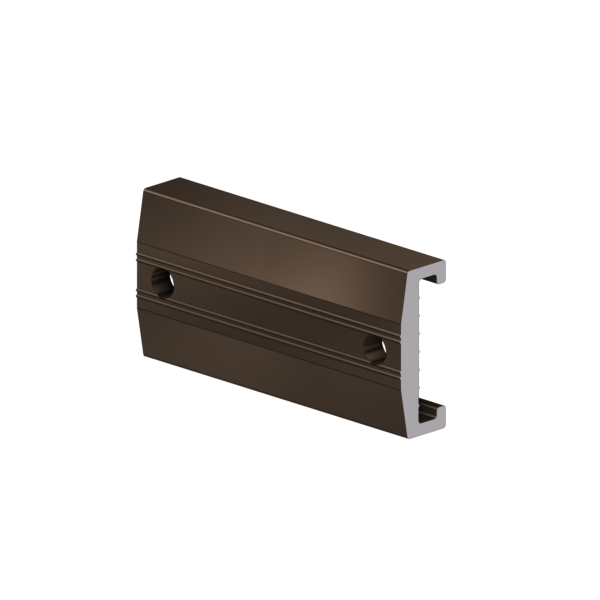

Cable clamp rail SF142-160
2859341Reinforcing rail for cable clamp K142 and K160. -

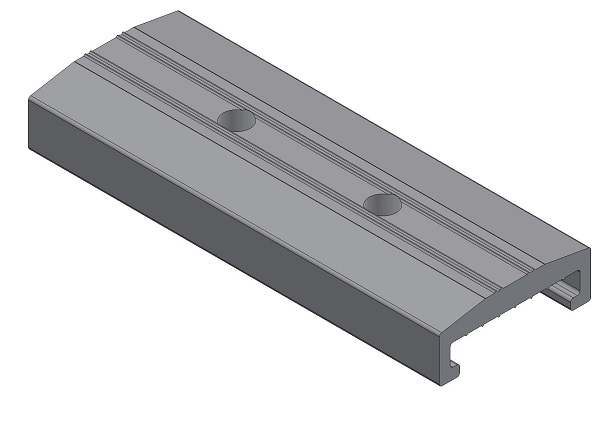

Cable clamp rail SF317
2859342Reinforcing rail for cable clamp K317. -

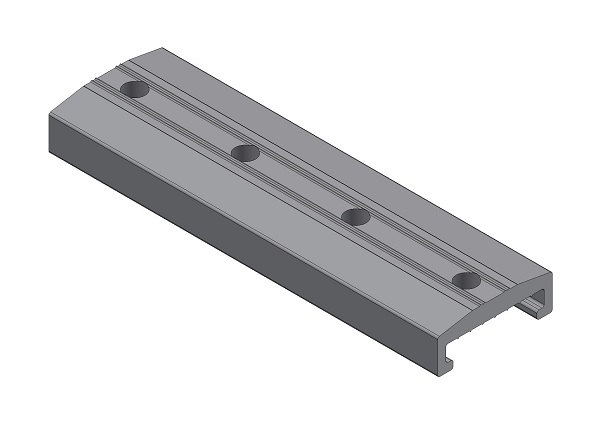

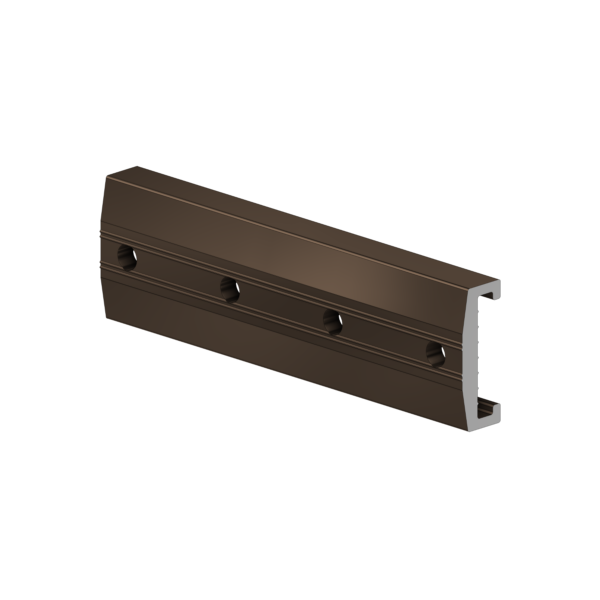

Cable clamp rail SF322
2859359Reinforcing rail for cable clamp K322. -

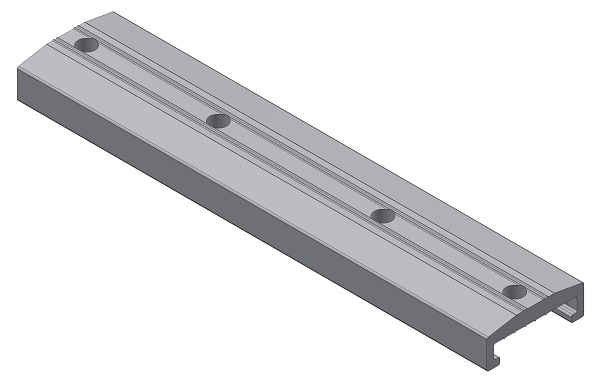

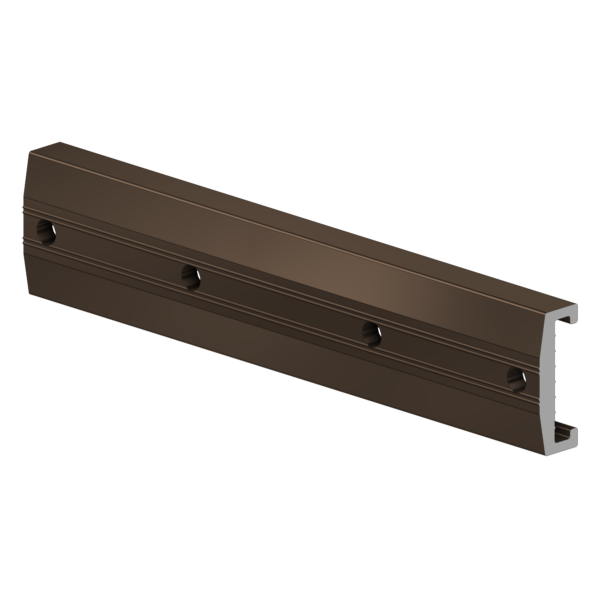

Cable clamp rail SF342
2859343Reinforcing rail for cable clamp K342. -

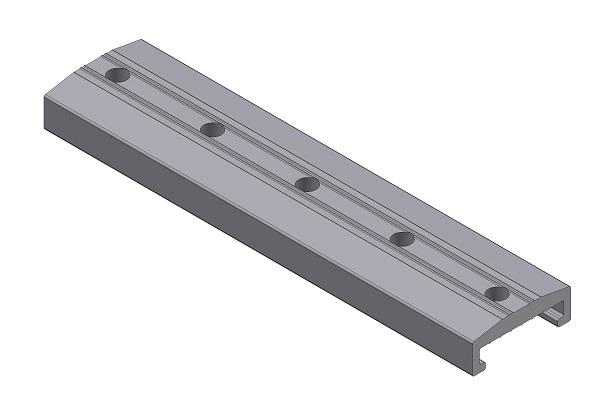

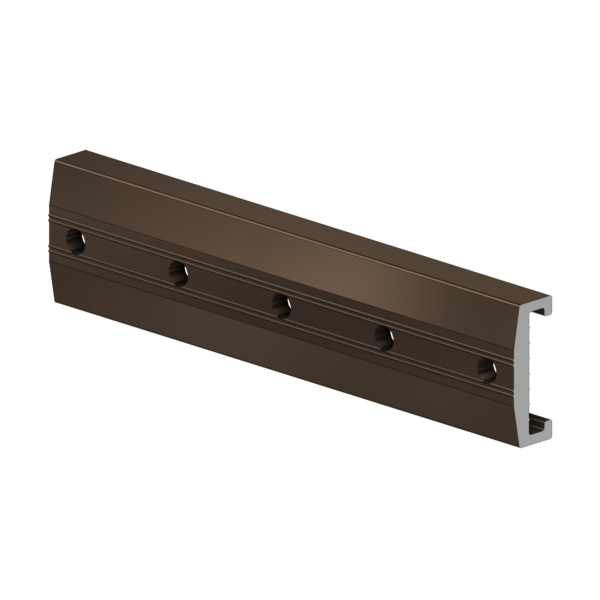

Cable clamp rail SF422
2859360Reinforcing rail for cable clamp K422. -

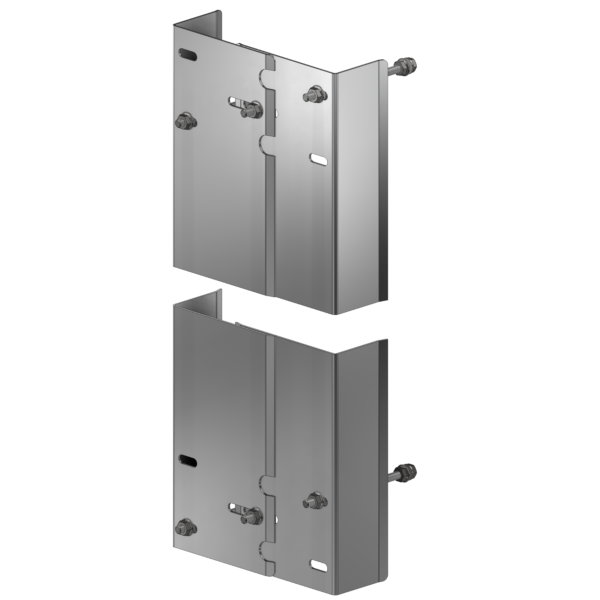

Cable cover KDA-HE200-280
2857800Cable guard, adjustable with: 169-245mm Delivered with festening screws for brackets. -
Cable duct KN12AV-22
2859459Cable duct with clamps. For 1 cable Ø22-42mm, length 2,6m, Wall-mounting. Non-magnetic backplate, recommended when using single core cable. -
Cable duct KN12AV-42
2859460Cable duct with clamps. For 1 cable Ø42-60mm, length 2,6m. For wall mounting. Non-magnetic back-cover, recommended when using single core cable. -
Cable duct KN12AV-60
2859461Cable duct with clamps. For 1 cable Ø60-84mm, length 2,6m. Wall-mounting. Non-magnetic backplate, recommended when using single core cable. -

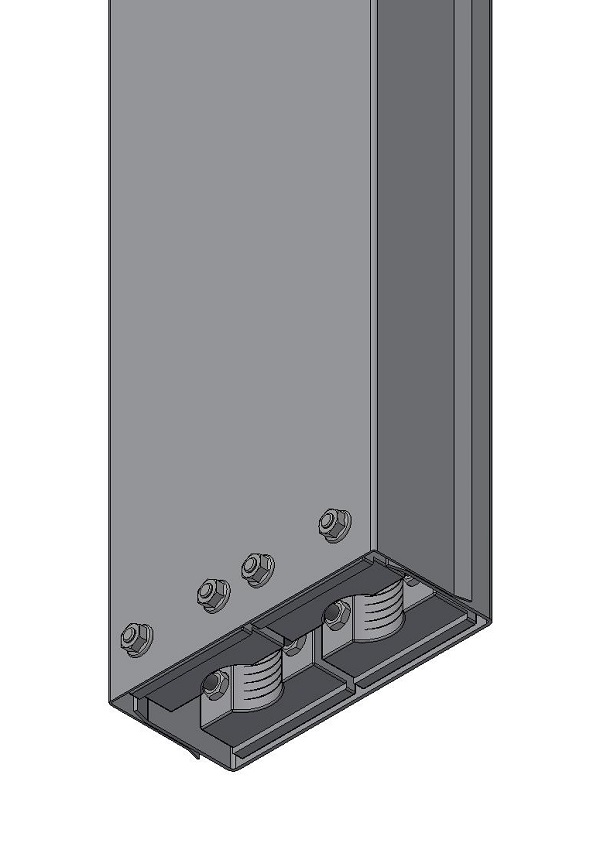

Cable duct KN22AV-22
2857808Cable duct with clamps. For 2 cables Ø22-42mm, length 2,6m Wall-mounting. Non-magnetic backplate, recommended when using single core cable. -

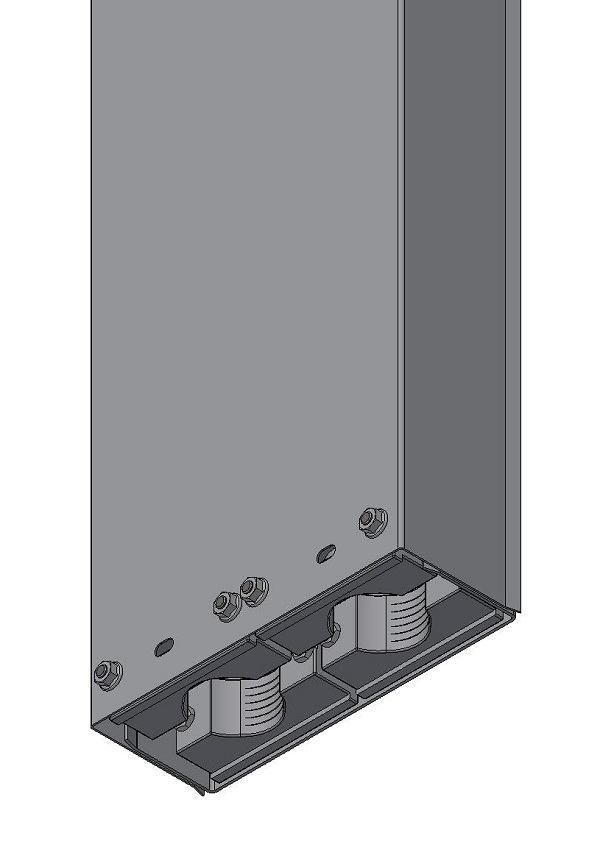

Cable duct KN22AV-42
2857809Cable duct with clamps. For 2 cables Ø42-60mm, length 2,6m Wall-mounting. Non-magnetic backplate, recommended when using single core cable. -
Cable duct KN32AV
2859462Cable duct with clamps. For 3 cables Ø17-42mm, length 2,6m. Wall-mounting. Non-magnetic backplate, recommended when using single core cable. -
Cable duct lengthening KN11FAV-22
2859318Cable duct lengthening. 1 cable Ø22-42mm, length 1,6m. Wall-mounting. Non-magnetic backplate, recommended when using single core cable. -
Cable duct lengthening KN11FAV-42
2859463Cable duct lengthening. 1 cable Ø42-60mm, length 1,6m. Wall-mounting. Non-magnetic backplate, recommended when using single core cable. -
Cable duct lengthening KN11FAV-60
2859464Cable duct lengthening. 1 cable Ø60-84mm, length 1,6m. Wall-mounting. Non-magnetic backplate, recommended when using single core cable. -
Cable guard KAN42A
2859406Cable guard with non-magnetic back cover. Ø45mm, lenght 2,6m. Can be mounted on wall or pole with distance brackets. -
Cable guard KAN52A
2857966Kabelvern med umagnetisk bakdeksel. Ø58mm, lenght 2,6m. Can be mounted on wall or pole with distance brackets. -
Cable guard KAN62A
2859414Cable guard with non-magnetic back cover. Ø65mm, lenght 2,6m. Can be mounted on wall or pole with distance brackets. -

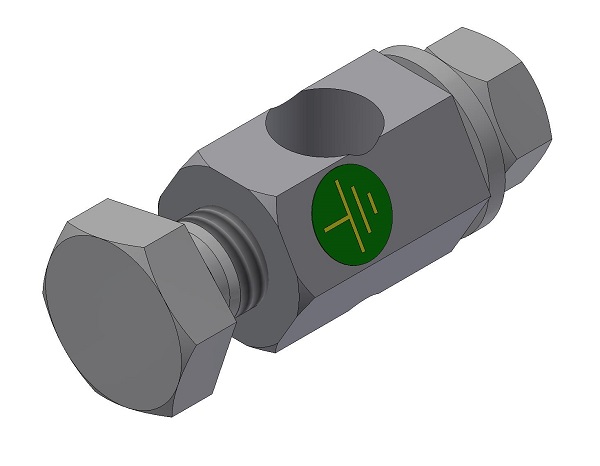

Earthing clamp J8
2859363Earthing clamp M8. For alu-profile tracks M8 (UNI-cabinet, cable- and surge arrester crossbars) For earth wire KHF25-50. -
Earthing clamp JKN
2859364Earthing clamp for copper wire 25-50mm2. For plate thickness 1-6mm. -
Fastening clip SA35
2859420Fastening clip for cable guard Ø35mm. Color brown. Includes screws. -

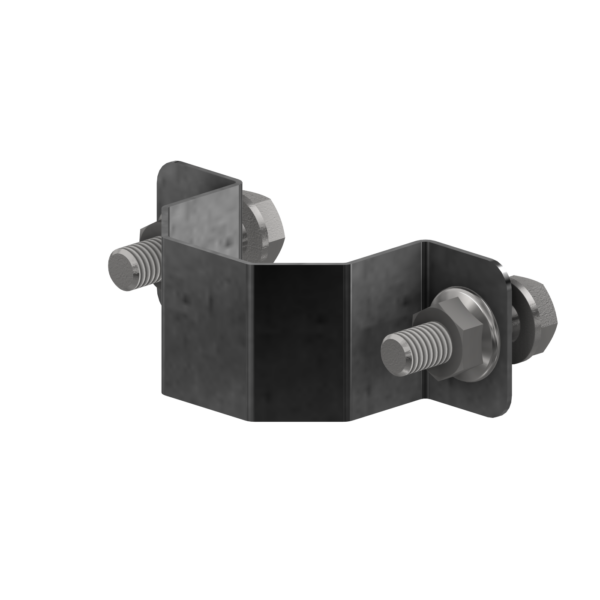

Fastening clip SA35V
2859418Fastening clip for cable guard Ø35mm. Color galvanized. Includes screws. -

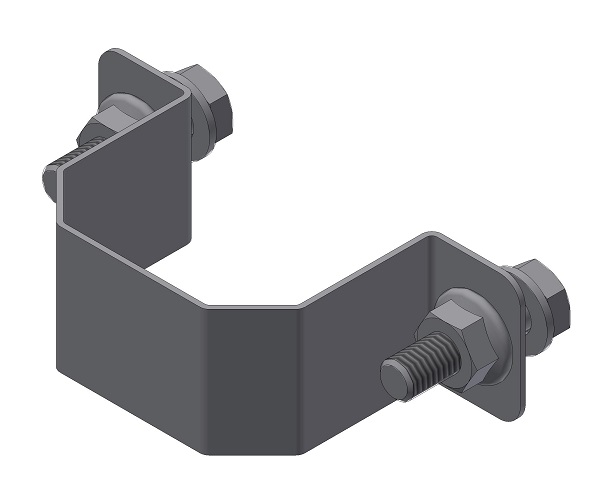

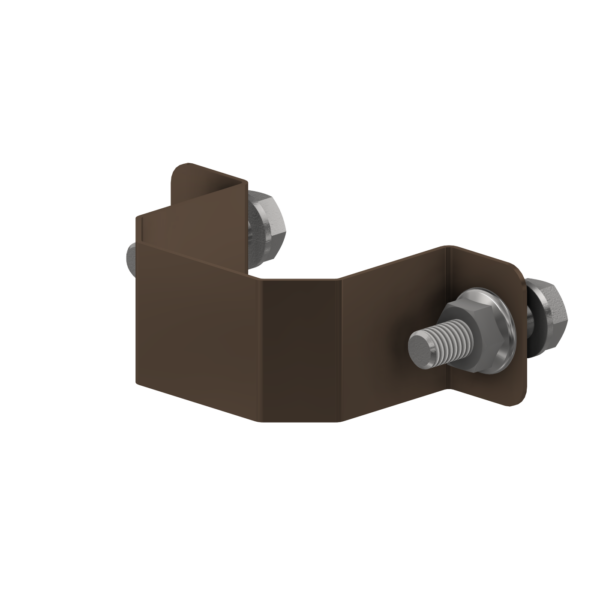

Fastening clip SA45
2859421Fastening clip for cable guard Ø45mm. Color brown. Includes screws. -

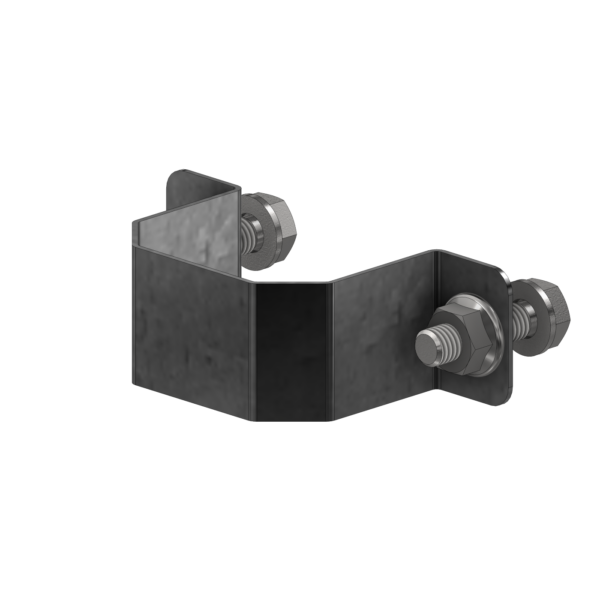

Fastening clip SA45V
2859408Fastening clip for cable guard Ø45mm. Color galvanized. Includes screws. -

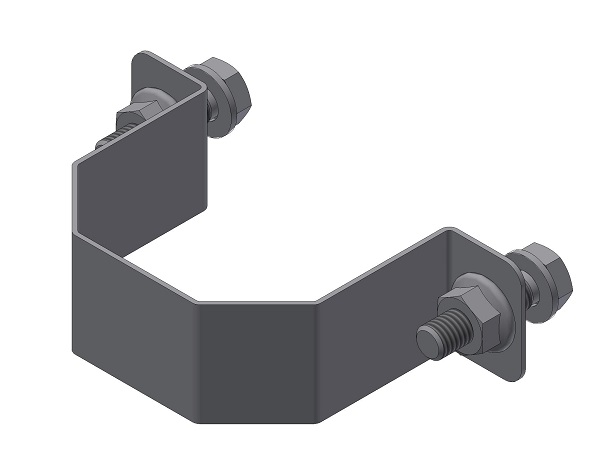

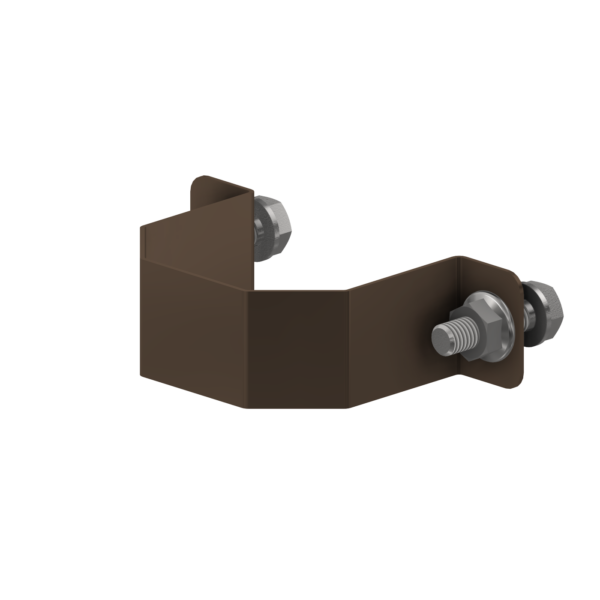

Fastening clip SA58
2859422Fastening clip for cable guard Ø58mm. Color brown. Includes screws. -
Fastening clip SA58V
2859409Fastening clip for cable guard Ø58mm. Color galvanized. Includes screws. -

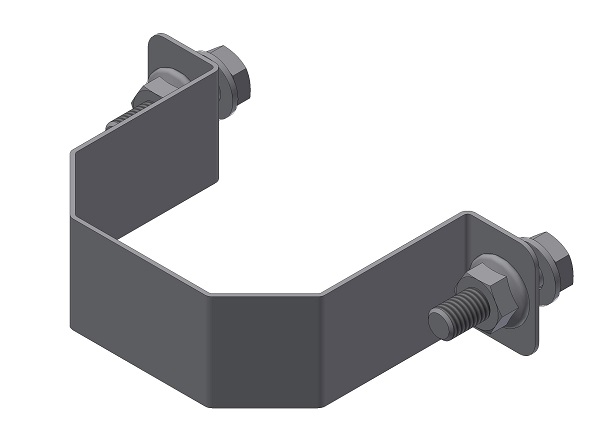

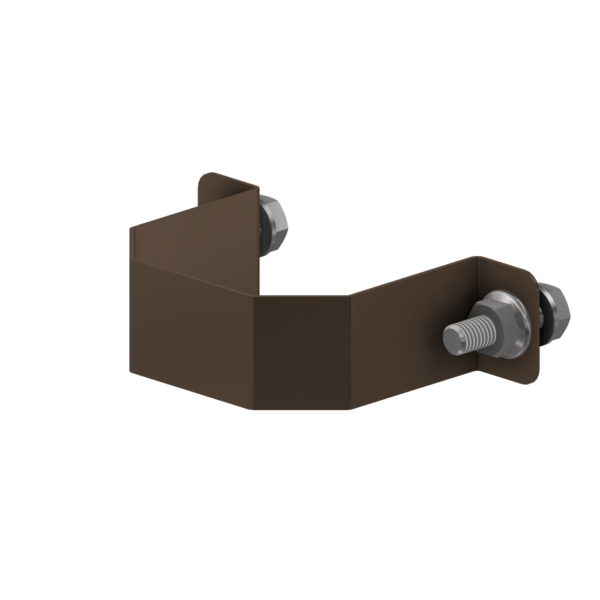

Fastening clip SA65
2859423Fastening clip for cable guard Ø65mm. Color brown. Includes screws. -

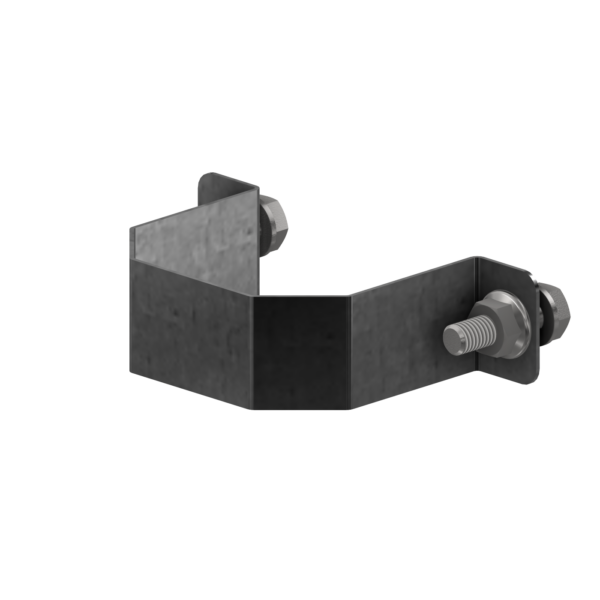

Fastening clip SA65V
2859410Fastening clip for cable guard Ø65mm. Color galvanized. Includes screws. -

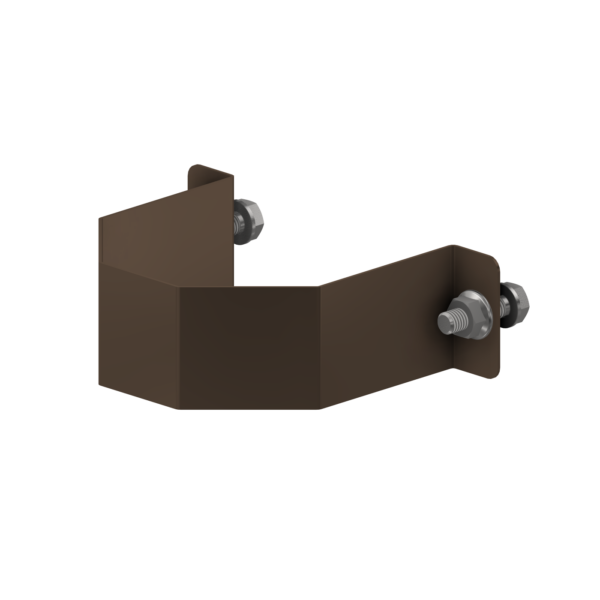

Fastening clip SA92
2859424Fastening clip for cable guard Ø92mm. Color brown. Includes screws. -

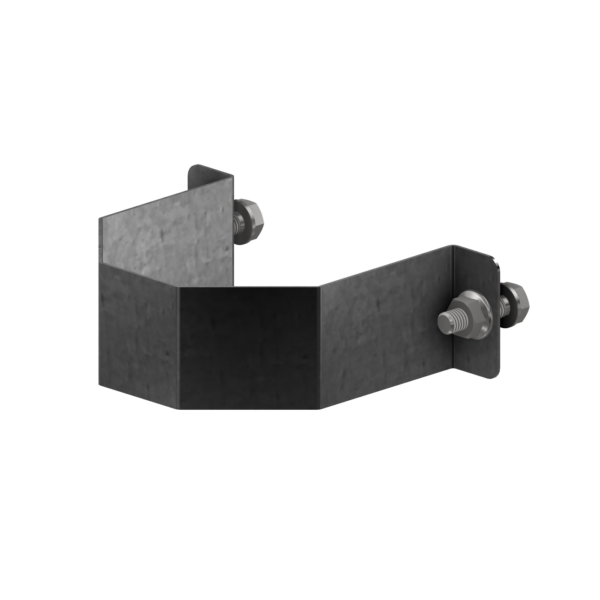

Fastening clip SA92V
2859411Fastening clip for cable guard Ø92mm. Color galvanized. Includes screws. -

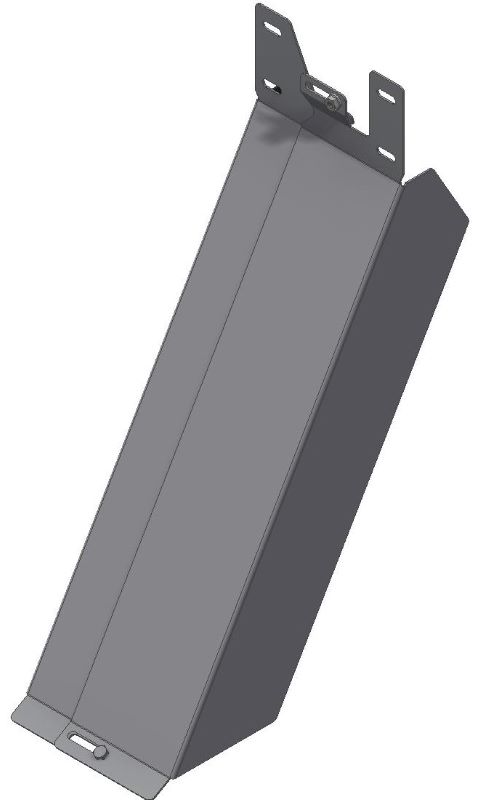

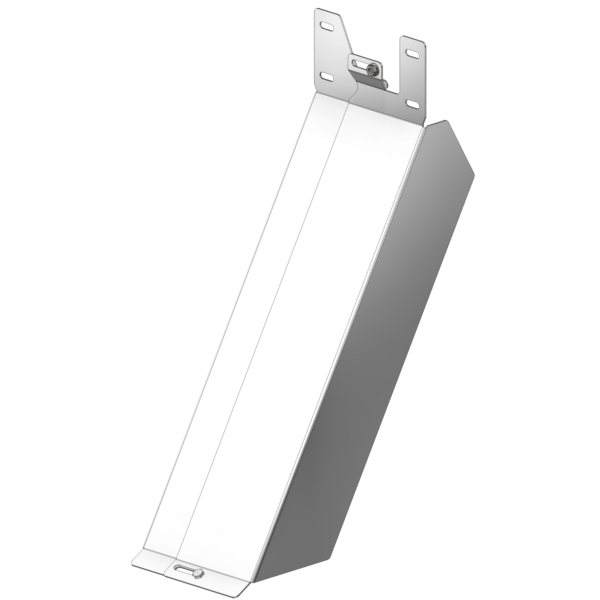

Ground protection BK-HE200-280
2857803Ground protection. Adjusteble width: 169-245mm Used in HEB and HEM-profiled mast. -
Ground protection BKF180
2859330Ground protection. B=185mm. Flexible. -

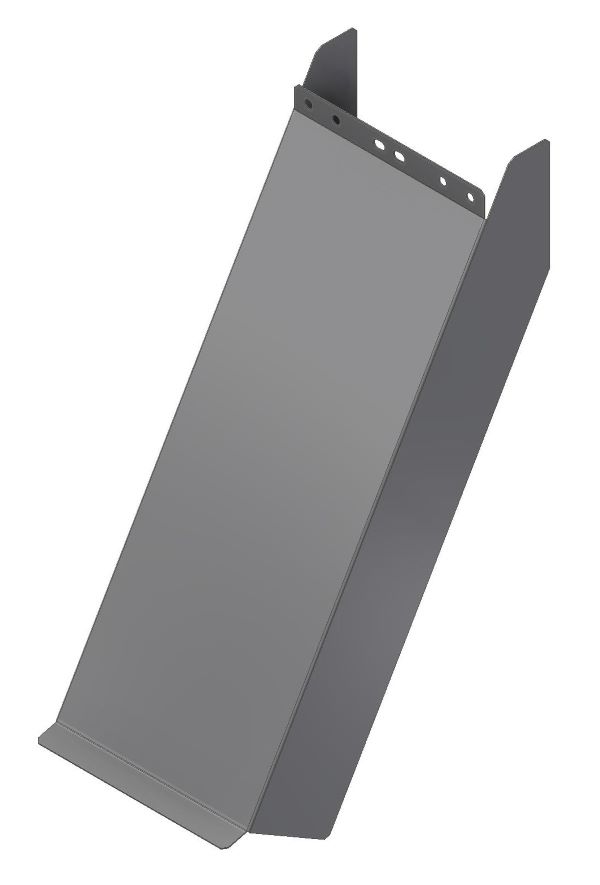

Ground protection BKF250
2859327Ground protection. B=250mm. Flexible. -

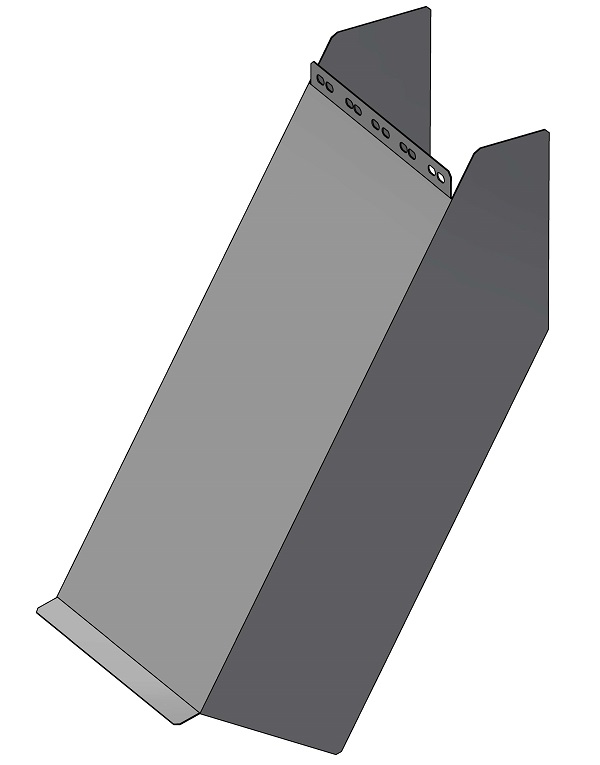

Ground protection BKF293
2859332Ground protection. B=293mm. Flexible. -
Ground protection BKV18
2859452Ground protection. W=178mm. Wallmounting. Non-magnetic back cover to avoid induced currents from cable. -

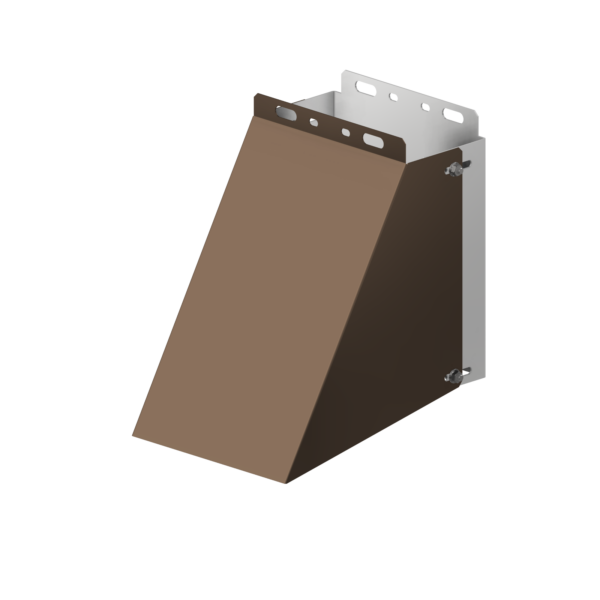

Ground protection BKV22
2859453Ground protection. W=243mm. Wallmounting. Non-magnetic back cover to avoid induced currents from cable. -

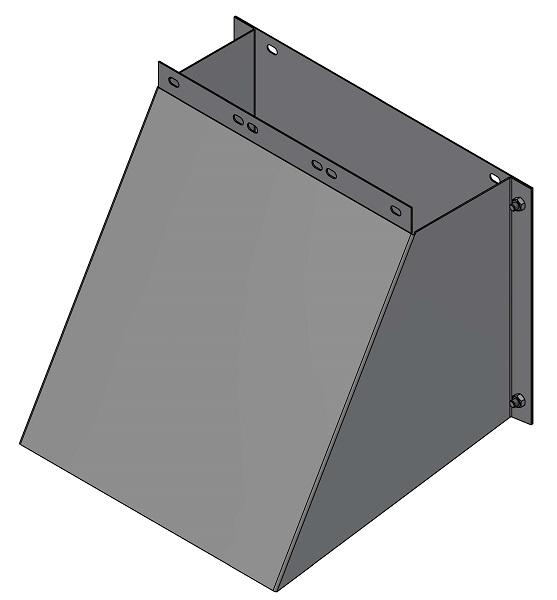

Ground protection BKV375
2859497Ground protection. W=375mm. Wallmounting. -

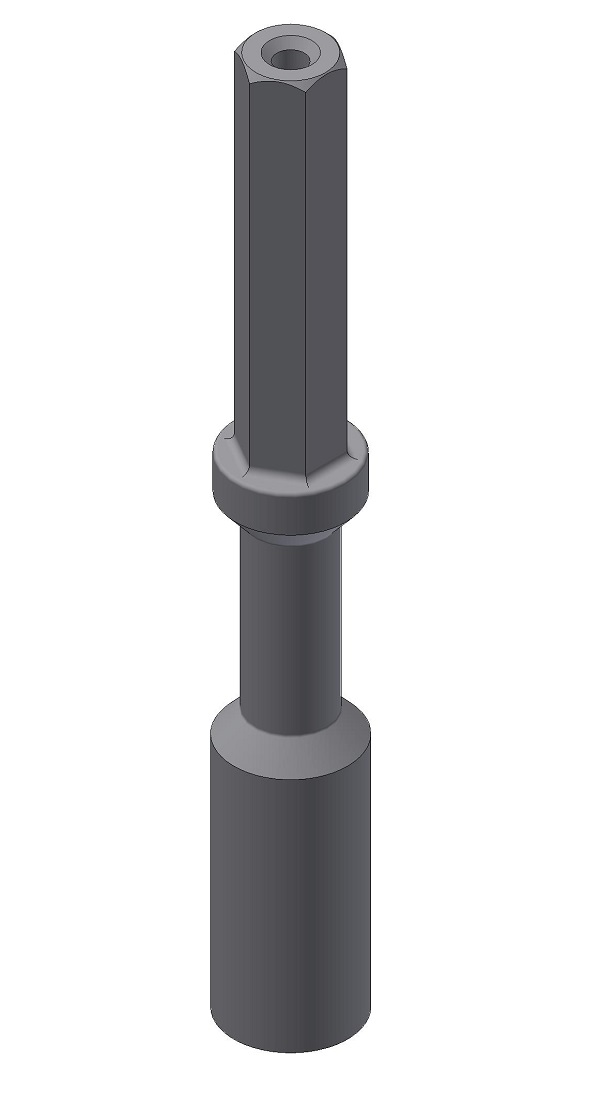

Intermediate piece MS-7/8
1262571Adapter for mountain borings machine and eathing system. For 7/8" connection. Used to knock down earthing spear-earthing pipes -

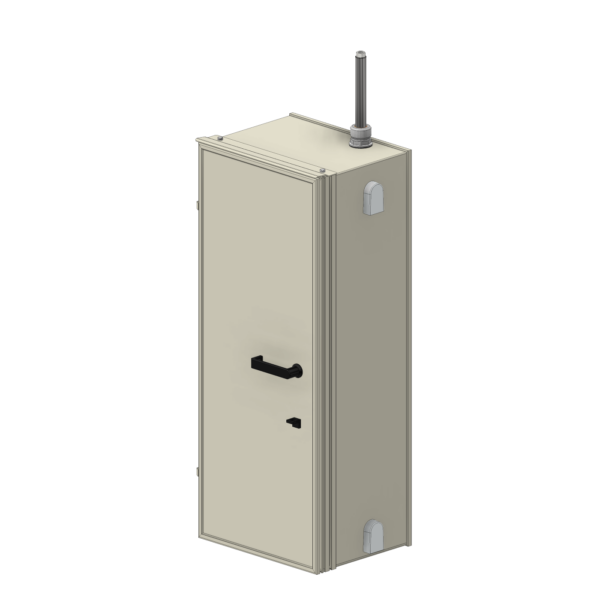

Motordrive BL-24-230-J-IN-S-AL392
2836396Outdoor Motordrive for railway applications. With 110VDC/230VAC - 24V power supply unit. Downward movement for breaker connect. Aluminium cabinet 370x920x300mm. -
Motordrive BL24-230-J-IO-S-AL392
2836397Outdoor Motordrive for railway applications. With 110VDC/230VAC - 24V power supply unit. Upward movement for breaker connect. Aluminium cabinet 370x920x300mm. -

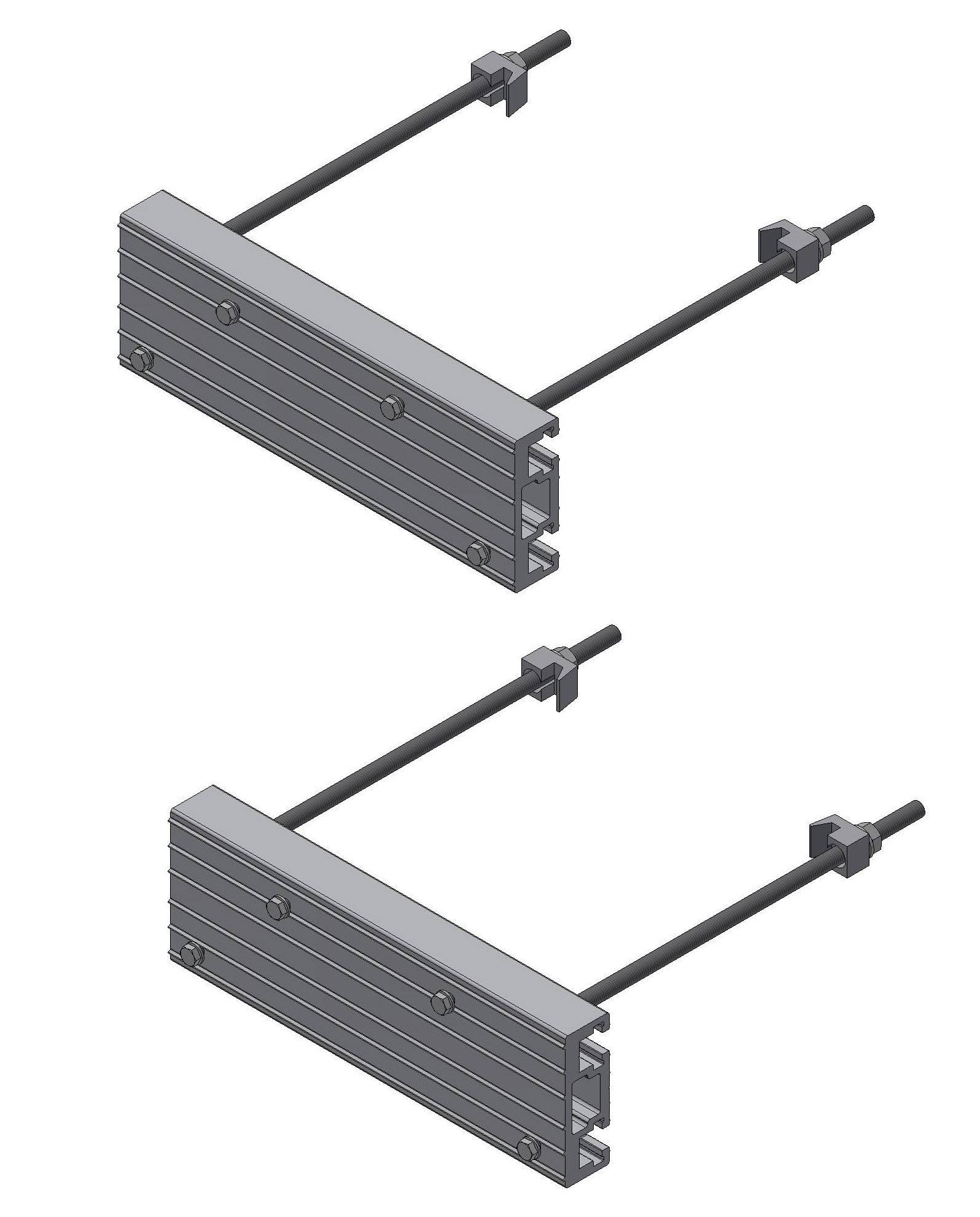

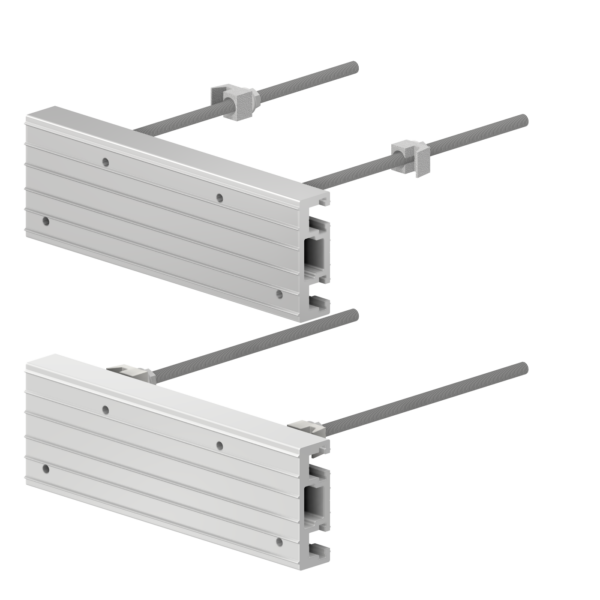

Mounting kit for HEB-pole – AL-HEB
2836497Kit for mounting Motordrive Aluminium cabinets onto a HEB-pole. Adjustable for different pole sizes. -

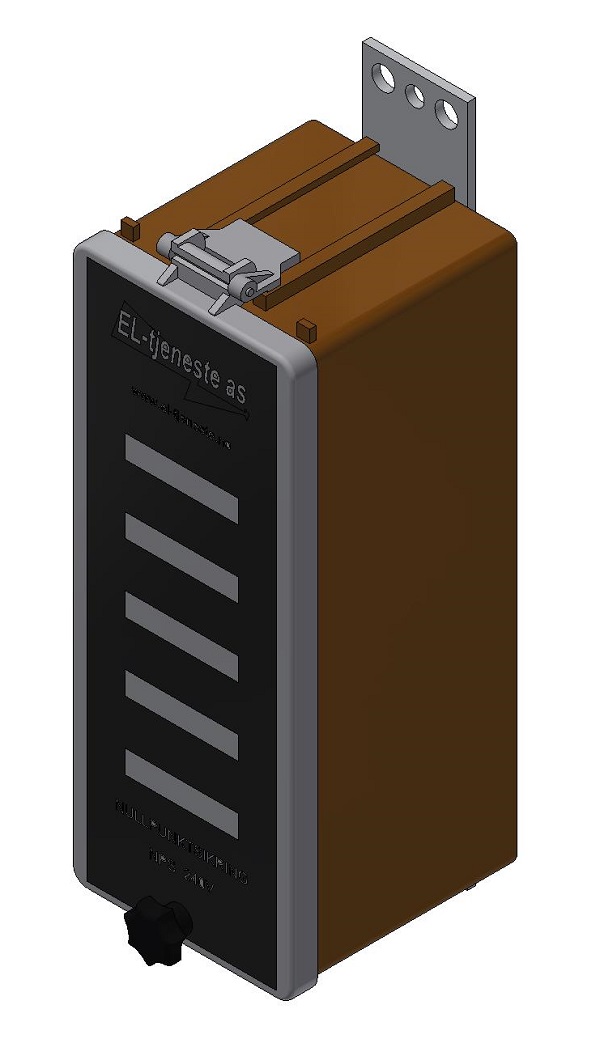

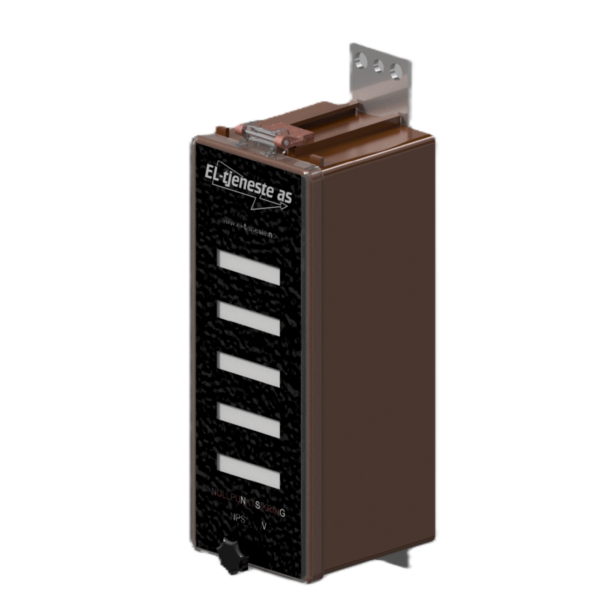

Neutral point surge arrester NPS240S-V-K
2864772Transformer neutral point overvoltage protection for 240V IT distribution grid. Can be used as Voltage limiter device (VLD) for railway applications. With signal contactor and mountingbracet for walls. Cabletermination with cable lug. For cross-section >50mm2. -
Neutral point surge arrester NPS400-V-KS
2864774Transformer neutral point overvoltage protection for 400V IT distribution grid. Can be used as Voltage limiter device (VLD) for railway applications. With signal contactor and mountingbracet for walls. Cabletermination with cable lug. For cross-section >50mm2. -
Neutral point surge arrester NPS690S-V-K
2864775Transformer neutral point overvoltage protection for 690V IT distribution grid. Can be used as Voltage limiter device (VLD) for railway applications. With signal contactor and mountingbracet for walls. Cabletermination with cable lug. For cross-section >50mm2. -

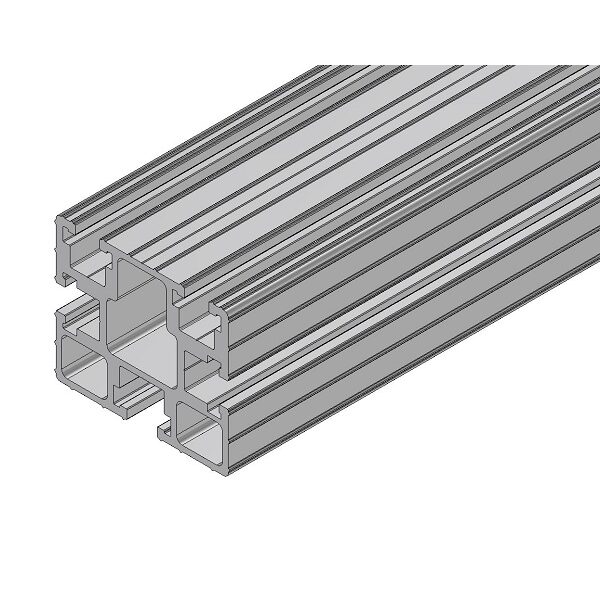

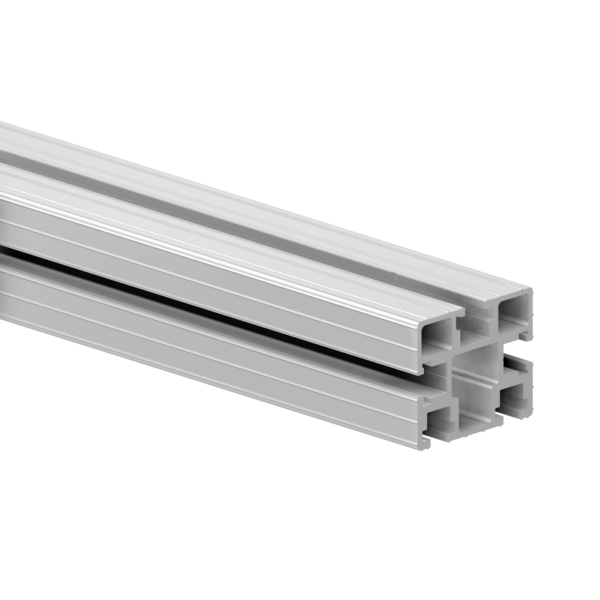

UNI-profile UP1012-12
2837454Universal profile- Length 1,2m. With tracks for mounting of equipment SUP washer fitting the screw diameter is used in the tracks -
UNI-profile UP1012-20
2837455Universal profile- Length 2m With tracks for mounting of equipment SUP washer fitting the screw diameter is used in the tracks -
UNI-profile UP1012-60
2837457Universal profile- Length 6m With tracks for mounting of equipment SUP washer fitting the screw diameter is used in the tracks -
UNI-Rail UNI-412-L3
2837467Straight aluminiumsprofil with two tracks for equipment SUP washer fitting the screw diameter is used in the tracks Lenght 3m with slots for attachment -

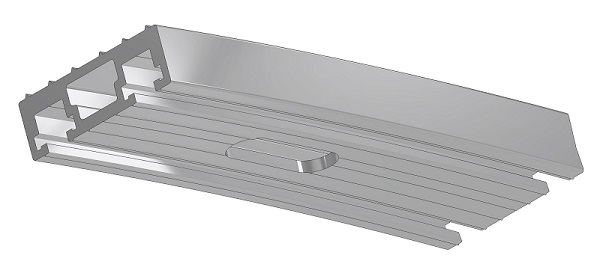

UNI-Rail UNI-R-412-L3
2837468Curved aluminiumsprofil with two tracks for equipment SUP washer fitting the screw diameter is used in the tracks Lenght 3m with slots for attachment Curving radius must be stated -

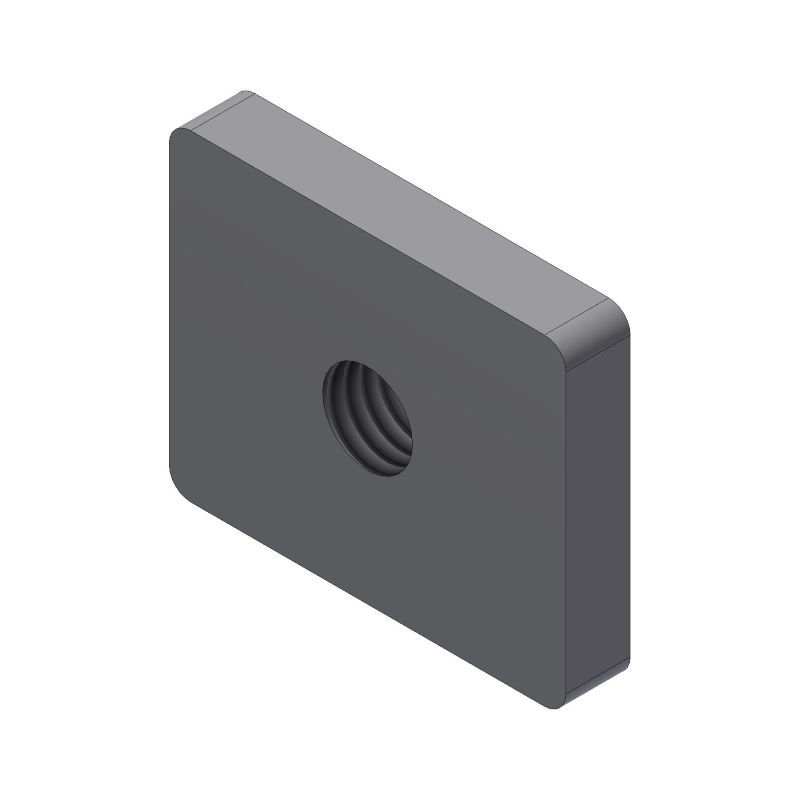

Washer SUP10 M10 A4
2837463Nut-washer with M10 threads Used in track on aluminiumprofile UP1012 and UNI-Rail, for connecting attachments. -

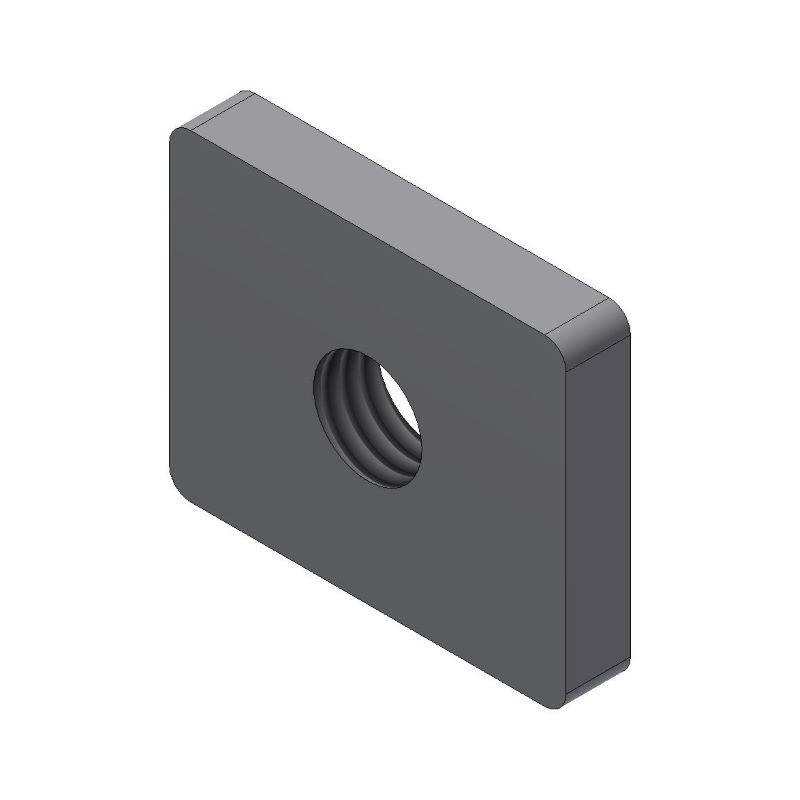

Washer SUP12 M12 A4
2837464Nut-washer with M12 threads Used in track on aluminiumprofile UP1012 and UNI-Rail, for connecting attachments. -

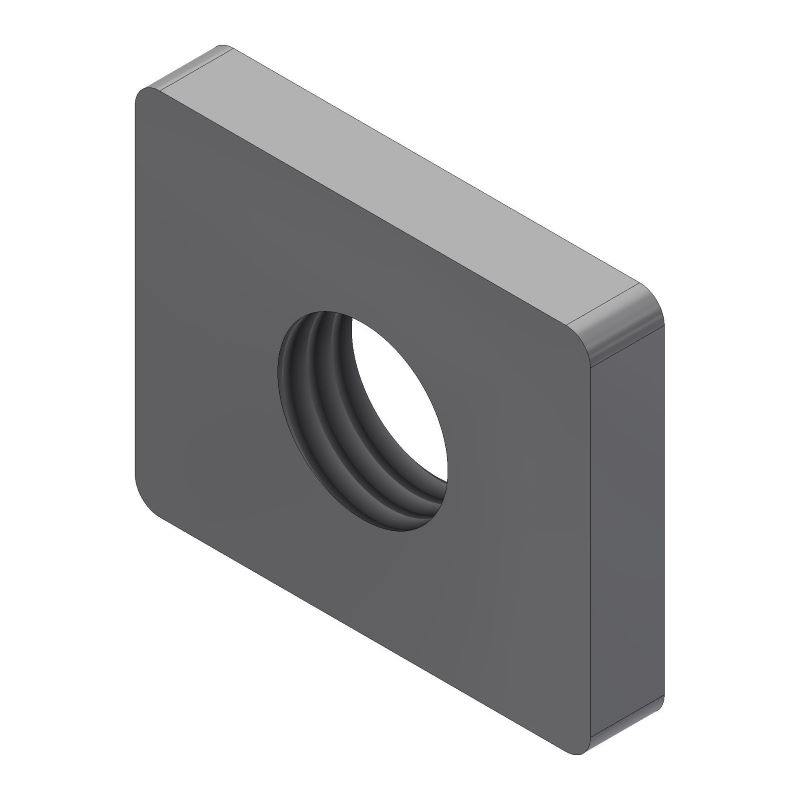

Washer SUP16 M16 A4
2837465Nut-washer with M16 threads Used in track on aluminiumprofile UP1012 and UNI-Rail, for connecting attachments. -

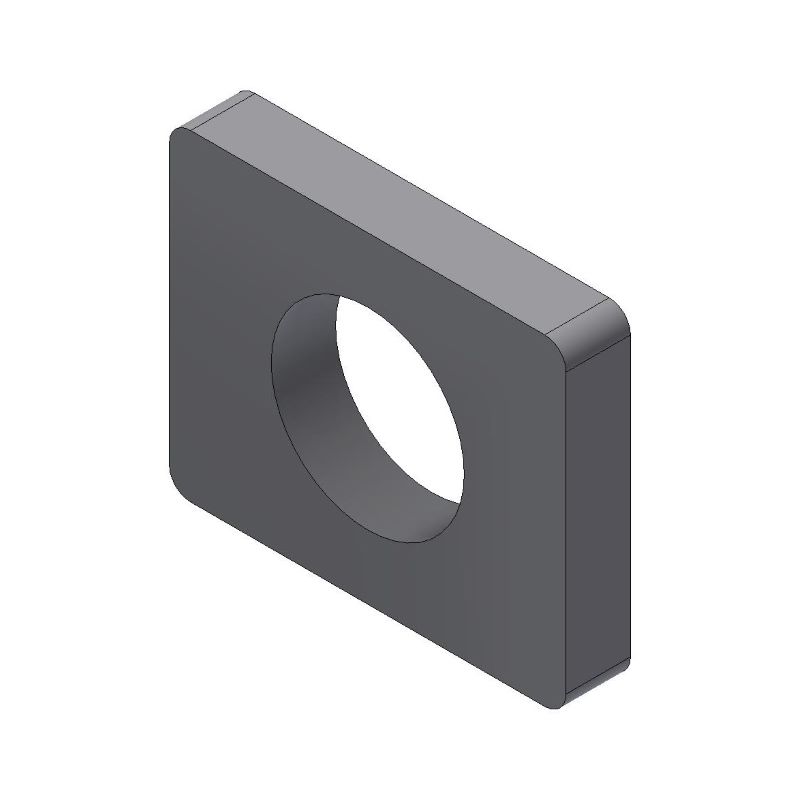

Washer SUP18H
2837485Washer with 18mm hole Used in combination with M16 hex head bolt in track on aluminiumprofile UP1012 and UNI-Rail, for connecting attachments. -

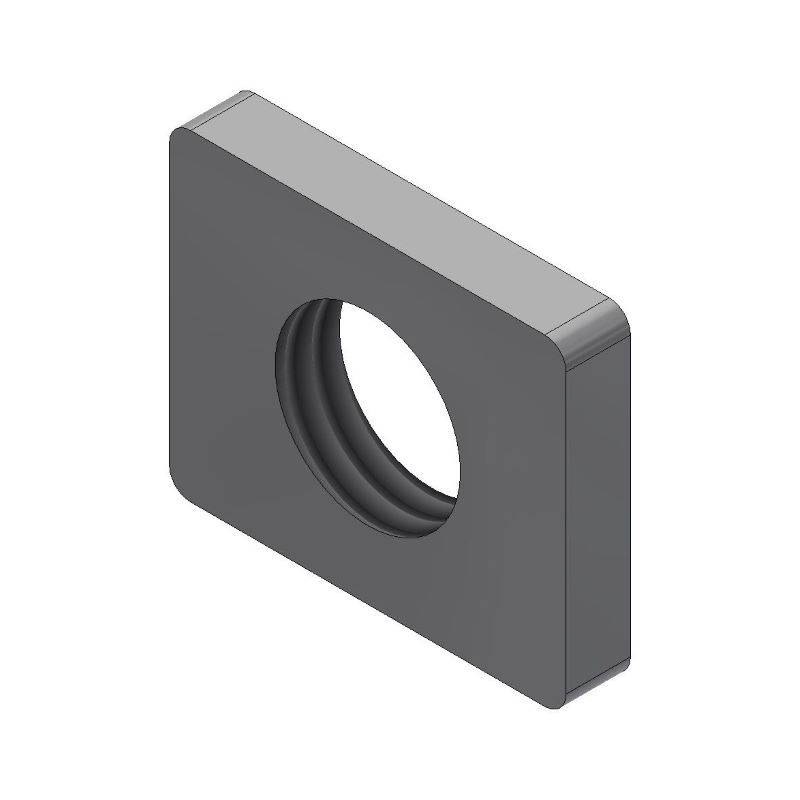

Washer SUP20 M20 A4
2837466Nut-washer with M20 threads Used in track on aluminiumprofile UP1012 and UNI-Rail, for connecting attachments. -
Washer SUP8 M8 A4
2837462Nut-washer with M8 threads Used in track on aluminiumprofile UP1012 and UNI-Rail, for connecting attachments.
